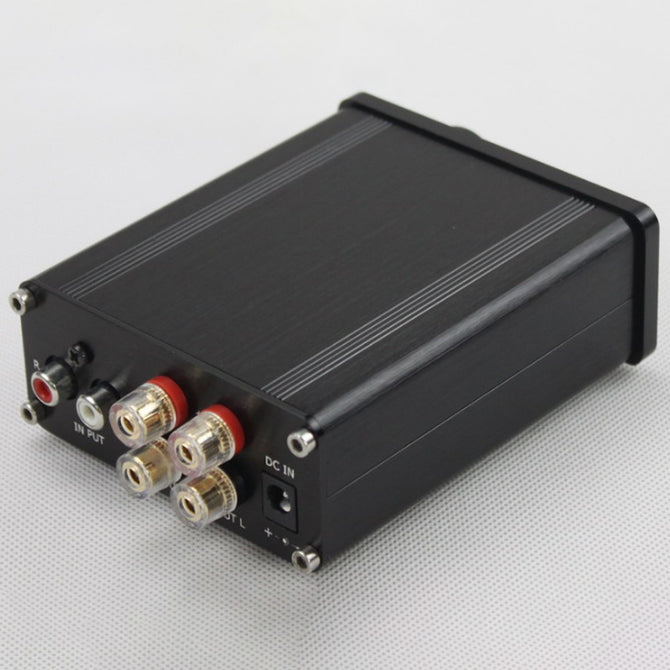

TPA3116 330UF / 35V HiFi Class D Audio Digital Power Amplifier, Mini Home Aluminum Enclosure Amplifier Black

TPA3116 330UF / 35V HiFi Class D Audio Digital Power Amplifier, Mini Home Aluminum Enclosure Amplifier Black

US$ 26.58 US$ 33.82

: In stock

: 563579

Product Description Special Features: - Material Type: Metal Item Weight: 0.3 Item Size: - Audio Sensitivity: - Signal To Noise Ratio: - Impedance: - Frequency Range (Hz): 20Hz--20KHz Out Power:...
Product Description
Special Features: - Material Type: Metal
Item Weight: 0.3 Item Size: -
Audio Sensitivity: - Signal To Noise Ratio: -
Impedance: - Frequency Range (Hz): 20Hz--20KHz
Out Power: 100W Model Name: TPA3116
Color Name: Black Audio Encoding: Stereo

product details:

n Original TPA3116



n Power filter capacitors use imported 330UF/35V and Japanese Panasonic electrolytic capacitors



n The main circuit of electrolytic capacitor signal adopts Taiwan famous brand, and the main filter capacitor adopts imported Sanying electrolytic capacitor to ensure strong and continuous power support.



n The resistor uses a five-ring metal resistor, and the main circuit uses a five-ring metal film resistor with an accuracy of ¡À1% to ensure a good signal-to-noise ratio.



n PCB uses 1.6mm thick double-sided sheet, 2.0 oz copper thickness, spray tin full process, to ensure good passing performance of large and small current. First-class PCB quality.

.

n The red-grey ring is used for special power discharge to ensure the sound is crisp and powerful.



Basic parameters:

1. Working method: Class D

2. Quiescent current: 50mA

3. Work efficiency: 90%

4. Rated output power: 2*50W

5. Frequency response: 20Hz to 20KHz

6. Working voltage: DC18V to DC24V

7. Maximum output current: 3A
