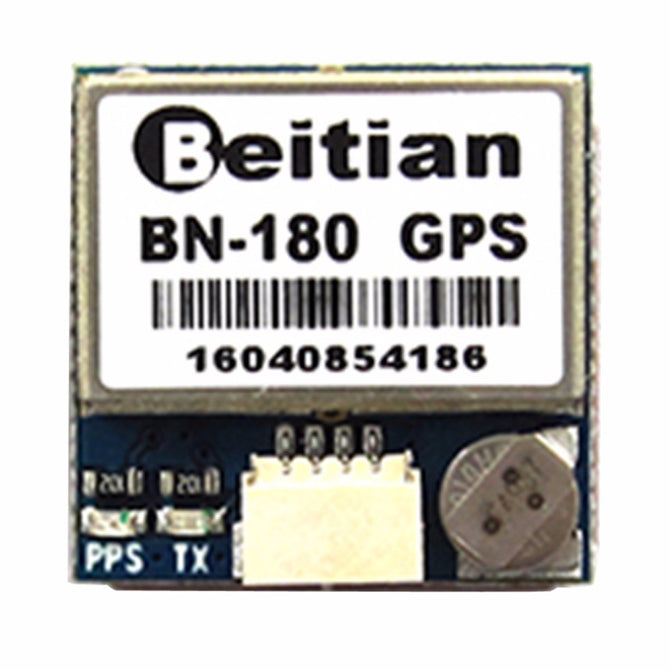

Small Size GPS Module,GPS GLONASS Dual, CC3D NAZE32 Solution,GNSS Module,GPS Module,UART TTL Level,BN-180 Blue

Parameter

Specification

Electrical Characteristics

Chipset

u-blox M8030-KT

Receiving Format

GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS

Frequency

GPS L1£¬GLONASS L1£¬BeiDou B1£¬SBAS L1£¬Galileo E1

Channels

72 Searching Channel

Sensitivity

Tracking

-167dBm

Reacquisition

-160dBm

Cold start

-148dBm

Hot start

-156dBm

Accuracy

Position Horizontal

2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)

Velocity

0.1m/sec 95% (SA off)

Timing

1us synchronized to GPS time

Acquisition Time

Cold Start

26s

Warm start

25s

Hot start

1s

Data and Update Rate

Support Rate

4800bps to 921600bps,Default 9600bps

Data Level

TTL or RS-232,Default TTL level

Data Protocol

NMEA-0183 or UBX, Default NMEA-0183

Single GNSS

1Hz-18Hz

Concurrent GNSS

1Hz-10Hz,Default 1Hz

Operational Limits

Altitude

50,000m Max

Velocity

515m/s Max

Acceleration

Less than 4g

Power consumption

VCC

DC Voltage 3.0V-5.5V,Typical: 5.0V

Current

Capture 50mA/5.0V

Mechanical Specifications

Dimension

18mm*18mm*6mm

Weight

4.9g

Connector

1.00mm spacing between the 4pins patch seat

Environment

Operating temp

-40 ¡ãC ~ +85¡ãC

Storage Temp

-40¡ãC ~ +105¡ãC

LED

built-in LED

TX LED:blue.The data output, TX LED flashing

PPS LED:red.PPS LED not bright when GPS not fixed,flashing when fixed
