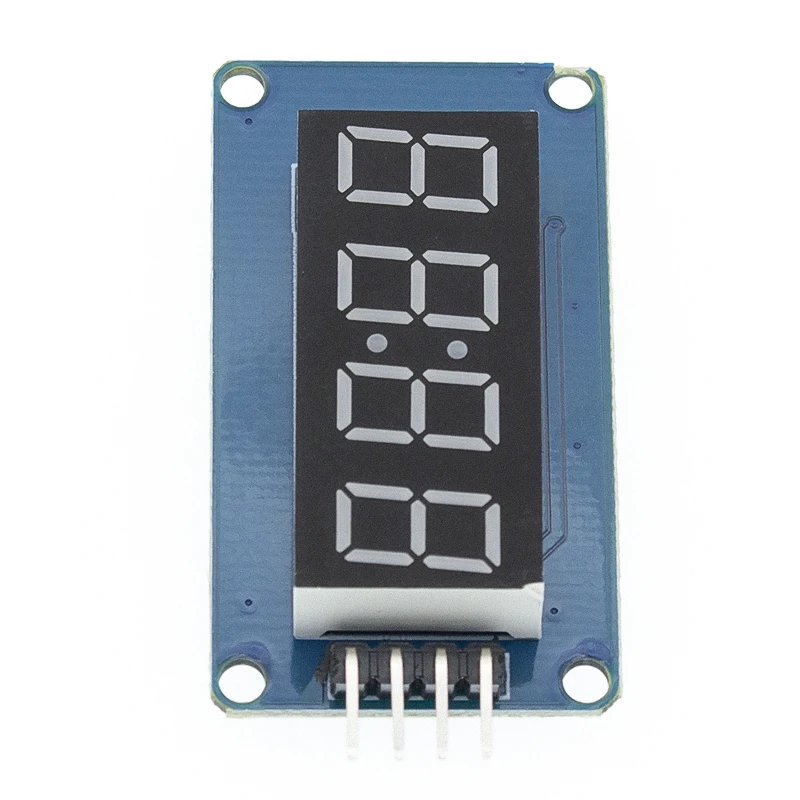

TM1637 4 Bits Digital LED Display Module For arduino 7 Segment 0.36Inch Clock RED Anode Tube Four Serial Driver Board Pack
US$ 0.60
: In stock
: 32645208283
The module is a 12-foot clock with 4 points of positive digital (0.36 inches) display module driver IC TM1637, only two signal lines can make SCM four 8-segment LED....
Share:
- The module is a 12-foot clock with 4 points of positive digital (0.36 inches) display module driver IC TM1637, only two signal lines can make SCM four 8-segment LED.
- Module features are as follows:
- Display of male red for the four digital tube
- Adjustable digital tube 8 gray
- Level control interface for 5V or 3.3V
- 4 M2 screws positioning holes for easy installation
- 4 digital display interface module as shown below:
- Control Interface: A total of four pins (GND, VCC, DIO, CLK), GND to ground, VCC is the power supply, DIO of data input and output pin, CLK is the clock signal pin;
- Digital tube: 4 common anode score points with 0.36 inches LED, red highlights;
- Positioning holes: 4 M2 screws positioning hole diameter is 2.2mm, the positioning of the module is easy to install, to achieve inter-module combination
-
