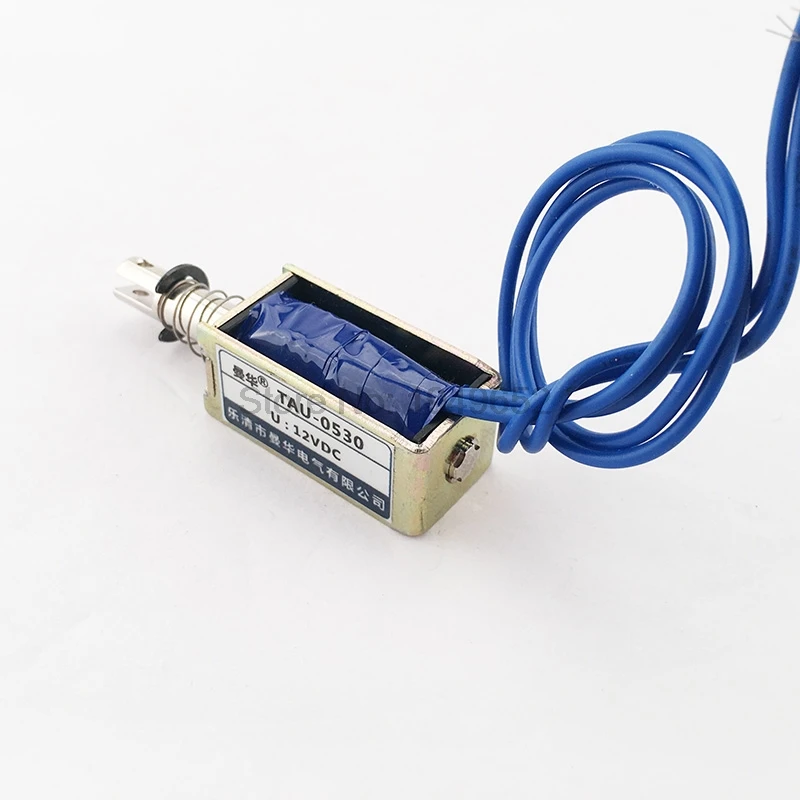

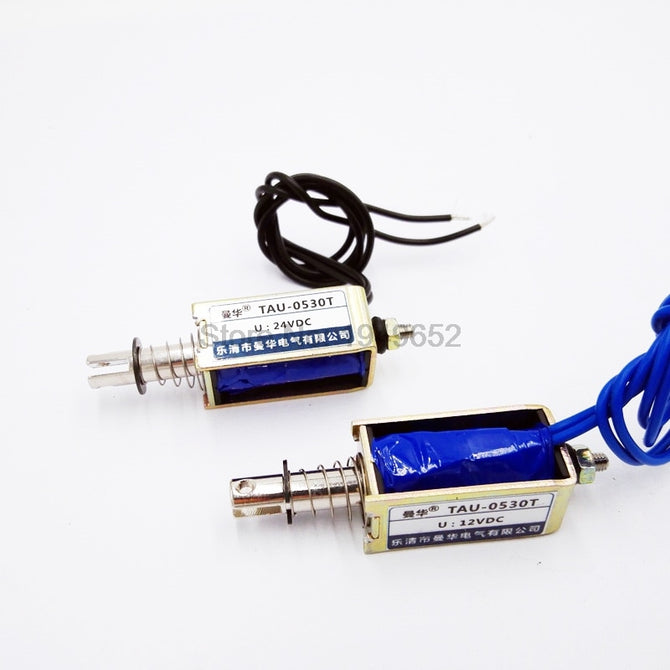

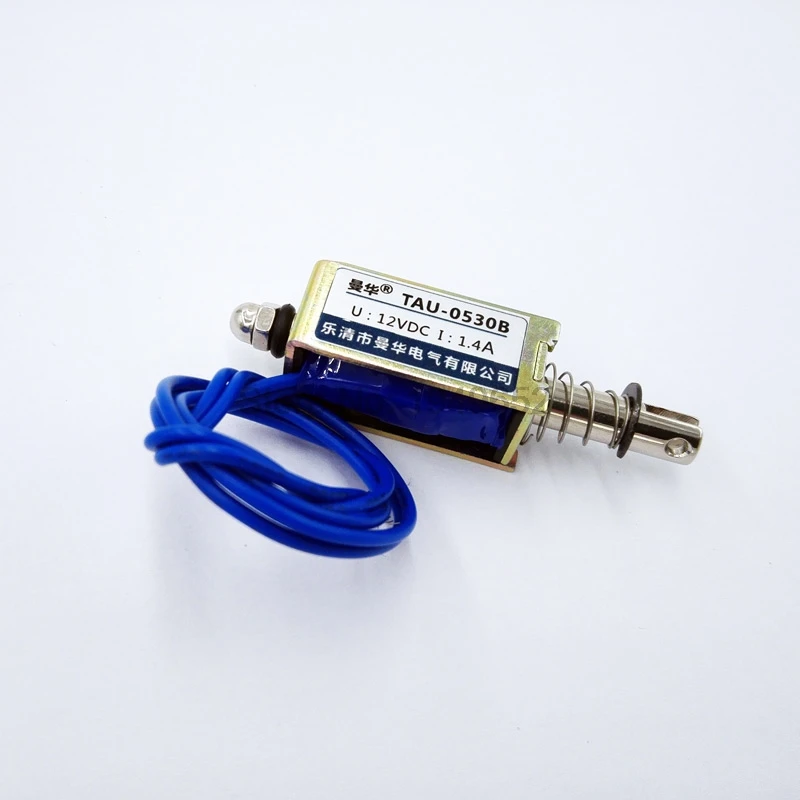

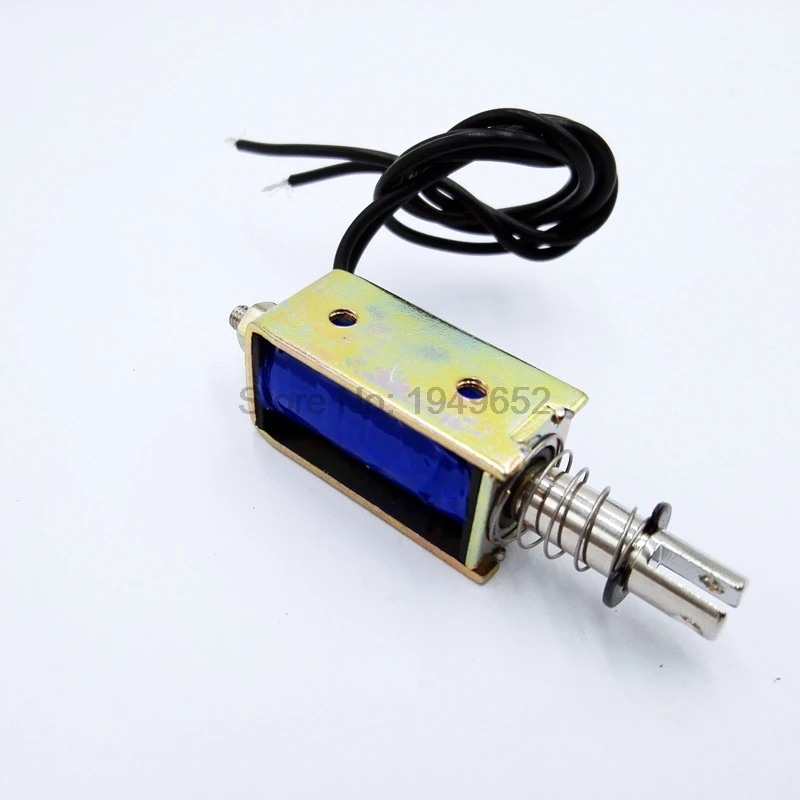

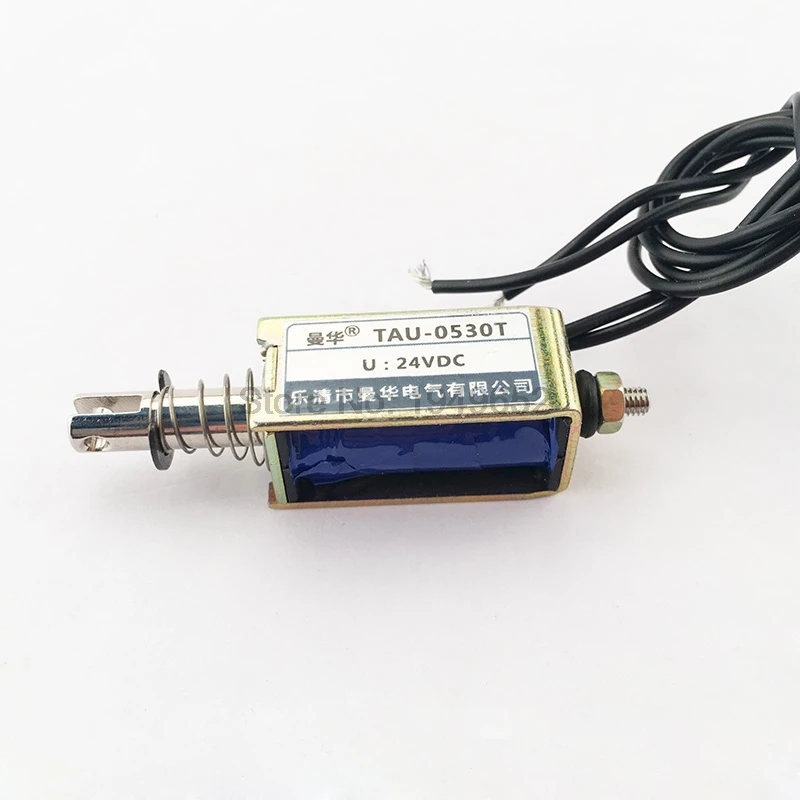

TAU-0530 DC12V 24V push&pull Type Frame electromagnet travel distance 10mm Keepping Force700g Solenoid
US$ 3.60
: In stock
: 32736861476
Dear friends: The electromagnet only suitable for intermittent work, such as 1 seconds on and 1 seconds off. It's okay to work like this all day. All of the electromagnet will...
Share:
Dear friends:
The electromagnet only suitable for intermittent work, such as 1 seconds on and 1 seconds off. It's okay to work like this all day.
All of the electromagnet will raise the temperature when it's worked,don't worry, the temperature rises to a certain temperature, it will be stable.Of course,fast cooling environment is more conducive to service life.
Happy shopping!
_________________________________________________________________________________
Model:TAU-0530
type:Push & Pull
Voltage:12VDC/24VDC

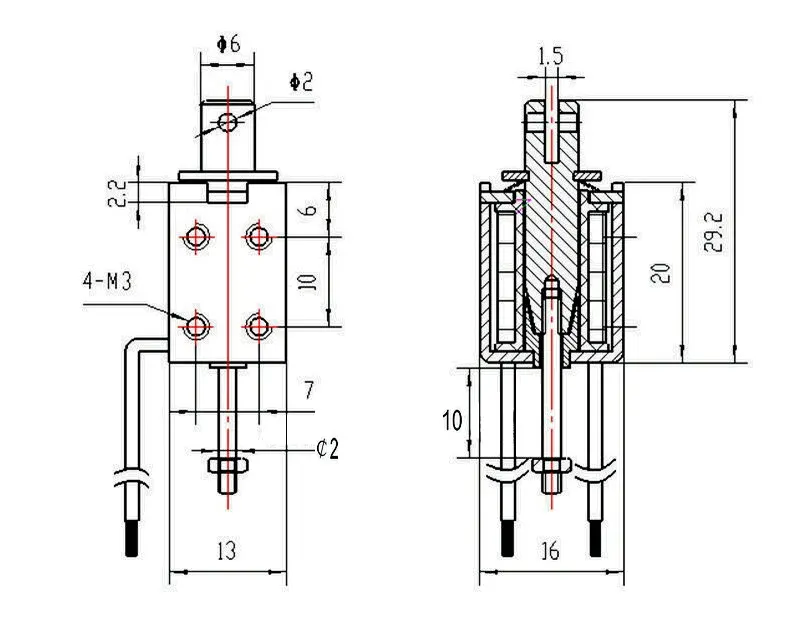

Size:13(W)15(H)30(L)mm
weight:35g
Resistance:25 Ohm
Power:about 18W
Current:12VDC/1500mA;;;24VDC/750mA
Travel distance:10mm
Initial Force(0mm Travel):5N
Keepping Force(10mm Travel):700g
Electric time:Less than 1 minutes
Widely used in automation equipment, such as Game machine,Slot machine,The ticket machine,The cash register,
Automatic office equipment etc.
