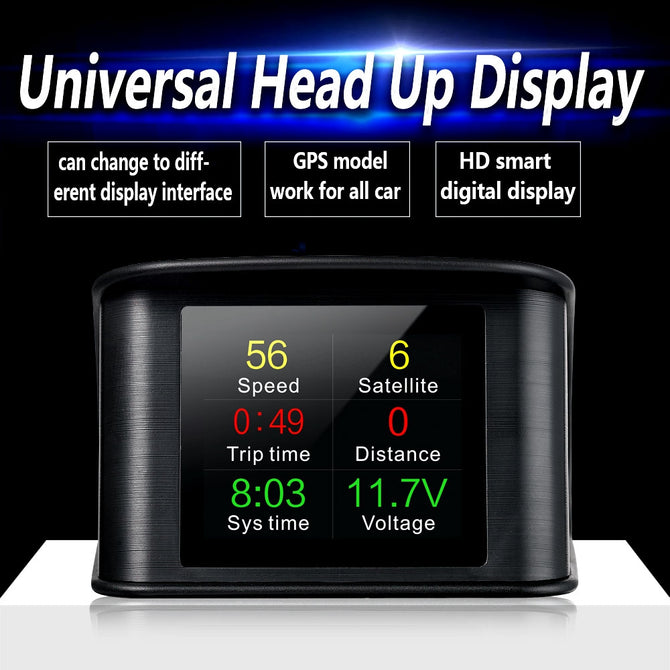

T600 GPS HUD Display, Car Speed Projector / 2.6" TFT LCD Smart On-Board Computer / Digital Car Speedometer for All Cars

GPS Smart digital meter

Introduction
the main function is to display the car dashboard information(e.g.speed,driving direction,local time,driving distance,driving time ),and keep the driver¡¯s eyes always on road to avoid the dangerous of lowering down head to read the dashboard.

Installation
Put the unit near the car front glass, then connect the USB car charger to car cigarette lighter. Start the engine, the unit will power on and search the satellite number, after few seconds, then it can work.

Main Functions&Features
1.Work for all the vehicles,easy installation,plug and play
2.TFT LCD multi color smart display
3.The language can be changed(Chinese or English)
4.Multi function display or simple function display can be switched freely
5.New functions: accelerating competitive mode ,Brake performance test
6.Rich Contents:driving speed,voltage,single driving distance,driving direction,altitude,satellite numbers,system local time,,driving trip time,over speed alarm,freely switch between kilometers&miles.

Setting functions
Language Set:Please choose your familiar language(EN-English, CN-Simplified Chinese,TW-Traditional Chinese)

Sound Switch:turn on/off the buzzer

Speed Alarm:the default value is 150£¨the default value can be changed,push left is to decrease,push right is to increase£©

BAT Alarm:default setting is off,the user can turn right the setting button to open the BAT Alarm and setting the default alarm value.

Speed Adjust:adjust the speed according to the dashboard,default value is 107%

Speed Offset:When the vehicle turns off,but the device speed is not 0, then adjust the device Speed Offset value, if the device speed shows 5KM/H, then change the device Speed Offset default value at 5

BAT Adjust:if the battery voltage is different with the vehicle,it can be adjusted.

Change Color1:default color is white(top speed part in default interface)
ChangeColor2:default color is red(left part in default interface)
ChangeColor3:default color is green(right part in default interface)

Brightness:Default is Auto,means Auto brightness adjustment.
1-Darkest
2 to 8,the brightness will increase
8 is the most bright.

Speed unit:default is KM,can be changed to Mile


Power off time:default power off time is 180s,for Auto start and stop cars,please make the power off time to 180-240s

Sleep Voltage:default is off ,if the device can¡¯t auto off,please adjust the voltage at 13.2V or higher

Time Adjust:When the device searched the satellite successfully,adjust the device time as your local time and exit.

Factory set:short press in to do the factory set

Technical Parameters:
Environment temperature: -40c- + 80c
atmospheric pressure 86-106KPa
Relative Humidity: 10% -95%
environmental noise <= 60dB (A)
Alarm sound level: ¡·=30dB (A)
Working voltage: 9V ~ 16Vdc (12Vdc / 400mA)
Product size: 73*68*46(cm)
Product Weight: 50 g
