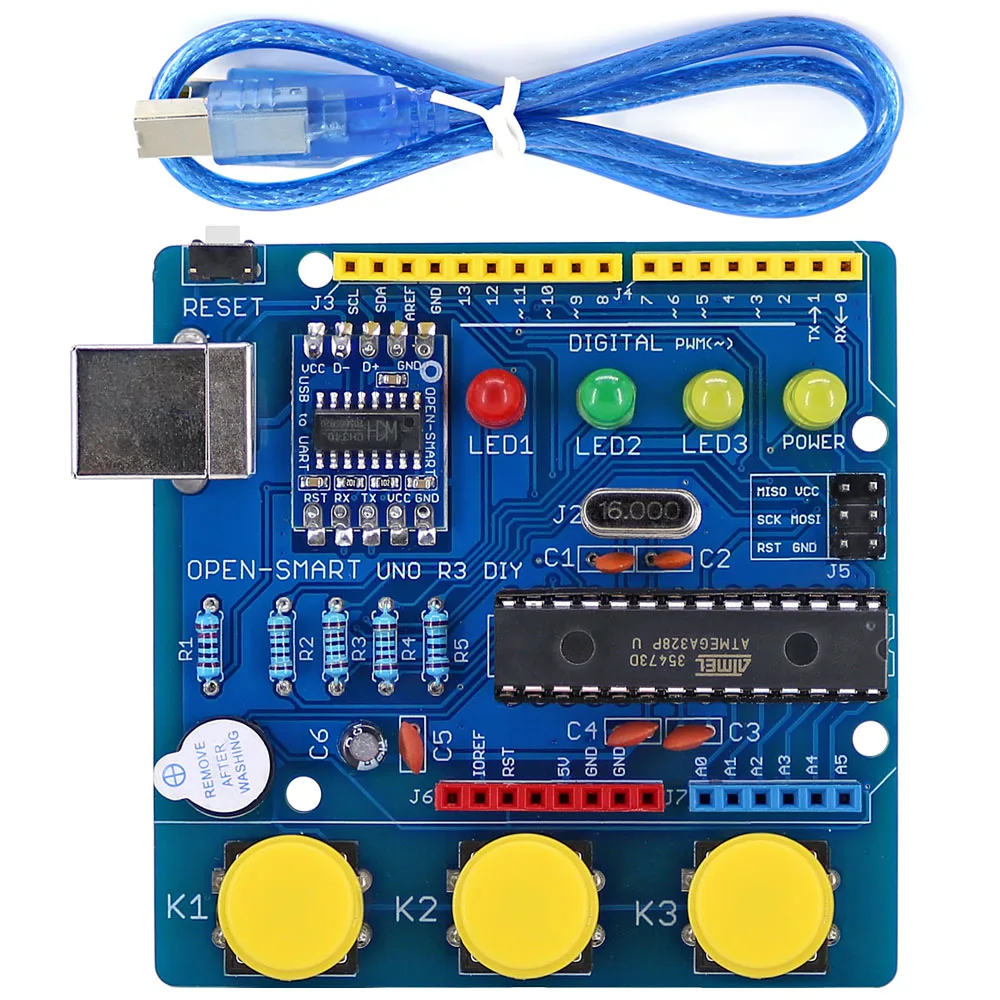

OPEN-SMART UNO R3 DIY ATmega328P Development Board Module CH340 Driver with Buzzer LED Button for Arduino UNO R3 - Blue

Features

This is high quality OPEN-SMART UNO R3 DIY board which is for Arduino UNO R3 development board based on ATMEGA328P.

It is great for beginners, students, training institutions.

Advanced Features:

- Onboard ATmega328P-PU has been burned UNO R3 bootloader;

- Onboard CH340 USB to UART module that you can upload code directly after install CH340 driver for your PC, compatible with win7, win8, linux, MAC OS;

- Onboard colorful Shield pin headers for Arduino;

- Onboard 3 Programmable LEDs which connect to D13 / D8 / D7;

- Onboard 3 Buttons which connect to D4 / D3 / D2;

- Onboard 1 Buzzer which connect to D6;

- Onboard 28PIN-DIP socket so you can replace the ATmega328P-PU chip;

- Onboard 49S Crystal oscillator socket, so you can replace it easily;

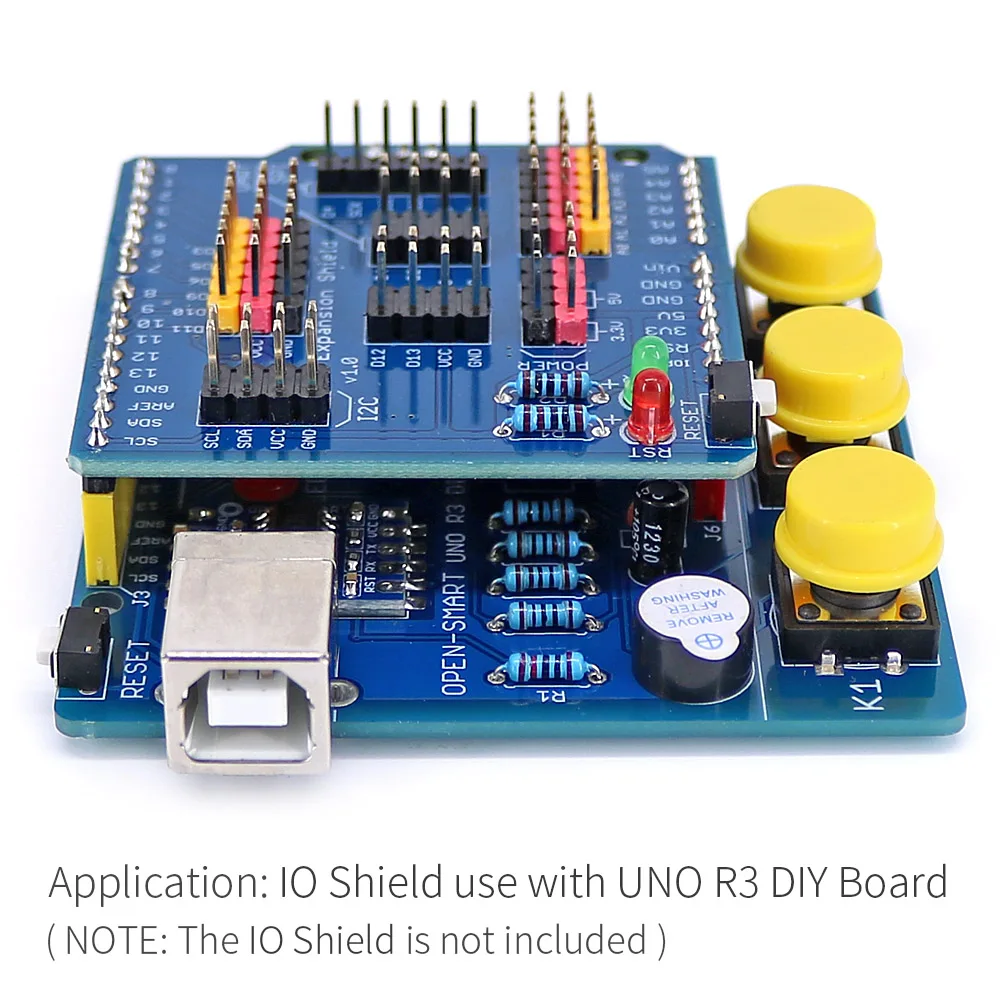

- compatible with UNO R3 program, expansion shields, development environment IDE.

- Microcontrollers: ATmega328P-PU

- Operating voltage: 5V

- IO interface logic voltage: 5V

- Operating Current: 500mA (max)

- Digital I / O pins: 14 (of which 6 can provide PWM output)

- Analog input pins: 6

- Clock frequency: 16MHz

- Onboard power indicator.

- Bootloader burning Interface: ICSP

1 x Board

1 x USB cable
