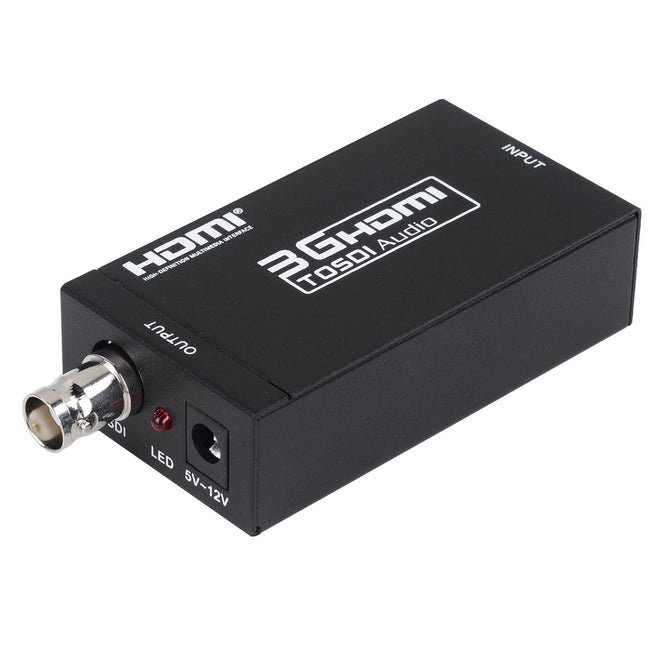

Mini 3G HDMI to SDI 1080P Converter - Black

Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.

I. Introduction
The MINI HDMI to SDI Converter allows HDMI signals to be shown on SDI display while ensuring high bit rates of 2.970 Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high def HDMI signal with audio to SDI for long distance transmission and display your work on SDI display.

II. Features
Shows HDMI source on SDI display.
SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s.

Supports HDMI input timings: 480i@59.94, 576i, 720p@50/59.94/60, 1080i@50/59.94/60, 1080p@23.98/24/25/29.97/30/50/59.94/60.
Converts HDMI signal to SDI:
480i/576i to SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)
720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or 1.485/1.001 Gbit/s)
1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)
Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)
III. Package
3G HDMI to SDI Converter
5V1A DC Power Supply Adaptor
Operation Manual

IV. Specifications
Input Port     1 x HDMI
Output Port    1 x BNC (SDI/HD-SDI/3G-SDI)
SDI Transmission Rates  2.970 Gbit/s and 2.970/1.001 Gbit/s
In/Output Resolution    480i, 576i, 720p@50/59.94,60 ,1080i@50/59.94/60
1080p@23.97/24/25/29.97/30/50/59.94/60
Power Supply DC 5V -12V
ESD Protection Human body model   ±8kV (air-gap discharge) ,
±4kV (contact discharge)
Dimension                 80mm x 41mm x 25 mm
Weight   150g
Operating Temperature  0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature  -20°C ~ 60°C / -4°F ~ 140°F
elative Humidity              20 ~ 90% RH (Non-condensing)
Power Consumption (Max)   5W
