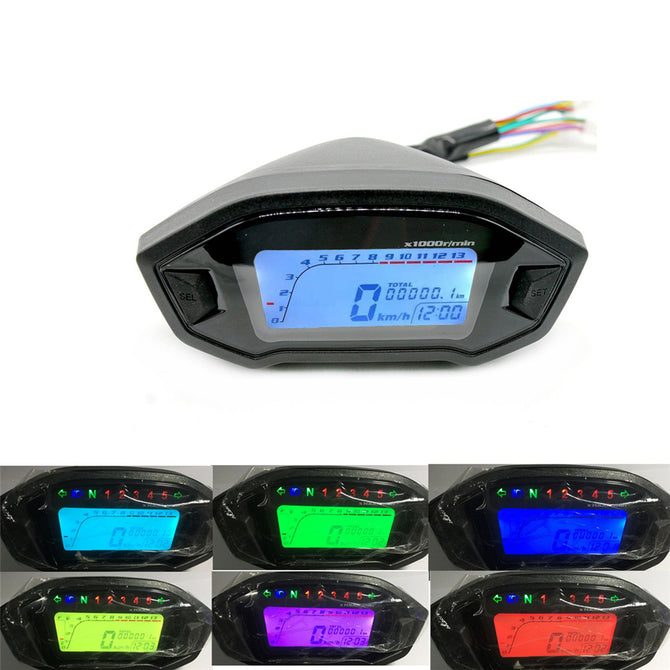

KOSO RX2N Motorcycle Liquid Crystal Instrument Assembly Comprehensive Multifunctional Instrument

Light blue: Turn right, 12V positive control            Green / red: N file
Blue / Yellow: Speed signal                         Line pink: 1 file
Red: Battery positive                              Blue / red: 2 files
Blue: High beam, 12V positive control                Green / black: 3 files
Green: Negative                                  Yellow / Red: 4 files
Orange: left turn, 12V positive                       Yellow / white: 5 files
Blue and white: fuel signal line
Black: Positive
Yellow: Sensor positive
Green: Sensor negative
Black / white: sensor signal
¡¾Working voltage¡¿ 10V-15V
¡¾Speed calibration¡¿ 42.5Hz corresponds to 60KM / H
¡¾Speed calibration¡¿ 166Hz corresponds to 10 * 1000r / min
¡¾Fuel calibration¡¿ E point 98Ω, F point 8Ω
¡¾Voltage¡¿ Below 11.3V Undervoltage symbol flashes, above 11.7V Undervoltage symbol is not displayed
¡¾LCD¡¿ 7-color backlight Short press the right button to switch (order: red, purple, pink green, white, blue, green, sky blue.) The default is red
Press the left button, the total subtotal switch in the subtotal state, press and hold the right button for 3 seconds to subtotal reset.Long presses the left button speed flashes.Short right press the inch switch, and then press the left button to switch to Clock setting, hour bit blinking, short press left plus 1, and then press the left button minutes blinking, short press right plus 1, and then press the left button to save and exit.
