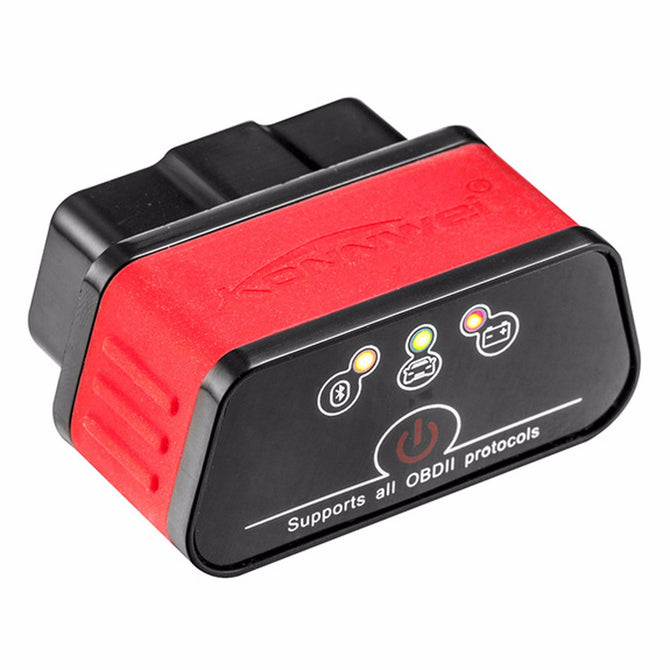

KONNWEI ELM327 OBD2 Scanner Auto Scanner ICar2 KW903 Bluetooth ELM 327 V1.5 Car Diagnostic Tool Black
: In stock
1. This is Bluetooth version, support android/PC system, can\'t work with Iphone, ipad. Bluetooth ELM327 does support the diesel vehicles(12V), but not for trucks, and this ELM327 is bluetooth version for android system cellphones/smart device.
2. The Switch is reset function, not for the power switch, pls kindly be aware of it.
ICar 2 Bluetooth Brief:
The device is a small adapter that plugged into the vehicle OBD-connector. On Bluetooth, it connects to anycomputer, tablet or smartphone, with associated diagnostic procedures . Doing these simple operations, you will be able:
Read, erase and display code descriptions problems - both pending and permannent codes
Measure the fuel consumption.
Display real-time operating performance of the car, such as momentum, vehicle speed, oil pressure, coolant temperature, engine load, intake manifold pressure, throttle position, the values of oxygen sensors, air intake temperature, and more.
Turn off the MIL (signal Check Engine).
Download data to external media in a variety of formats for later printing.
Record various parameters, display graphics in real time, and more.
ELM327 1.5 ICar2 Bluetooth Scanner Features:
Small size, compact structure. Plug and never unplug, ON-OFF Switch allows you to turn off the elm327 totally.
Stable bluetooth 3.0 wireless connection
No wires or batteries (adapter is powered by the diagnosis size sockets)
Stop communication, press the button, no more consumption.
Supports all OBDII 9 protocols
The adapter uses the fastest and most reliable PIC18F25K80 chips
The icar2 ELM327 Bluetooth adapter is 100% V1.5, support all obd2 commands.
ICar2 Detailed Functin List:
1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2.Clear trouble codes and turn off the MIL ("Check Engine" light)
3.Display current sensor data, including:
5.Calculated Load Value
7.Fuel System Status
9.Short Term Fuel Trim
10.Long Term Fuel Trim
11.Intake Manifold Pressure
13.Intake Air Temperature
14.Air Flow Rate
15.Absolute Throttle Position
16.Oxygen sensor voltages/associated short term fuel trims
17.Fuel System status
With iCar you will be able to perform a complete computer diagnostics car and even to correct minor faults without resorting to service stations.
V1.5 supports all OBD-II Protocols:
1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
A.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)
*default settings(user adjustable)
1 x KW903
