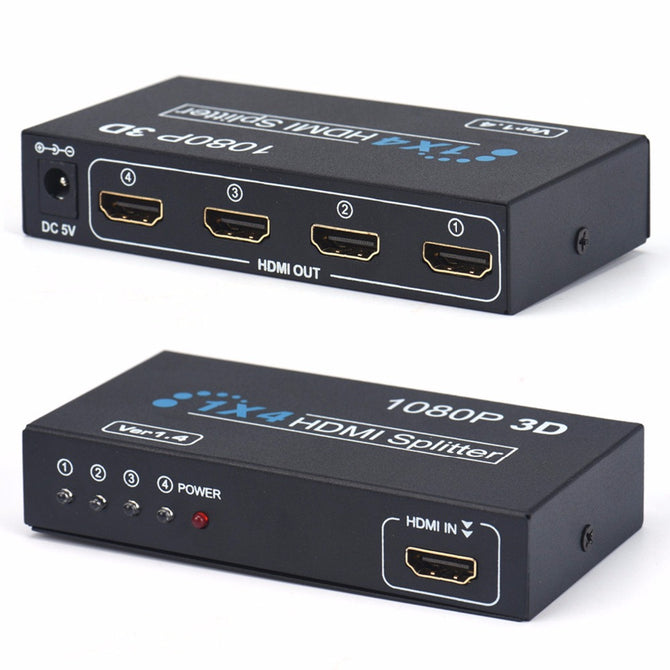

Kitbon 1 in 4 out HDMI 1.4 Splitter, 1X4 HD 1080P 3D Duplicator Amplifier Switch (EU Plug)
US$ 15.84
US$ 22.14
: In stock
: 606355
Feature:Compact Mini DesignSplits HDMI into Four DisplaysSupports 3D and HDCP Pass-ThroughAudio Supported(Supports Compressed Audio): DTS Digital, Dolby Digital, DTS HD and Dolby True HDVideo Format Supported: 480i/576i/480p/576p/720p/1080i/1080pInput/Output TMDS signal: 0.5-1.5...
Share:
Feature:
Compact Mini Design
Splits HDMI into Four Displays
Supports 3D and HDCP Pass-Through
Audio Supported(Supports Compressed Audio): DTS Digital, Dolby Digital, DTS HD and Dolby True HD
Video Format Supported: 480i/576i/480p/576p/720p/1080i/1080p
Input/Output TMDS signal: 0.5-1.5 Volts p-p(TTL)
Input/Output DDC signal: 5 Volts p-p(TTL)
Max bandwidth: 225MHz
Max band rate: 6.75Gbps
Signal Inputs/Output: Output Video: HDCP 1.0/1.1, HDMI 1.4
Operating Frequency
Video Amplifier Bandwidth: 165MHz/1.65Gbps per channel (4.95Gbps all channel)
Vertical Frequency Range: 50/60Hz
Resolutions
Video formats supported - VGA: 640x480, 800x600, 1024x768, 1280x1024
Video formats supported - DTV/HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Supports video color format: 24bit/deep color 30 bit,36bit
Power Requirement
Input: 100-240V AC 50/60Hz 0.3A
Output: 5V DC 2A
Compact Mini Design
Splits HDMI into Four Displays
Supports 3D and HDCP Pass-Through
Audio Supported(Supports Compressed Audio): DTS Digital, Dolby Digital, DTS HD and Dolby True HD
Video Format Supported: 480i/576i/480p/576p/720p/1080i/1080p
Input/Output TMDS signal: 0.5-1.5 Volts p-p(TTL)
Input/Output DDC signal: 5 Volts p-p(TTL)
Max bandwidth: 225MHz
Max band rate: 6.75Gbps
Signal Inputs/Output: Output Video: HDCP 1.0/1.1, HDMI 1.4
Operating Frequency
Video Amplifier Bandwidth: 165MHz/1.65Gbps per channel (4.95Gbps all channel)
Vertical Frequency Range: 50/60Hz
Resolutions
Video formats supported - VGA: 640x480, 800x600, 1024x768, 1280x1024
Video formats supported - DTV/HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Supports video color format: 24bit/deep color 30 bit,36bit
Power Requirement
Input: 100-240V AC 50/60Hz 0.3A
Output: 5V DC 2A
| Power Adapter | EU Plug |
| Material | Metal |
| Quantity | 1 set |
| Connector | HDMI,3.5mm |
| Power Adapter | EU Plug |
| Packing List | 1 * HDMI Splitter 1 * 5V Power Adapter (EU Plug) 1 * User Manual |
Dimensions: 4.33 in x 2.20 in x 0.87 in (11.0 cm x 5.6 cm x 2.2 cm)
Weight: 8.82 oz (250 g)
Weight: 8.82 oz (250 g)
