HDMI LAN Extender Repeater Over Single Cat5E/6 RJ45-EU Plug
US$ 16.91
US$ 20.15
: In stock
: 32945557831
The use single Cat-5E or Cat-6(recommended) cables up to 60 meters instead of HDMI cable to transmit high definition signal, for cutting down cost. Long distance transmission of high definition...
Share:
The use single Cat-5E or Cat-6(recommended) cables up to 60 meters instead of HDMI cable to transmit high definition signal, for cutting down cost. Long distance transmission of high definition is very difficult because HDMI cable is very expensive and infrequent. The Extender is designed to supply for long distance transmission of high definition signal.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Signal transmission: single cat-5e or cat (recommended) cables up to 60 meters instead of HDMI cables are connected between TX and RX Extender.
Support up to 20 meters AWG26 cable length between extender and sources & sink device
HDMI Input/Output: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format input: DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth: 2255MHz
Max baud rate: 6.75Gbps
Input Video signal: 0.5~1.5Voltts p-p
Output DDC signal: 5Volts p-p(TT1L)
Input/Output HDMI 1.3 cable distance Less than equal 20m AWG26 HDMI 1.3 standard cable
Max working current: 100mA
Power adapter format Input: AC(50HZ,60HZ)100V-240V;Output: DC5V
Plug Type: EU Plug,it applies to Indonesia, Germany, France, Spain, Italy and so on.
Colour: Black
Material: ABS
Size: 8*4.5*2.2cm

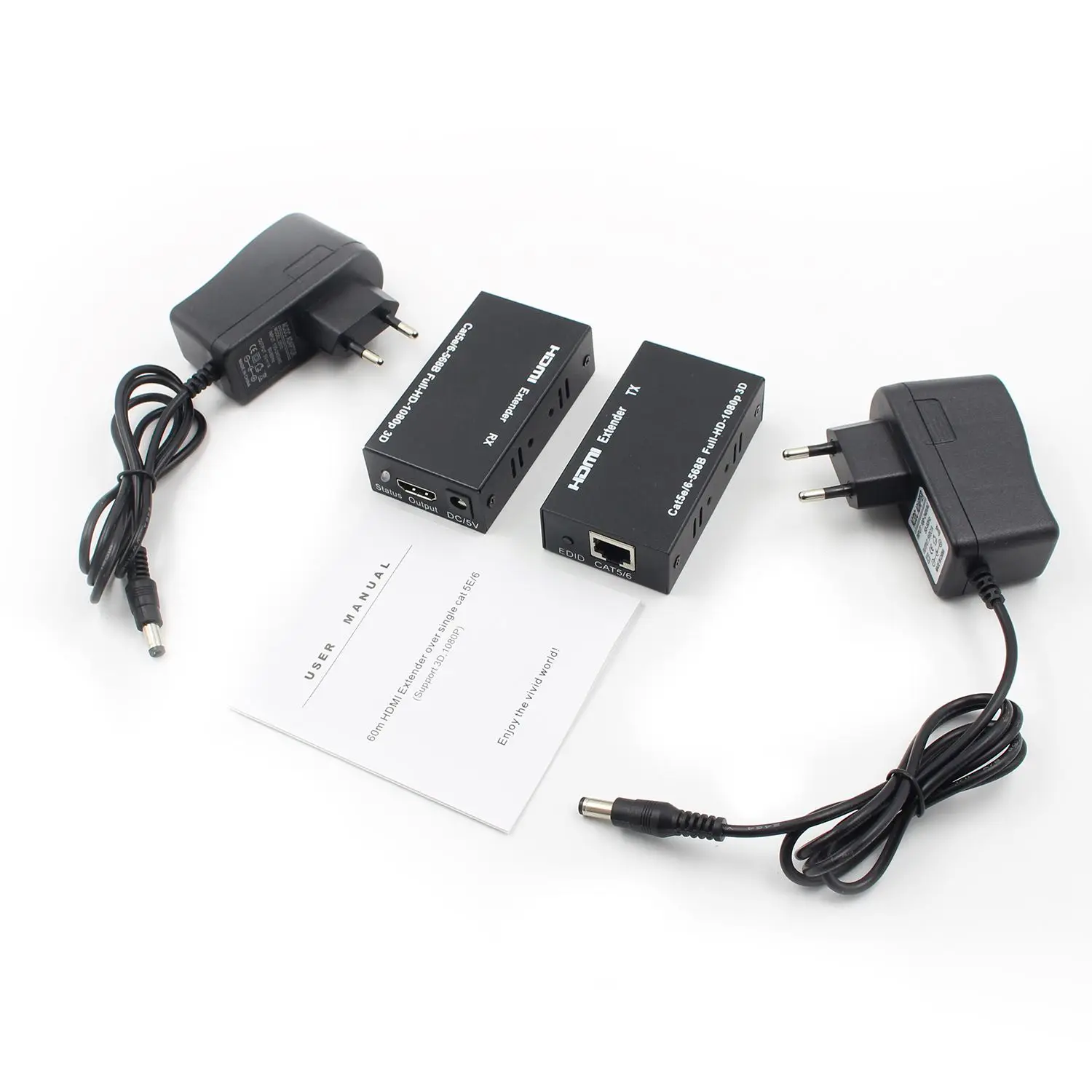

Package Contents:
1 pair * LAN extender repeater(EU)
2 x charger
1 x Instruction manual
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
