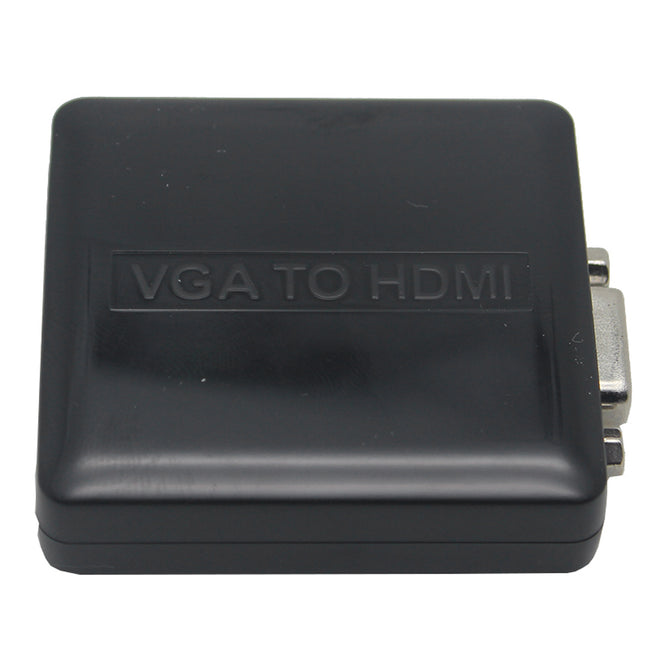

HD Mini VGA + R/L to HDMI Converter Adapter w/ Micro USB Cable - Black

Descriptions:
- The VGA to HDMI Converter allows VGA+R/L signal to be converted easily to HDMI signal which was showed on HD monitor or projector
- Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.


Features:
- One VGA+R/L input signal convert to TMDS signal which supports HDMI
- Support video input: VGA analog
- Support audio input: R/L analog
- HDMI output: Support up to 1920x1200, same format as input
- LED indication: when source or sink is working, the related LED lights up
- Support output up to 10 metres AWG26 cable length
- No loss of quality
- Installs in minutes
- Need Micro USB for charging
  Specifications:
. VGA Input ---- Support SXGA/SGA/UGA(60Hz)
. Audio Input ---- R/L Analog
. HDMI resolution ---- Support up to 1920 x 1200/60Hz
. Max bandwidth ---- 165MHz
. Max baud rate ---- 1.65Gbps
. Output cable distance ---- ¡Ü10m AWG26 HDMI standard cable
. Input Video signal ---- 0.5~1.5Volts p-p
. Output DDC signal ---- 5 Volts p-p (TTL)
. Max working current ---- 500mA
. Power adapter format ---- DC 5V/500mA
. Operating Temperature range ---- (-15 to +55)
. Operating Humidity range ----  5% to 90%RH (No Condensation)
