GREATZT F249 4 PIN Infrared Speed Sensor Module For Arduino /51/AVR/PIC 3.3V-5V Free shipping High Quality
US$ 1.99
US$ 2.39
: In stock
: 32817743977
High Quality 4 PIN Infrared Speed Sensor Module Module Description 1. Working voltage: 3.3--5.5V 2. The use of imported groove coupler sensor, the groove width of 5mm. 3. The...
Share:
High Quality 4 PIN Infrared Speed Sensor Module
Module Description
1. Working voltage: 3.3--5.5V

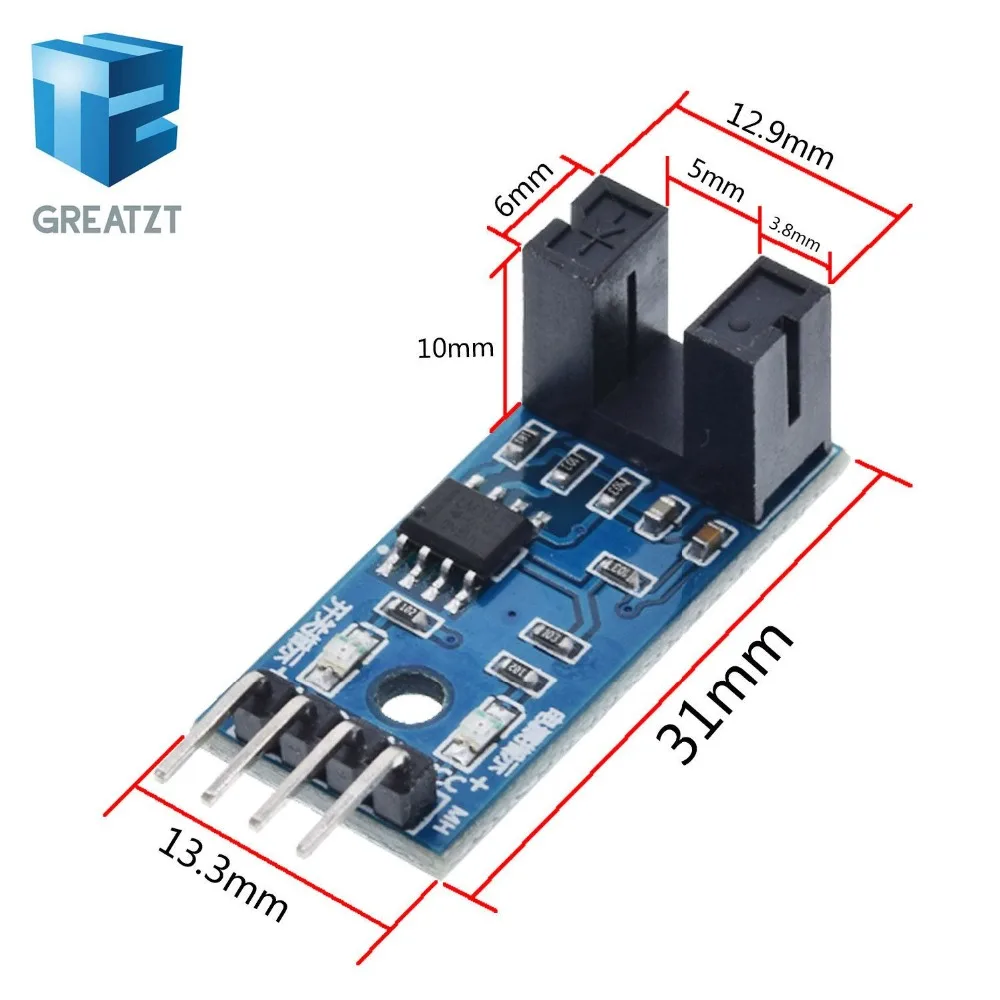

2. The use of imported groove coupler sensor, the groove width of 5mm.
3. The sensor slots are blocked, the output high and the light is off; no shelter, output low and lights.
4. Output form: Digital switching output (0 and 1)
5. Using LM393 comparator output, type clean, good waveform, driving ability over 15mA.
6. A fixed bolt hole for easy mounting.

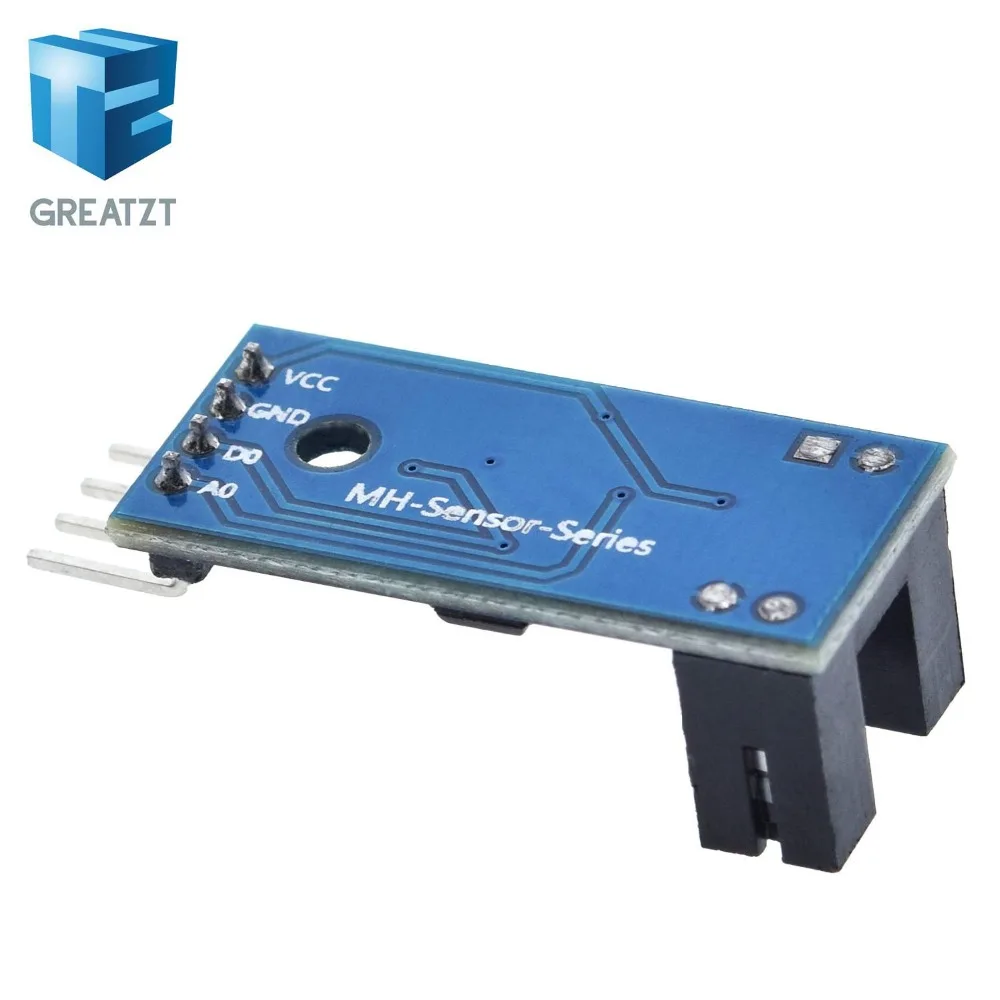

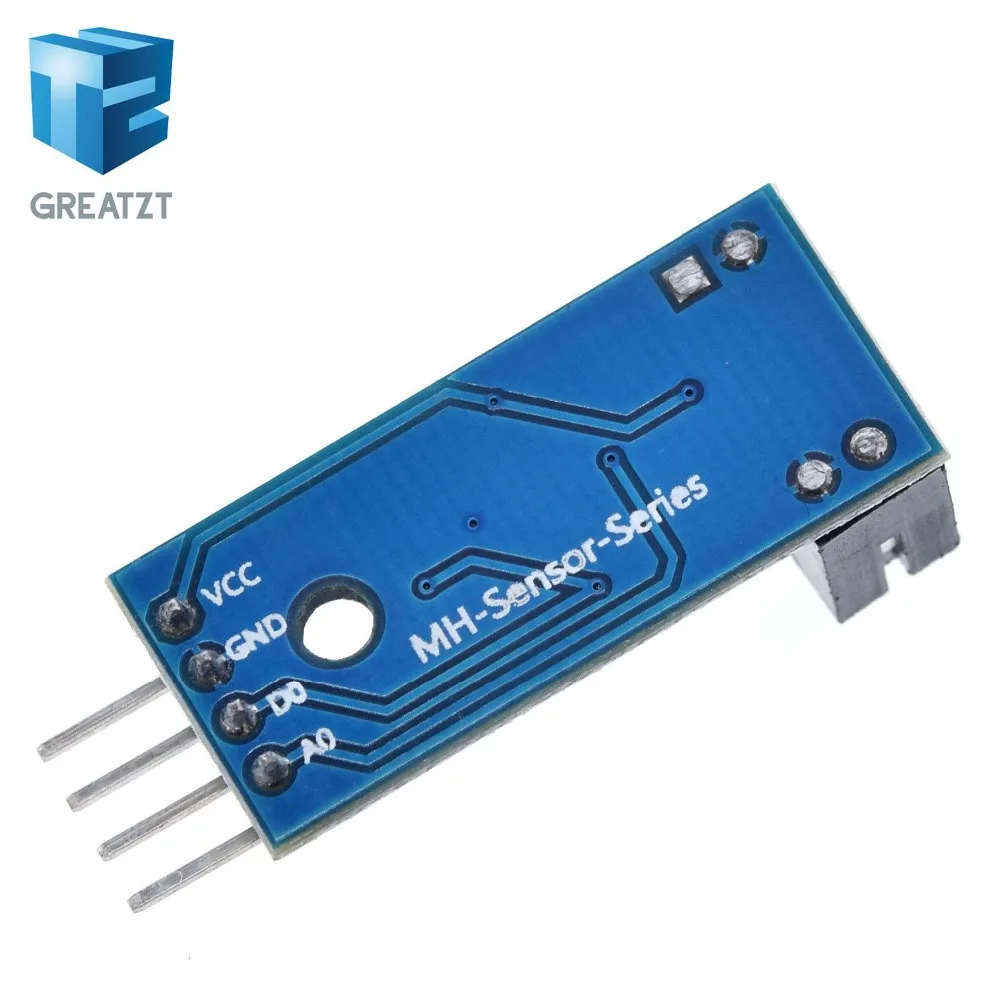

Module interface specification (3-wire)
1 VCC 3.3V-5V external
2 GND External GND
3 DO small board digital output interface switch connected to the microcontroller IO port
4.AO: Invalid
