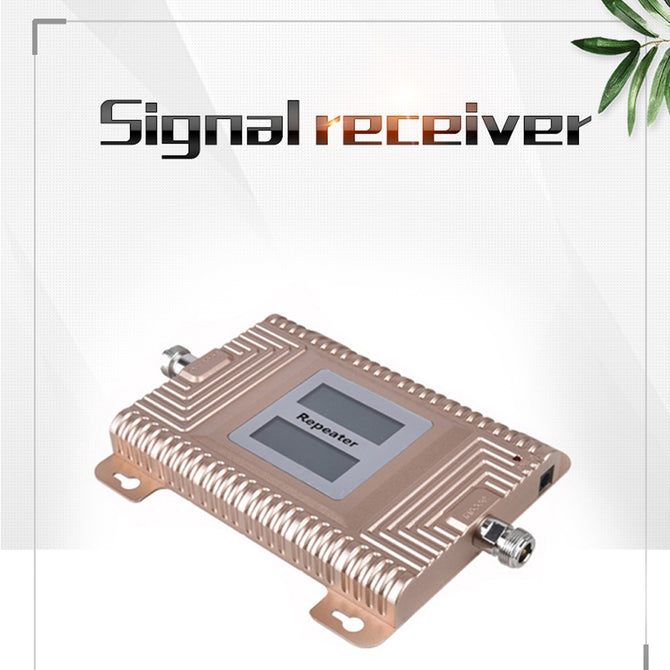

Double Frequency CDMA/3G 800/2100MHz Mobile Phone Signal Repeater Extender US Plug

Double Frequency CDMA/3G 800/2100MHz Mobile Phone Signal Repeater Extender US Plug

US$ 110.47 US$ 125.47

: In stock

: 20001817

Product Description Model Number: CDMA /3G 800/2100MHZ CDMA/3G 800/2100MHz Repeater Frequency(MHz) CDMA: UL:824-849 MHz DL: 869-894 MHz 3G: UL: 1920-1980 MHz DL: 2110-2170 MHz gain(dB) 65 70 Band flatness(dB) less...
Product Description
Model Number: CDMA /3G 800/2100MHZ


CDMA/3G 800/2100MHz Repeater
Frequency(MHz) CDMA: UL:824-849 MHz DL: 869-894 MHz

3G: UL: 1920-1980 MHz DL: 2110-2170 MHz
gain(dB) 65 70
Band flatness(dB) less than 3
Output Power(dBm) 23 27
ALC 31
VSWR less than 2.5
Group delay(uS) less than 1
Impedance 50ohm
Working tempreture -25~+55 degree
Connector type N-Female
Working voltage AC110V~220V to DC+5V/1A
Size(mm) 190*130*23
Packing Size(mm) 480*200*155
Net Weight(Kg) ¡Ö2.3KG

Product List

Dual frequency host*1

Outdoor logarithmic period antenna*1

Indoor 3 m ceiling *1

10 m feeder *1

Power supply*1

Instruction manual*1
