DC 5V-12V 120W Mini ZVS Induction Heating Power Module Tesla Jacobs Ladder No Taps With Heating Coil
US$ 3.99
US$ 5.15
: In stock
: 32840622320
Specification: Input voltage: 5v-12v Module dimension:5.5*4*2 cm(L*W*H) Product Weight: 119g Coil size: length:7.5cm width: 2.8cm Features: -ZVS heating power supply module including heating coil -Input voltage DC5V-12V(We...
Share:
Specification:
Input voltage: 5v-12v
Module dimension:5.5*4*2 cm(L*W*H)
Product Weight: 119g
Coil size: length:7.5cm
width: 2.8cm
Features:

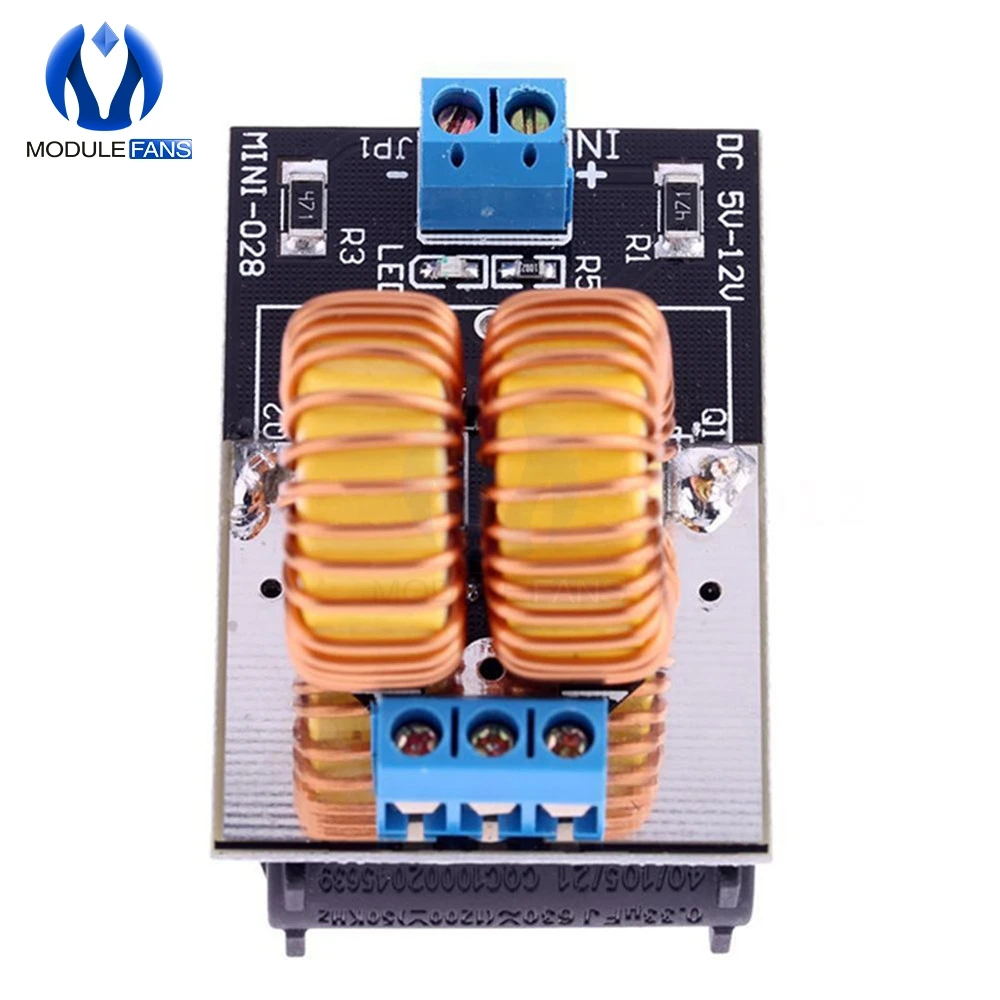

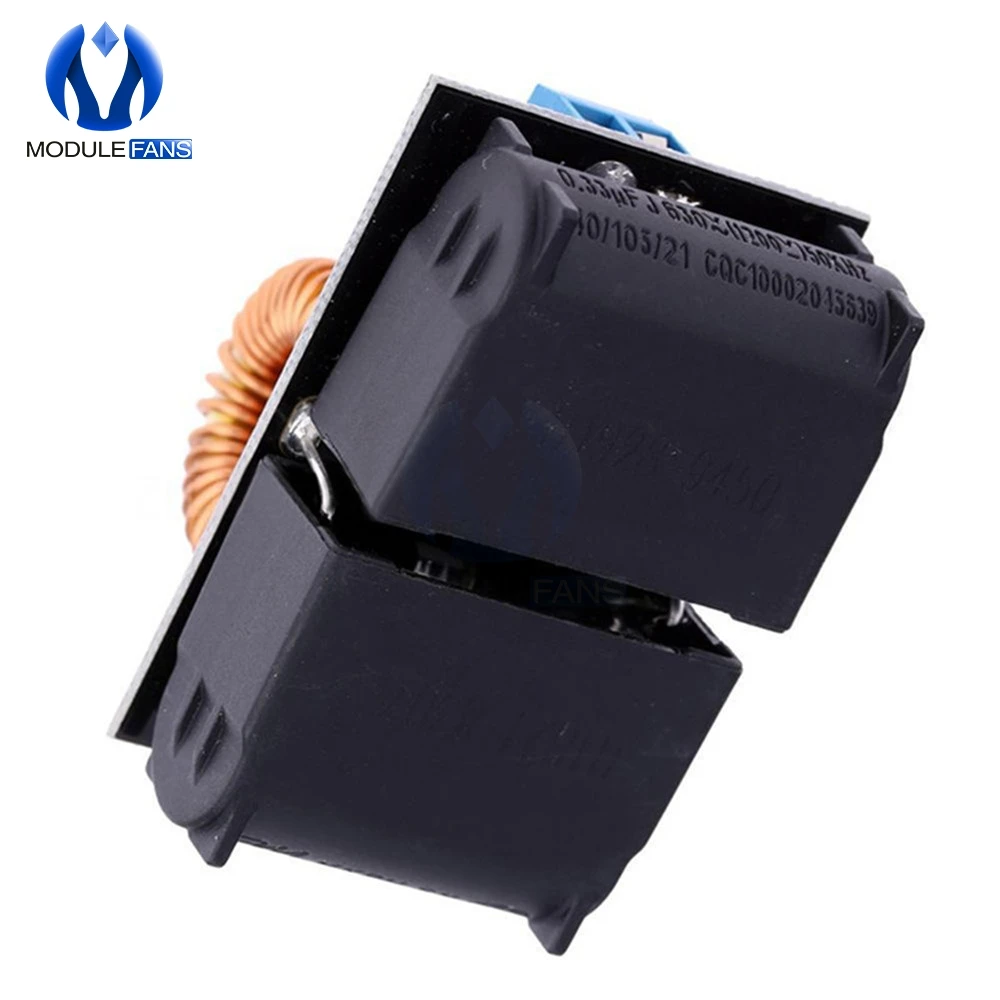

-ZVS heating power supply module including heating coil
-Input voltage DC5V-12V(We are not guarantee the module will work when the voltage is over 12V or less than 5V)
-Maximum power 120W(when 12V eddy-current heating)
-Ensure all the components welding right,power line connect in right way,than to set up an electric circuit.
-The width of the heated object is as far as possible between the 1/3~1/2 of the inner diameter of the heating coil,
the maximum not more than 2/3!
Package Included:

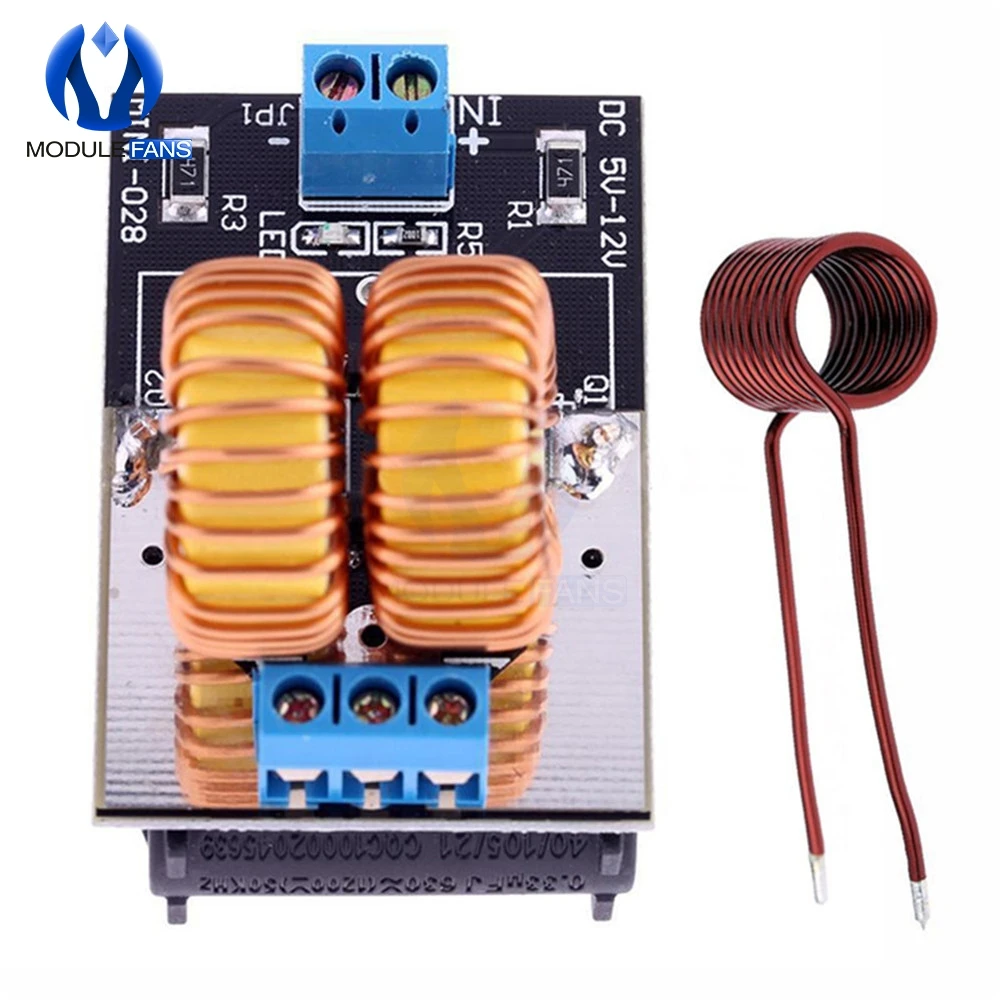

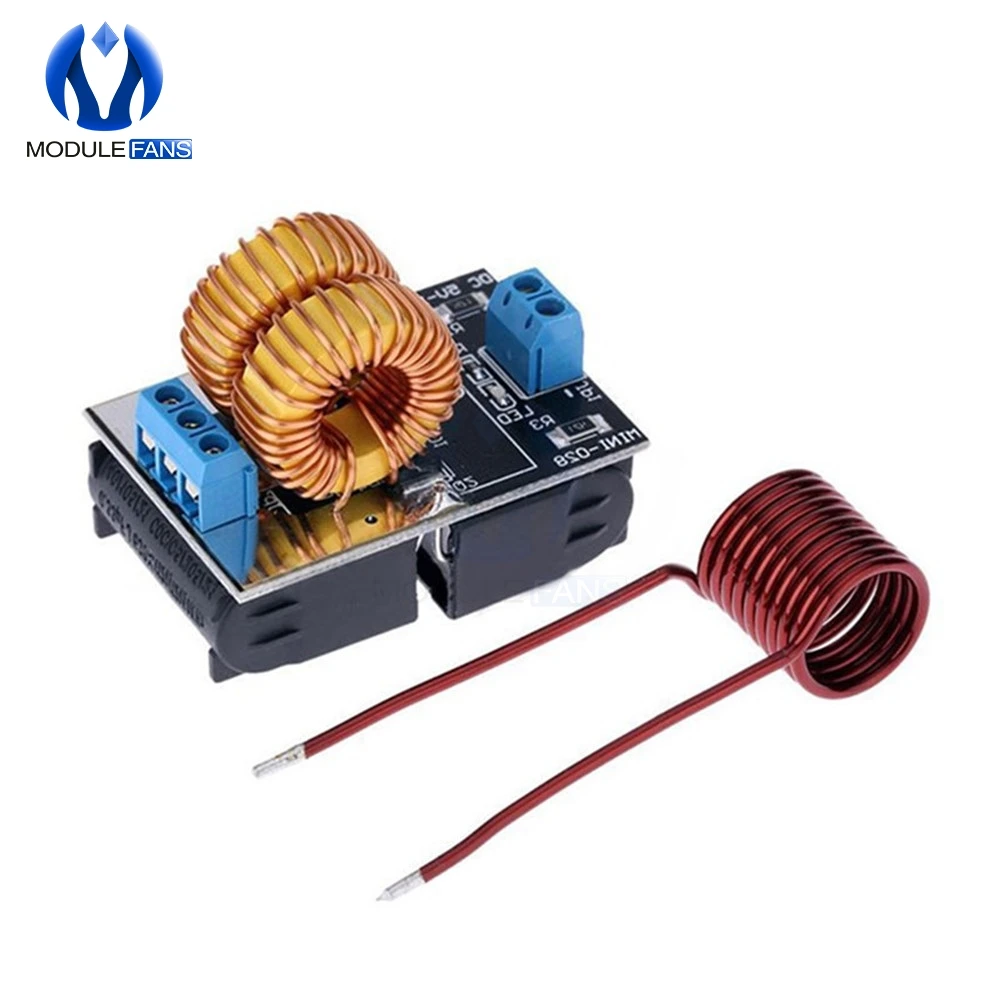

1 pc ZVS heating power supply module
1 pc heating coil
