Automotive Modified Voltmeter Micro-Transparent Waterproof Voltmeter 0-100V
US$ 5.50
US$ 9.40
: In stock
: 522215
Digital Voltage MeterDC0-100V IP67FeaturesCompact sizeDigital LED display (3 digits)Self-powered from the measuring DC voltageFloating decimal point for better resolution below 10VCompletely sealed design (IP67)Reversed polarity input protection ...
Share:

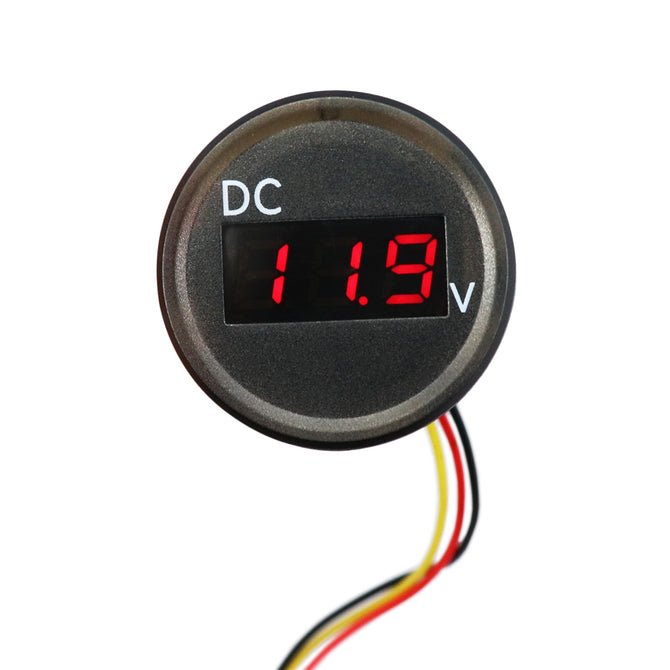

Digital Voltage MeterDC0-100V IP67
Features
Compact size
Digital LED display (3 digits)
Self-powered from the measuring DC voltage
Floating decimal point for better resolution below 10V
Completely sealed design (IP67)
Reversed polarity input protection
Specification
Product display: LED display
Measure voltage range | DC 0-100V
powering voltage range |DC 4-30v
Current Consumption | <30mA
Sampling Rate | 5 readings/s
Resolution | 0.01V (input <10V) / 0.1V (input >10V)
Product features: Fully sealed design (IP67) Small size Digital LED display screen Input protection
Wiring:Red line to 4-30V power supply /
The yellow wire connection requires the positive pole of the measuring device (0-100V) (note that you cannot connect the same device with the red wire)
Black wire ground
Features
Compact size
Digital LED display (3 digits)
Self-powered from the measuring DC voltage
Floating decimal point for better resolution below 10V
Completely sealed design (IP67)
Reversed polarity input protection
Specification
Product display: LED display
Measure voltage range | DC 0-100V
powering voltage range |DC 4-30v
Current Consumption | <30mA
Sampling Rate | 5 readings/s
Resolution | 0.01V (input <10V) / 0.1V (input >10V)
Product features: Fully sealed design (IP67) Small size Digital LED display screen Input protection
Wiring:Red line to 4-30V power supply /
The yellow wire connection requires the positive pole of the measuring device (0-100V) (note that you cannot connect the same device with the red wire)
Black wire ground
General | |
---|---|
Brand | IZTOSS |
Model | B3612 |
Quantity | 1 set |
Material | Plastic |
Specification | |
Power Supply | 0-30V |
Dimensions & Weight | |
---|---|
Dimensions | 1.42 in x 1.38 in x 0.75 in (3.6 cm x 3.5 cm x 1.9 cm) |
Weight | 0.6 oz (17 g) |
Packing List |
---|
1 x Voltmeter |
