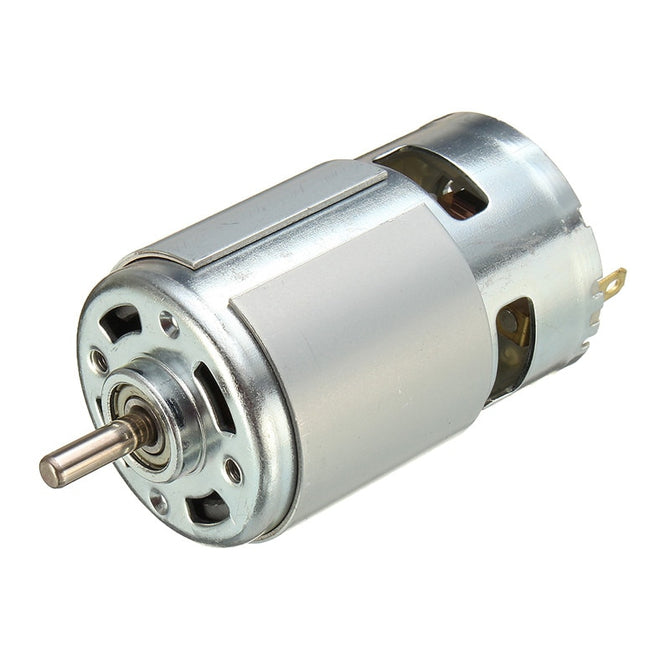

775 DC Motor DC 12V-36V 3500--9000 RPM Ball Bearing Large Torque High Power Low Noise Hot Sale Electronic Component Motor

US$ 9.74 US$ 18.20

: In stock

: 32814556057

      Specification: Brand new and high quality Shaft Diameter: Approx. 5 mm Shaft length: Approx. 17 mm Body length: Approx. 66.7 mm Front steps diameter: Approx. 17.4 mm...









Specification:

  • Brand new and high quality

  • Shaft Diameter: Approx. 5 mm

  • Shaft length: Approx. 17 mm

  • Body length: Approx. 66.7 mm

  • Front steps diameter: Approx. 17.4 mm

  • Former high level: Approx. 4.7 mm

  • Body diameter: Approx. 42 mm

  • Motor Overall Length: Approx. 98 mm

  • Diagonal installation pitch: Approx. 28.8 mm

  • Mounting hole size: M4

  • Mounting hole: 2

  • Cooling fan: Yes

  • Rated voltage: 24 V (Max. 36V)

  • Current Rating: 0.16 A

  • Rated Speed: 3500--9000 RPM

Different voltage parameters:

  • DC 12V, current 0.14A, speed 3500RPM

  • DC 18V, current 0.15A, speed 4500RPM

  • DC 24V, current 0.16A, speed 7000RPM

  • DC 30V, current 0.17A, speed 8100RPM

  • DC 36V, current 0.20A, speed 9000RPM

Features:

  • The front is ball bearing and back-end is copper

  • 5 groups winding

  • At a voltage of 12V-24V , large torque, low noise

Package included:

  • 1 x 775 Motor

Note:

Please allow 1-2cm errors due to manual measurement
