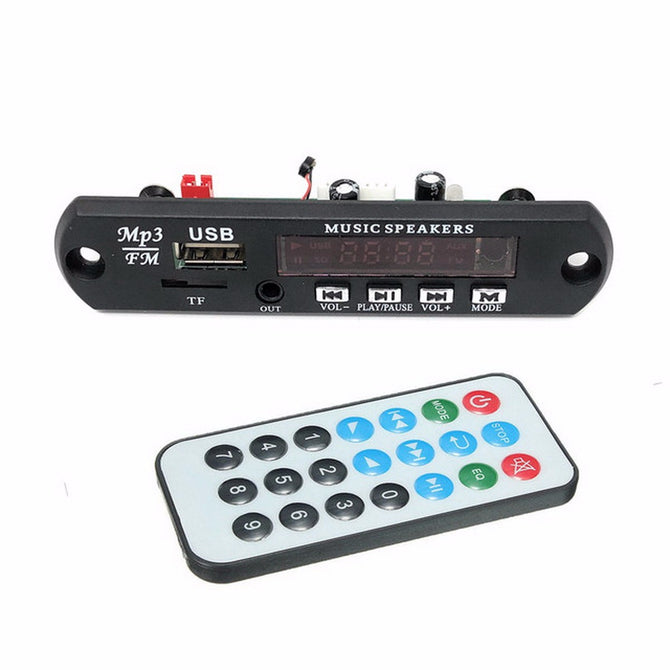

5V 12V Car Bluetooth 4.2 mic MP3 Decoder Board Decoding Player Module Support FM Radio USB TF LCD Screen Remote Controller Black

Description
Signal Noise Ratio: ≥89dBWIFI: No
Function: Bluetooth,FM RadioBrand Name: AiELEMZION
Package: NoBalanced Out: Yes
Audio Format Support: WMA,APE,MP3,WAVScreen Size: 1.1 inches
Storage Type: Flash MemorySupports FM: Yes
Style: Car MP3External Memory: Yes
Supports EBook Reading: NoBody Material: Plastic
Bluetooth: YesBattery Specification: External Power
Have Speakers or not: NoBattery Life: > 20 hours
Supports Recording Function: NoOperation Mode: Touch Tone
Screen: Yes




Warm Tips:
This product is a semi-finished products, so it need professional knowledge. if you don't have electronic professional skills,please don't  buy.  there is the risk of damage to the circuit board, thank you.

Power supply:
It can use 5v micro USB power, cellphone charger is ok,  or use 12v DC power
It need DC 12v power, can not use the AC power.
Decoding board power need four of rectifier diode full-wave rectifier circuit, through the enough capacity of the filter capacitor (generally we choose the capacity of 2200 uf capacitance) output pure dc to decode board safe use.
Filter capacitor capacity if not enough, can cause decoding board output current sound, serious can cause decoding board damaged because of the power supply ripple is too big.
So please don't use the adapter of WIFI router or other similar adapter!!

Functional features:
(This product without amplifier,  it must be connect a amplifier before speaker) :
1, the latest bluetooth audio receiver function, support Bluetooth 4.2 EDR, mobile phones and the machine matching connection, cell phones play music can be sent via bluetooth to play this product;
2, FM radio function, can listen to local radio stations;
3, double decoding: can read USB, TF card MP3, WAV music files;
4And outside sound input function, can pick up a CD sound come in to switch, computer thereof;
5, support for MP1 Layer3, MP2 Layer3, MP3 Layer3 version of the song;
6, support 32-320 KBPS MP3 songs.

Connection details:
1, 2 p red seat: GND connect power anode, connect the dc + 12 v DC7-12 v positive;2, 3 p white saddle: R - O is right sound channel audio output, AGND is an audio ground, L - 0 is left sound channel audio output;3, 3 p white saddle: L - IN the outer left sound channel input, AGND is outside the ground, R - is IN the right sound channel input sound;4, 3.5 headset seat: headphones sound output, didn't meet borne power amplifier can be in the direct plug in headphones to listen to music;5, the ANT is white solder welding position of the radio antenna, radio antenna can choose more than 1 m copper wire or rod antenna, radio different effects depending on the different geographical environmentBluetooth operation:Press the "MODE" on the panel will switch to the "bLUE" state machine, a search to "ZE - CY09 - BT - APE" and with the connection, enter a state of normal play, the volume can be controlled by an external audio source equipment, can also by long press "up a tune" and "next song" to adjust the volume. Phone call is fashionable short press "play/pause" to answer the phone Long press to reject.Phone out or when a short press "play/pause" to hang up.March the remote control as the "play/pause" button on the remote controlRPT of the remote control button: click this button for single loop or the whole song cycle. According to "ONE" is a single loop. ALL is the whole song cycle, cycle of a FOlD is folder.MP3 operation:On the insert copies the U disk or TF card, MP3 songs machine will automatically recognize and play
Product specifications:
Mounting holes distance: 95 mm wide
Installation hole: 85 * 20 mm wide
Overall size: 107 * 25 * 28 mm deep
Working voltage: 12V; working current: <200Ma; output: >600mV
Bluetooth directions for use:
Press MODE key panel, screen display switch to BLUE (bluetooth), found in the cell phone setting bluetooth option, search the bluetooth devices, to search the product name of bluetooth, pairing and connecting, individual mobile phone to enter the password (0000) match.
Note: different functions and different batches of circuit board may be slightly different.
Supports Bluetooth v4.2 + EDR
panel + remote control decoder board
Support bluetooth (Bluetooth3.0EDR) (paired with the phone can be achieved after a good music radio)
Supports USB / TF card switch, previous / next song, fast forward, rewind, volume control, EQ, play / pause, stop, single repeat, mute, shutdown, elections songs
Supports USB / TF / Bluetooth / FM; Module designed with MP3 / WMA audio decoder chip; Supports music play from USB / TF card
