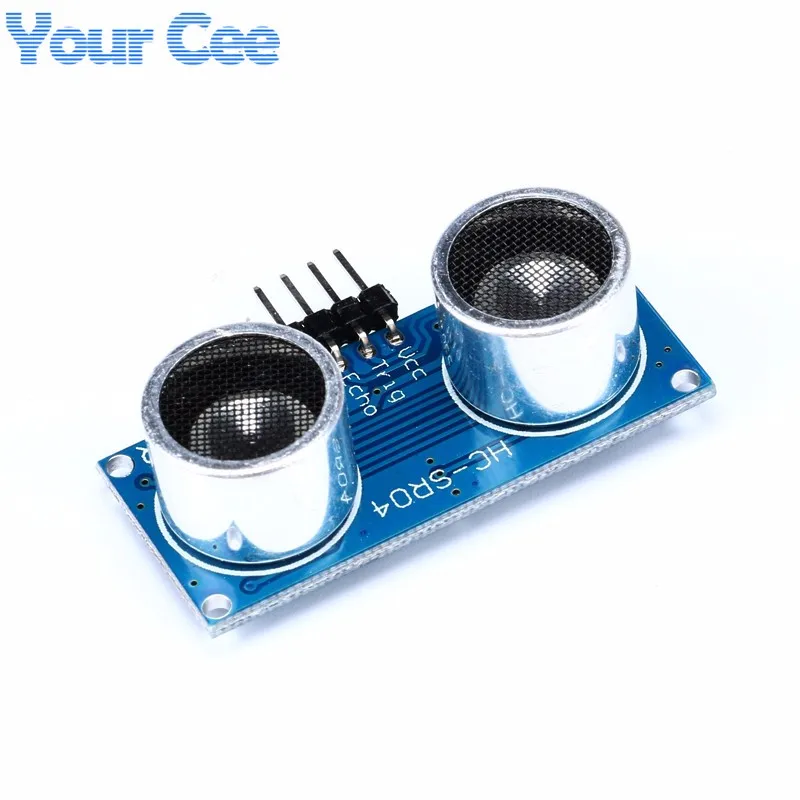

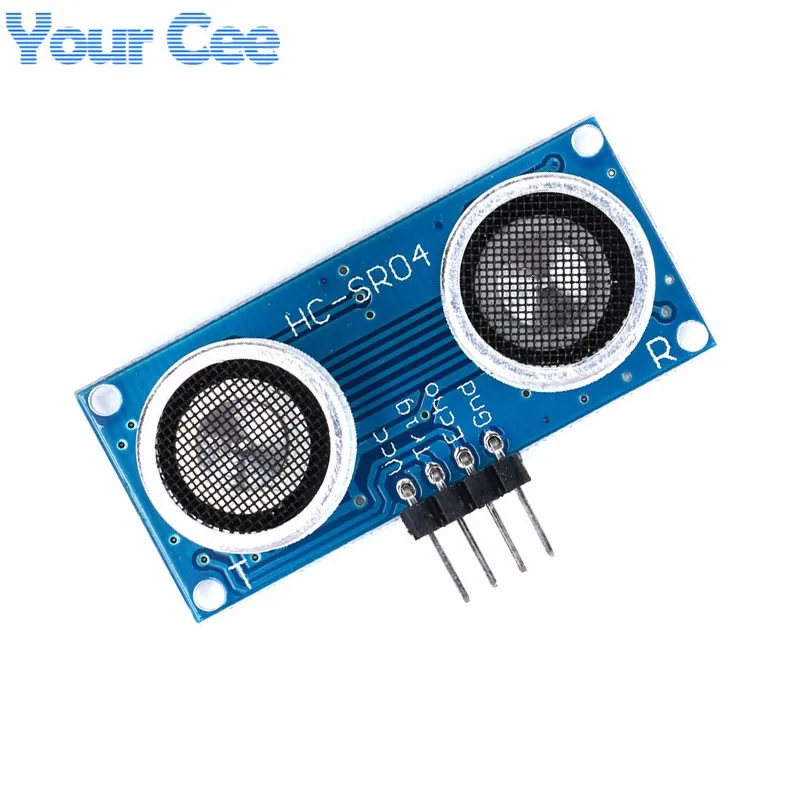

5 pcs HC-SR04 Ultrasonic Module Distance Measuring Transducer Sensor for Arduino Samples HC-SR04-P Without Oscillator
US$ 3.94
US$ 4.08
: In stock
: 32750679310
HC-SR04 Ultrasonic Module Distance Measuring Transducer Sensor for Arduino Samples HC-SR04-P Sensor Module Without Oscillator HC-SR04-P is a wide voltage range of ultrasonic ranging module. Module size and software with...
Share:
HC-SR04 Ultrasonic Module Distance Measuring Transducer Sensor for Arduino Samples HC-SR04-P Sensor Module Without Oscillator
HC-SR04-P is a wide voltage range of ultrasonic ranging module. Module size and software with the old version of HC-SR04 is fully compatible with the old version of HC-SR04 can seamlessly switch. As low as 3V minimum operating voltage, so that it can be directly connected with the 3.3V power supply MCU.
Product Features:
1. Wide voltage operation: 3V-5.5V
2. Fully compatible with HC-SR04 software and hardware dimensions
3. Detection range:
5V: 2cm ~ 450cm
3.3V: 2cm ~ 400cm
4. Detection angle: < 15 Angle
5. Use of industrial grade MCU, operating temperature: -20 Celsius - 80 Celsius
Note:
1. This module should not be charged connection, if you want to live connection, then let the module Gnd first connected. Otherwise it will affect the module work.
2. Ranging, the measured object area of not less than 0.5 square meters and to try to level. Otherwise it will affect the test results.
3. If the test surface is not very regular or when testing long-range objects, you can use multiple measurements to correct.
 |
||
 |
 |
 |
 |
 |
 |
