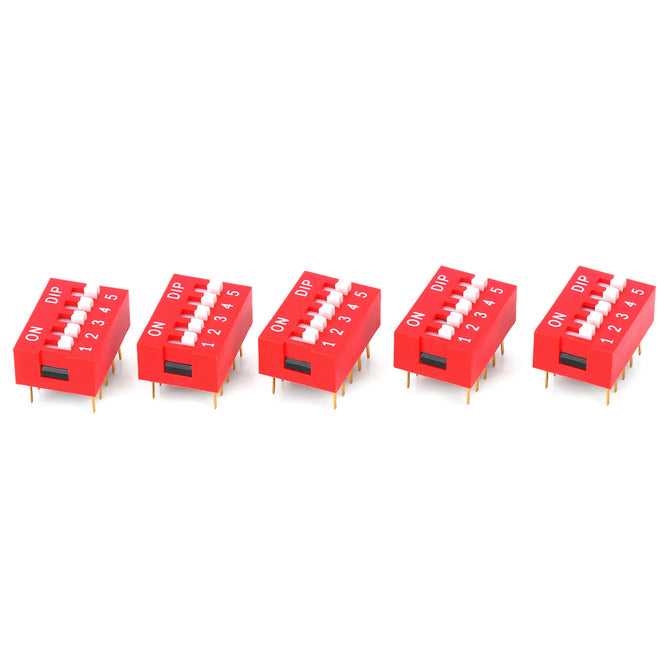

YS4 DIY 5-Digit Toggle Switches - Red + White (5 PCS)
US$ 2.55
US$ 7.55
: In stock
: 249147
Brand N/A Model YS4 Quantity 5 Color Red + white Material ABS + electronic components Features Engineering plastic UL 94V-0 high temperature material Specification Insulation resistance: Minimum 500 Mohms at...
Share:
| Brand | N/A |
| Model | YS4 |
| Quantity | 5 |
| Color | Red + white |
| Material | ABS + electronic components |
| Features | Engineering plastic UL 94V-0 high temperature material |
| Specification | Insulation resistance: Minimum 500 Mohms at DC 500V |
| Application | Great for DIY project |
| English Manual/Spec | Yes |
| Other | Rated current: 25mA / DC 24V (switching current), 100mA / DC 24V (non-switching current); Touch impedance: Initial value of 50 milliohms, after measured 100 milliohms; Withstand voltage: DC 500V / minute; Operating force: Max 1000gf; Lifetime measurement: 5000 times; Fixed contact and the movable contacts: copper tinned; Soldering methods: 1, Manual soldering: = 3s below 350'C or >/=5s within 270'C when below 30W; 2, Reflow soldering: Within 30s when 265'C; 3, Wave soldering: Within 10s when 260'C |
| Packing List | 5 x Toggle switches |
