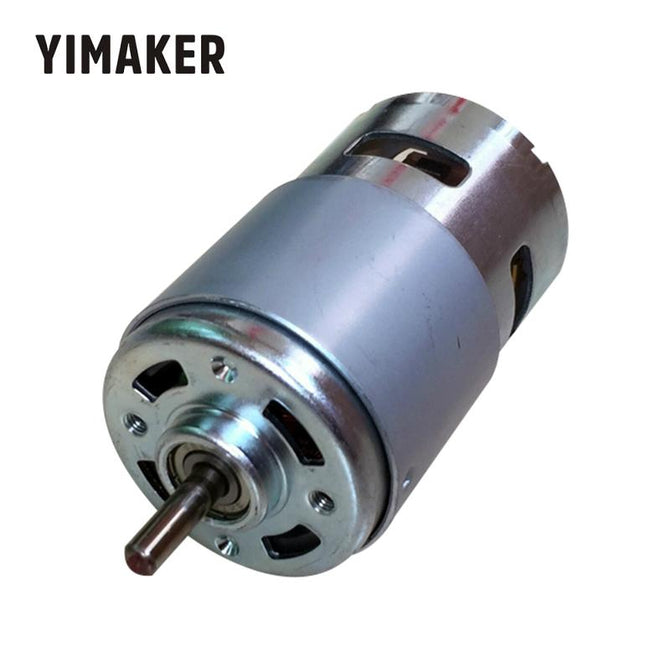

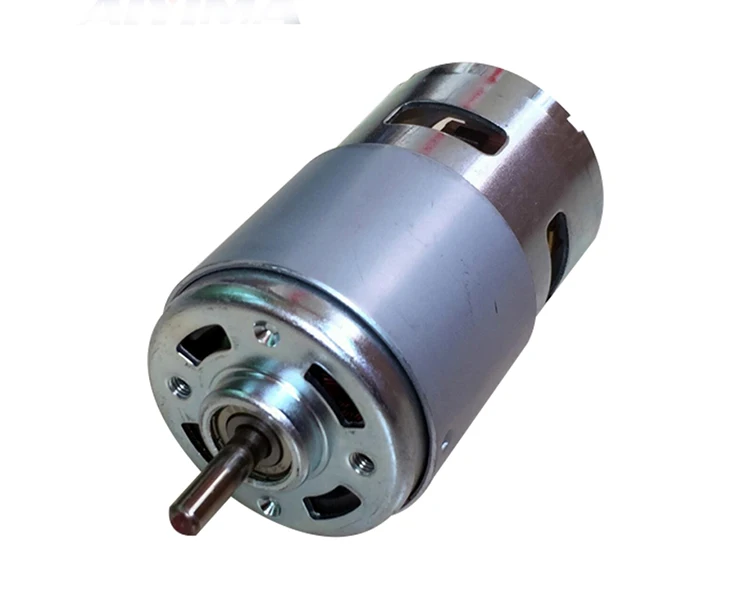

YIMAKER 795 DC Motor Large Torque High Power DC12V-24V Universal Motor Double Ball Bearing Mute High Speed Round Axis

US$ 18.80 US$ 20.12

: In stock

:

Video:  https://youtu.be/lAQN98aLcoo Product parameters: Rated voltage: DC12V -24V Universal No-load current: 2.05A (the size of the current fully reflects the solid workmanship) No load speed: 12V10000-24V20000 turn Motor step height:...
Speed(RPM)

Video:  https://youtu.be/lAQN98aLcoo

Product parameters:

Rated voltage: DC12V -24V Universal

No-load current: 2.05A (the size of the current fully reflects the solid workmanship)

No load speed: 12V10000-24V20000 turn

Motor step height: 4mm

Motor step diameter: 17.5mm

Motor diameter: 42mm

795 Motor length (without shaft): 70.5mm

Out shaft length: 16mm

Motor tail step height: about 5mm

Motor tail shaft length: about 6mm

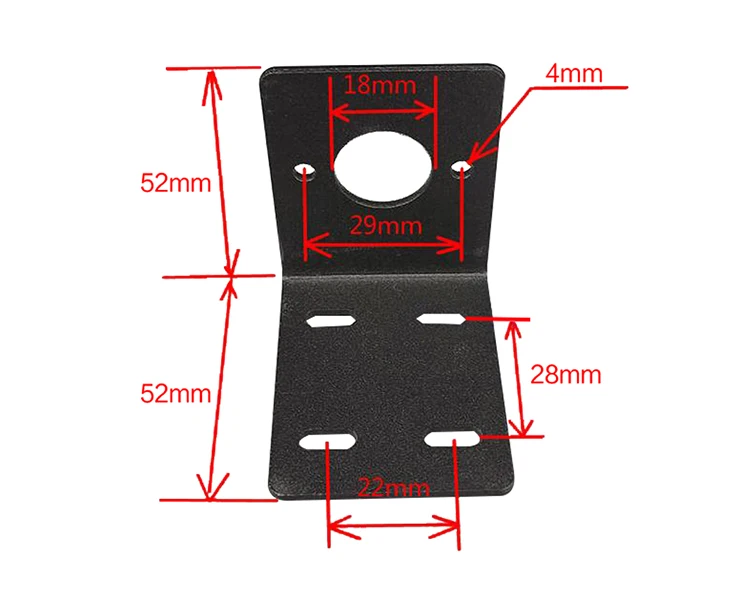

Mounting hole pitch: approx. 29mm

Mounting hole diameter: M4 screw

Motor weight: 400g

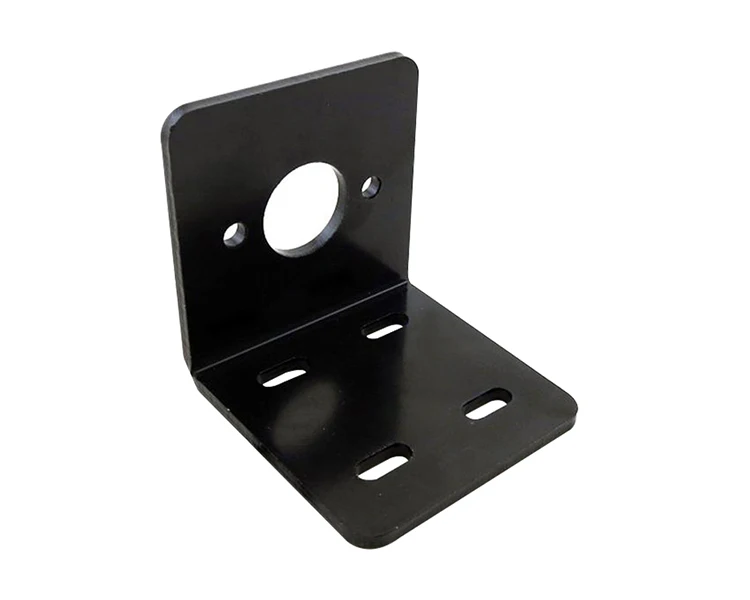

Stent weight:105g

Note:

It is recommended to use 10-15A power supply
