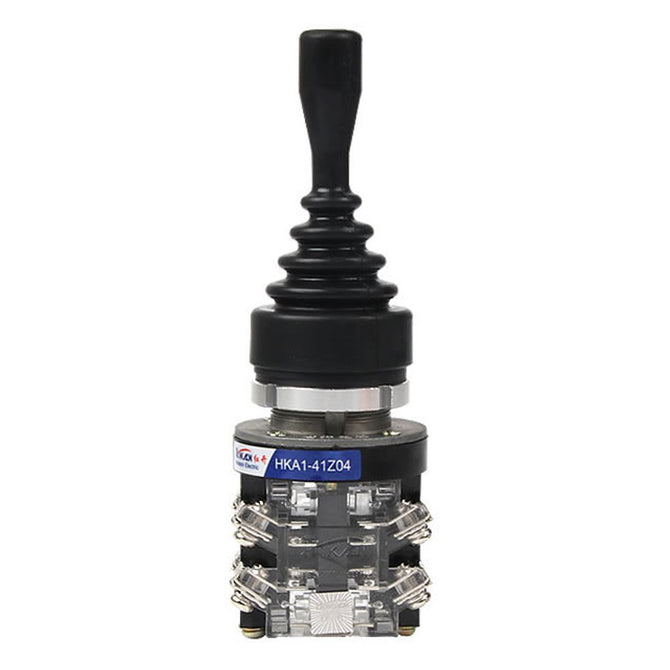

YENISEI HKA1-41Z04 Joystick Monolever Momentary Switch, AC 380V 15Amp 4NO 4-Position
US$ 16.11
US$ 24.35
: In stock
: 520912
Joystick Switch Model: HKA1-41Z04; Action Type: Momentary.Voltage Current: AC 380V 15A; Contact Type: 4NO.Motor Life: 100 Thousands; Electrical Life: 100 Thousands.Fixing Hole Diameter: 30mm/1.18"; Total length is about: 146mm.Widely used...
Share:
Joystick Switch Model: HKA1-41Z04; Action Type: Momentary.
Voltage Current: AC 380V 15A; Contact Type: 4NO.
Motor Life: 100 Thousands; Electrical Life: 100 Thousands.
Fixing Hole Diameter: 30mm/1.18"; Total length is about: 146mm.
Widely used in automation and security, install the system and control, power monitoring, critical power and cooling service, etc.
Operate at four directions, with the 30 degrees declination of operation handle, momentary type operation.
Voltage Current: AC 380V 15A; Contact Type: 4NO.
Motor Life: 100 Thousands; Electrical Life: 100 Thousands.
Fixing Hole Diameter: 30mm/1.18"; Total length is about: 146mm.
Widely used in automation and security, install the system and control, power monitoring, critical power and cooling service, etc.
Operate at four directions, with the 30 degrees declination of operation handle, momentary type operation.
| General | |
|---|---|
| Brand | YENISEI |
| Model | HKA1-41Z04 |
| Quantity | 1 piece |
| Material | Rubber + metal + ABS plastic |
| Specification | |
| Power Range | AC380 |
| Max. Current | 15 |
| Working Temperature | 0-60¡æ |
| Other Features | |
| Other Features | Features: AC 380V 15A, 4NO; Fixing Hole Diameter: 30mm |
| Certification | ROHS |
| Dimensions & Weight | |
|---|---|
| Dimensions | 5.71 in x 1.89 in x 1.89 in (14.5 cm x 4.8 cm x 4.8 cm) |
| Weight | 6.88 oz (195 g) |
| Packing List |
|---|
|
1 x Joystick Switch |
