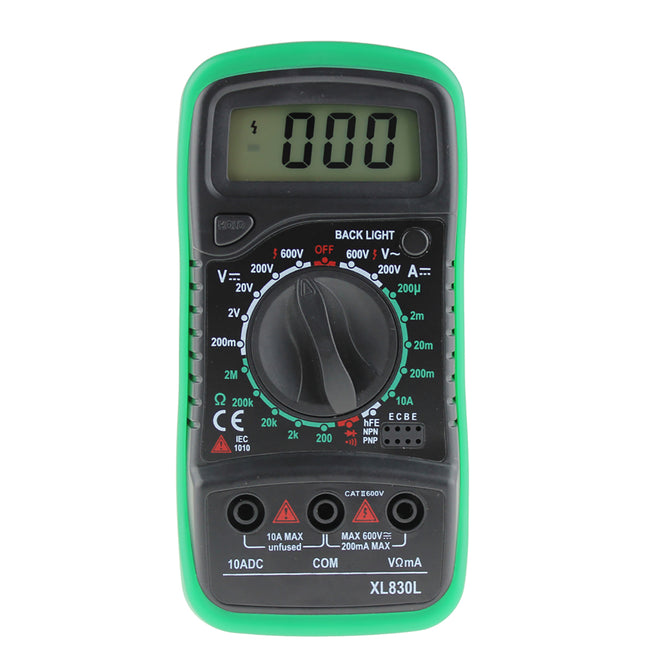

XL830L Digital LCD Multimeter Voltmeter Ammeter Tester - Green
US$ 9.16
US$ 14.85
: In stock
: 478298
Features:This Heavy-Duty General purpose multimeter features a Clear, Easy to Read LCD Display, with blue Back LightOverload Protection on all rangesHoused in a rugged rubber boot with integral standLow Battery...
Share:
Features:
This Heavy-Duty General purpose multimeter features a Clear, Easy to Read LCD Display, with blue Back Light
Overload Protection on all ranges
Housed in a rugged rubber boot with integral stand
Low Battery Voltage Indication
Portable & Compact Design
Data Hold Function & Diode Test Facility
20 Position Rotary Switch
Removable Thick rubber casing protects Multimeter from splashes & Minor Bumps
Measures AC & DC Voltage, DC Current, Resistance, Audible Continuity, Diode/Transistor Verification Mode
Specifications:
DC Voltage: 200mV/2V/20V/200V/600V¡À(0.5%)
AC Voltage: 200V/600V¡À(1.0%)
DC Current: 200¦ÌA/2mA/20mA/200mA/10A¡À(1.0%)
Resistance: 200¦¸/2k¦¸/20k¦¸/200¦¸/2M¦¸¡À(1.0%)
Triode Measurement: Yes (PNP/NPN Triode hFE)
Diode Measurement: Yes
Input Resistance: 1M¦¸
Battery Type: 9V, 6F22 (NOT included)
This Heavy-Duty General purpose multimeter features a Clear, Easy to Read LCD Display, with blue Back Light
Overload Protection on all ranges
Housed in a rugged rubber boot with integral stand
Low Battery Voltage Indication
Portable & Compact Design
Data Hold Function & Diode Test Facility
20 Position Rotary Switch
Removable Thick rubber casing protects Multimeter from splashes & Minor Bumps
Measures AC & DC Voltage, DC Current, Resistance, Audible Continuity, Diode/Transistor Verification Mode
Specifications:
DC Voltage: 200mV/2V/20V/200V/600V¡À(0.5%)
AC Voltage: 200V/600V¡À(1.0%)
DC Current: 200¦ÌA/2mA/20mA/200mA/10A¡À(1.0%)
Resistance: 200¦¸/2k¦¸/20k¦¸/200¦¸/2M¦¸¡À(1.0%)
Triode Measurement: Yes (PNP/NPN Triode hFE)
Diode Measurement: Yes
Input Resistance: 1M¦¸
Battery Type: 9V, 6F22 (NOT included)
General | |
---|---|
Model | XL830L |
Quantity | 1 piece |
Form Color | Black + Green |
Material | Plastic |
Specification | |
Max. Display | 1999 |
Battery Number | 1 |
Battery included or not | No |
Dimensions & Weight | |
---|---|
Dimensions | 5.71 in x 2.76 in x 1.57 in (14.5 cm x 7 cm x 4 cm) |
Weight | 4.3 oz (122 g) |
Packing List |
---|
1 x Digital LCD Multimeter 2 x Test Leads 1 x Manual |
