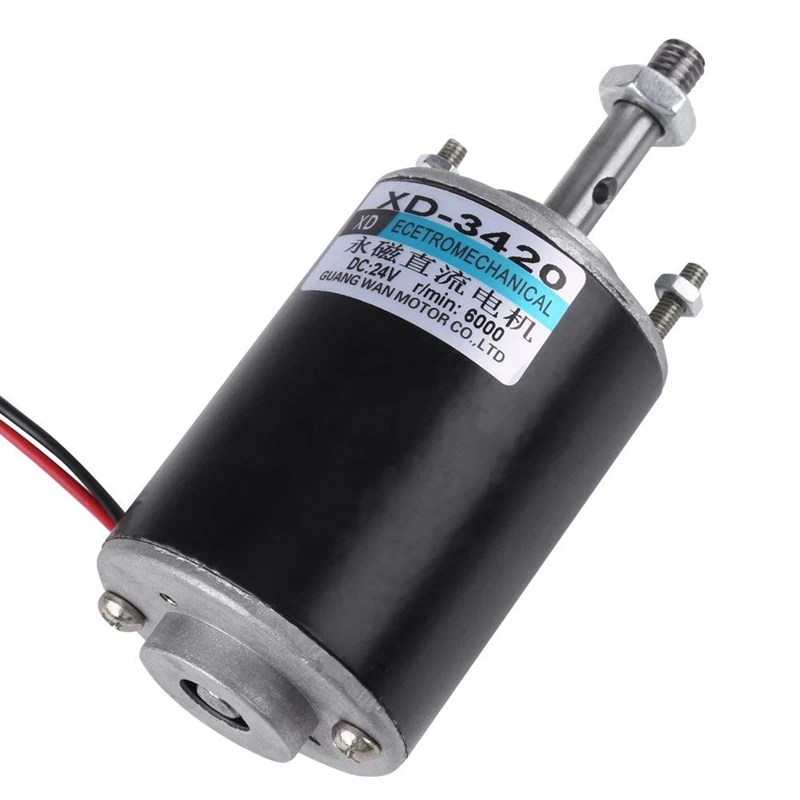

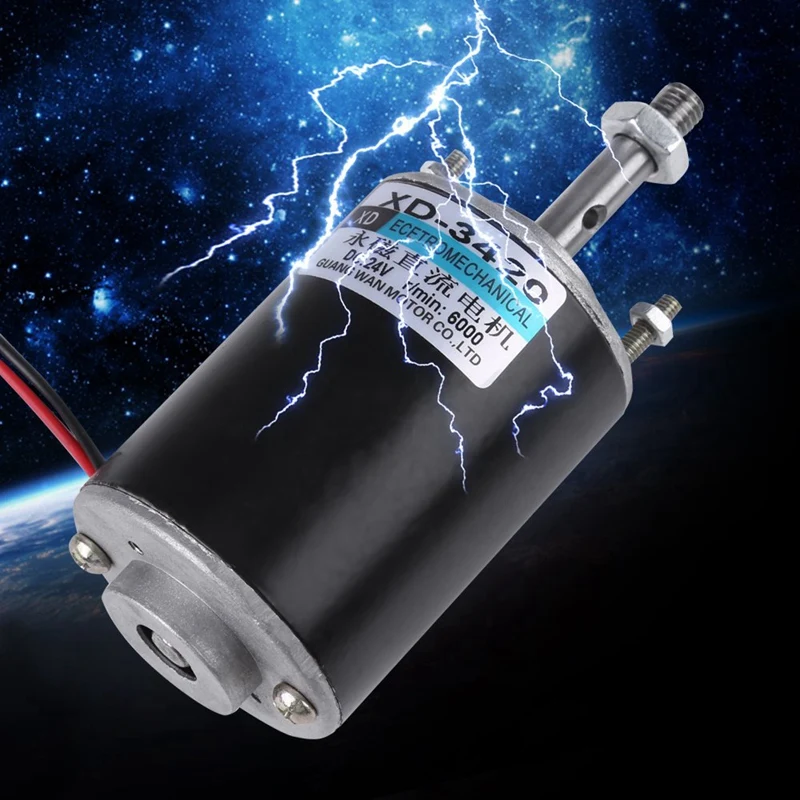

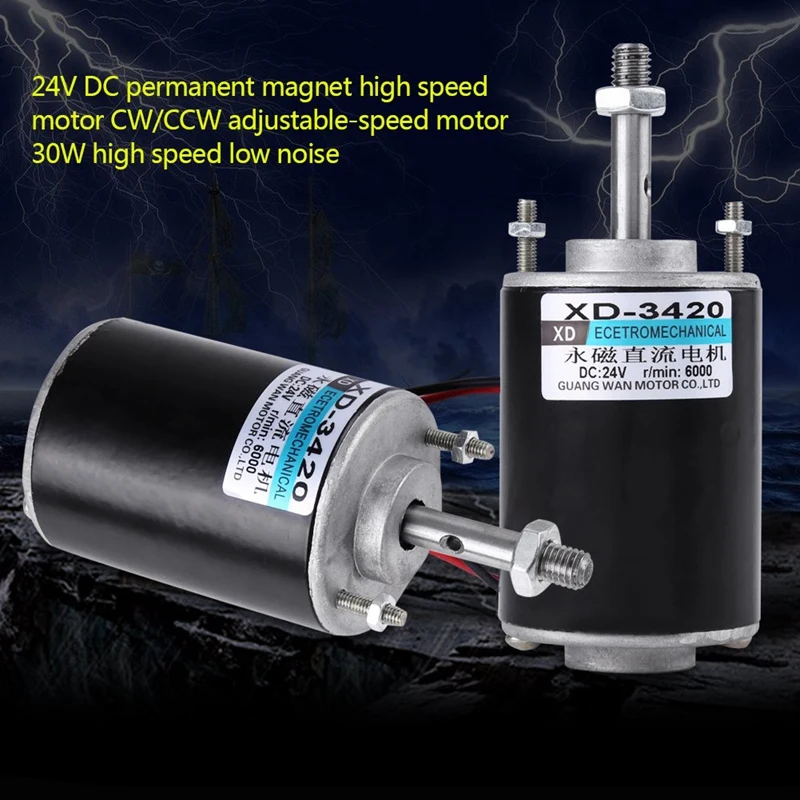

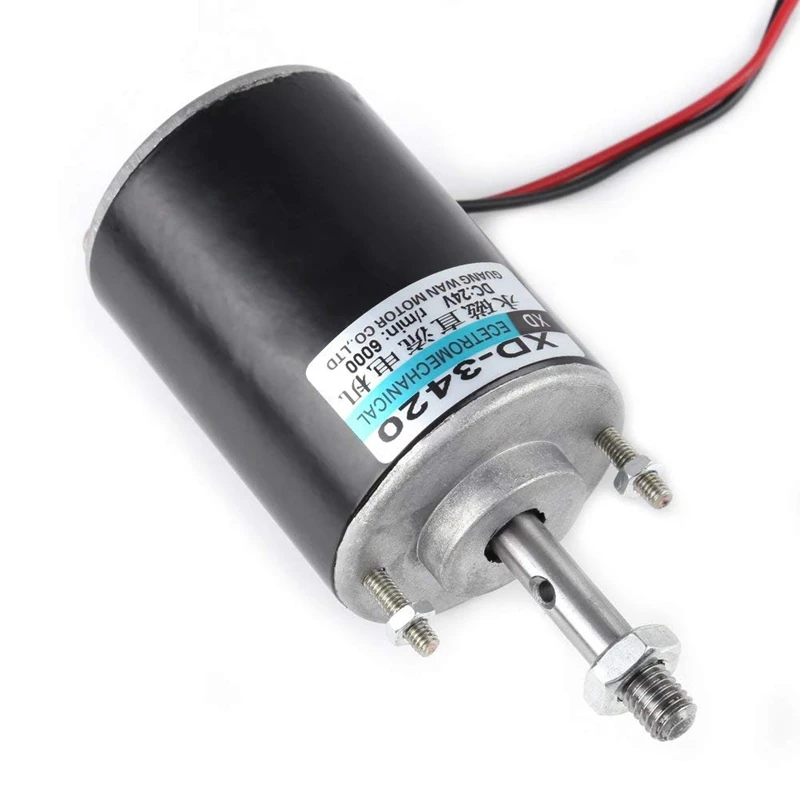

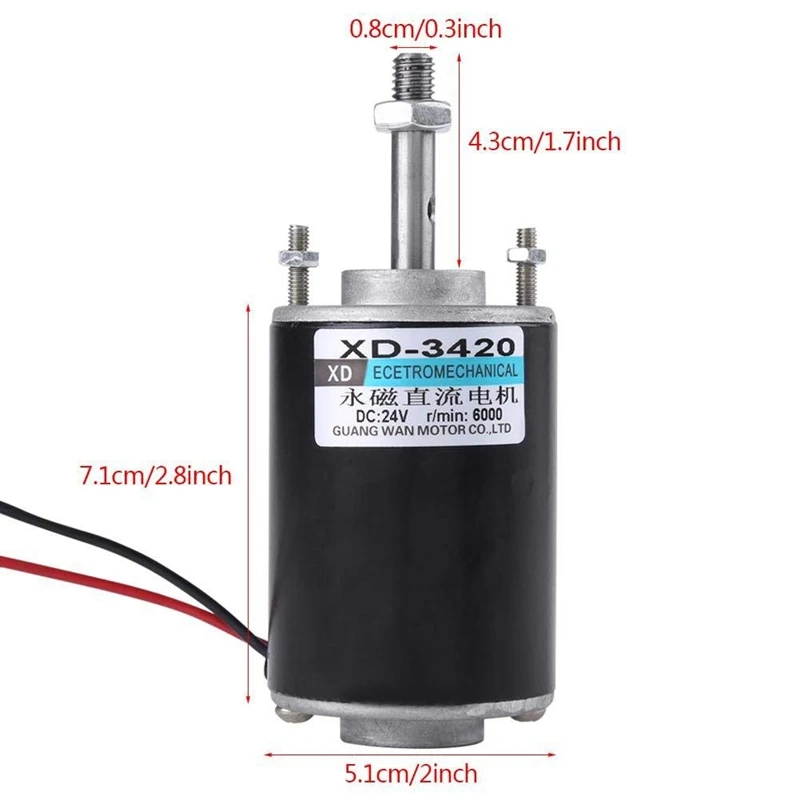

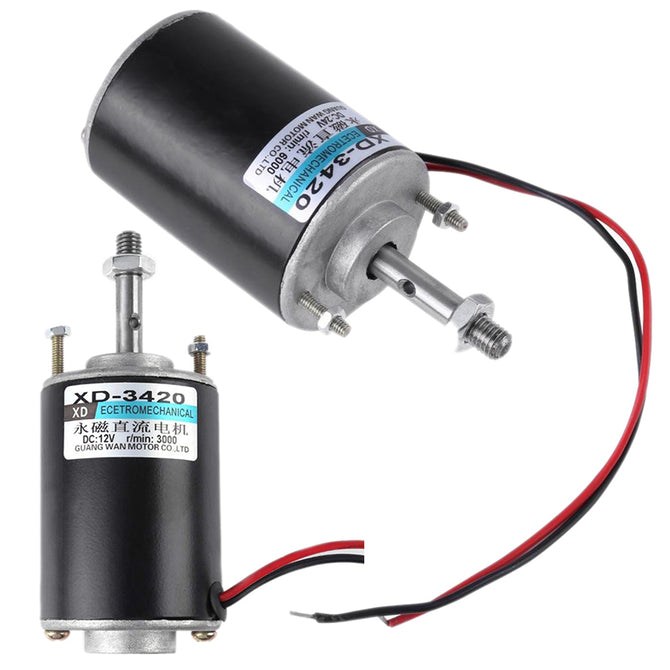

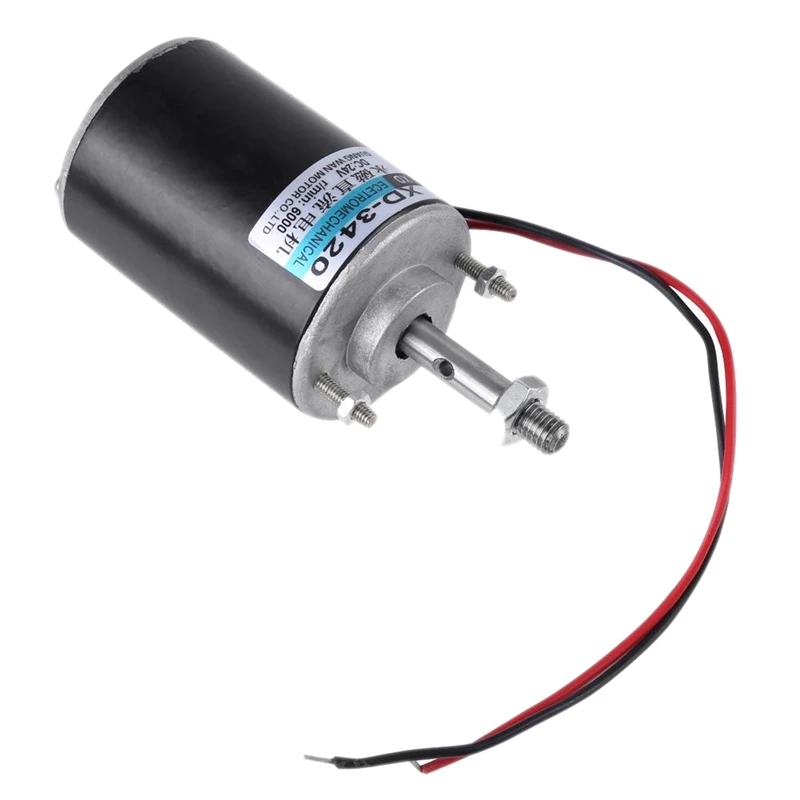

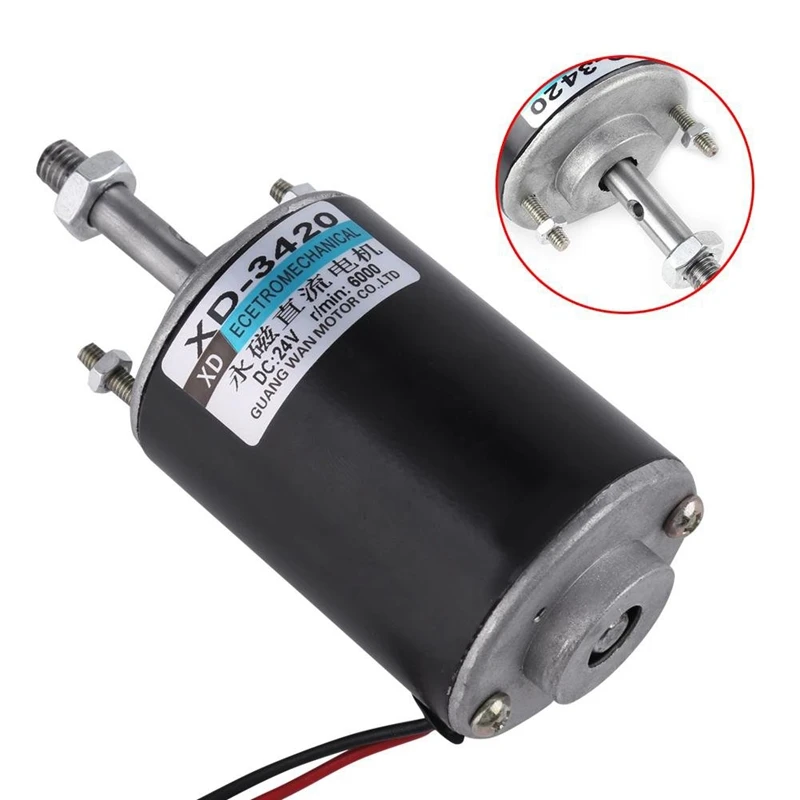

Xd-3420 30W High Speed Cw/Ccw Permanent net Dc Motor For Diy Generator

Can be applied in cotton candy machine, small cutting bench, grinding machine, equipment and other mechanical equipment
The stator windings of the motor are copper wire, CW/CCW control
This permanent net DC motor is perfect for DIY generator
Colour: Black
material: metal
Model: XD-3420
Voltage(Optional): DC12V/24V
Power: 30W
Speed: 3000RPM(12V), 6000RPM(24V)
Voltage No Load Speed No Load Current Rated revolution Rated current locked-rotor current
12V 3000RPM 2.42 2400 2.42 3.1
24V 6000RPM 2.76 5100 2.76 3.37
Package Included:
1 x Permanent net DC Motor
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
