XBee module Series upgrade S2 S2C Zigbee Mesh module wireless data transmission module imported wholesale bulk price
US$ 31.43
US$ 33.18
: In stock
: 63141
Description: This is the XBee XB24-Z7WIT-004 module from Digi. Series 2 improves on the power output and data protocol. Series 2 modules allow you to create complex mesh...
Share:
Description:

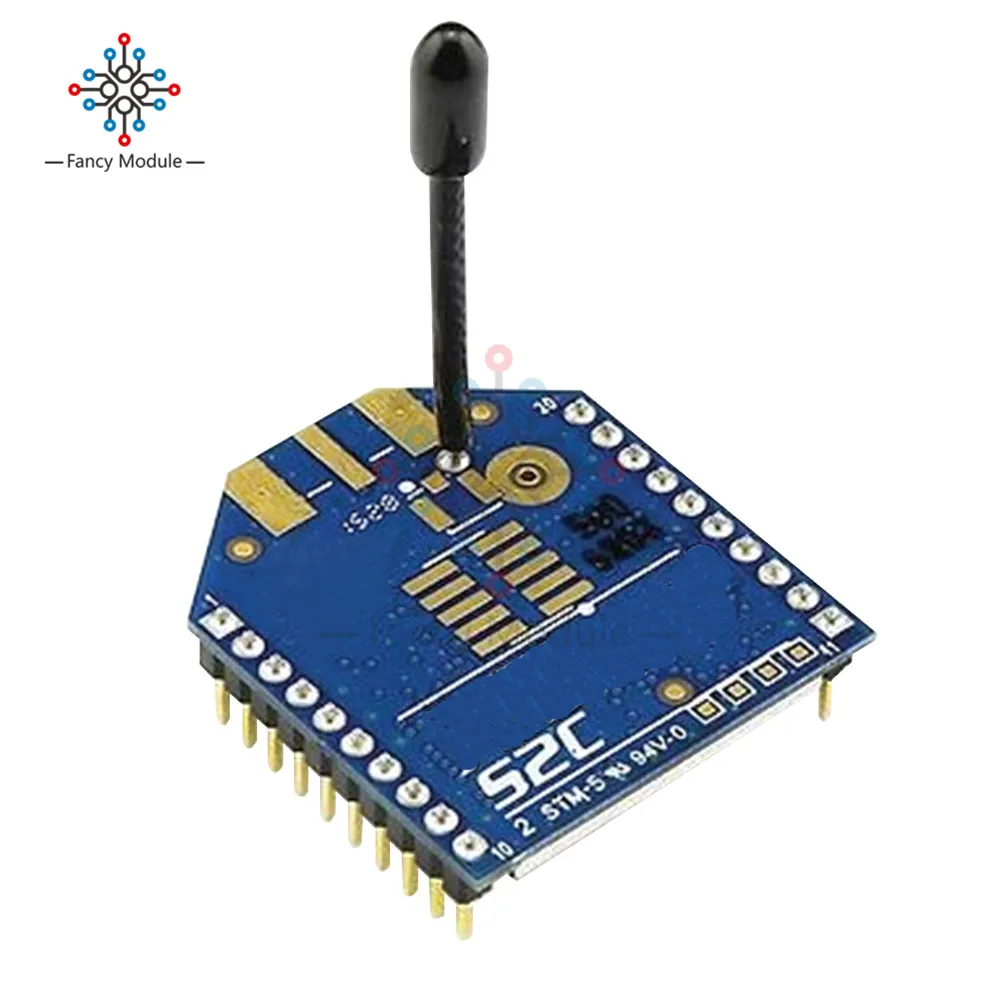

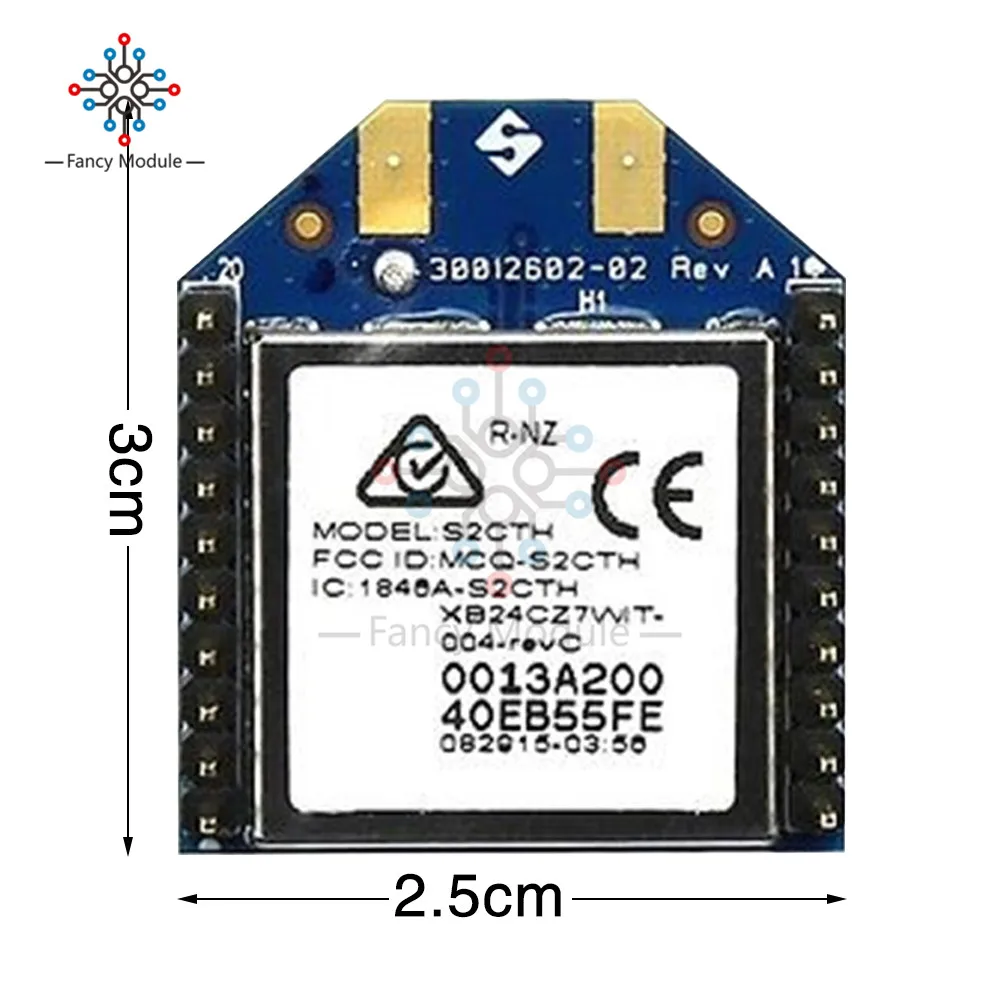

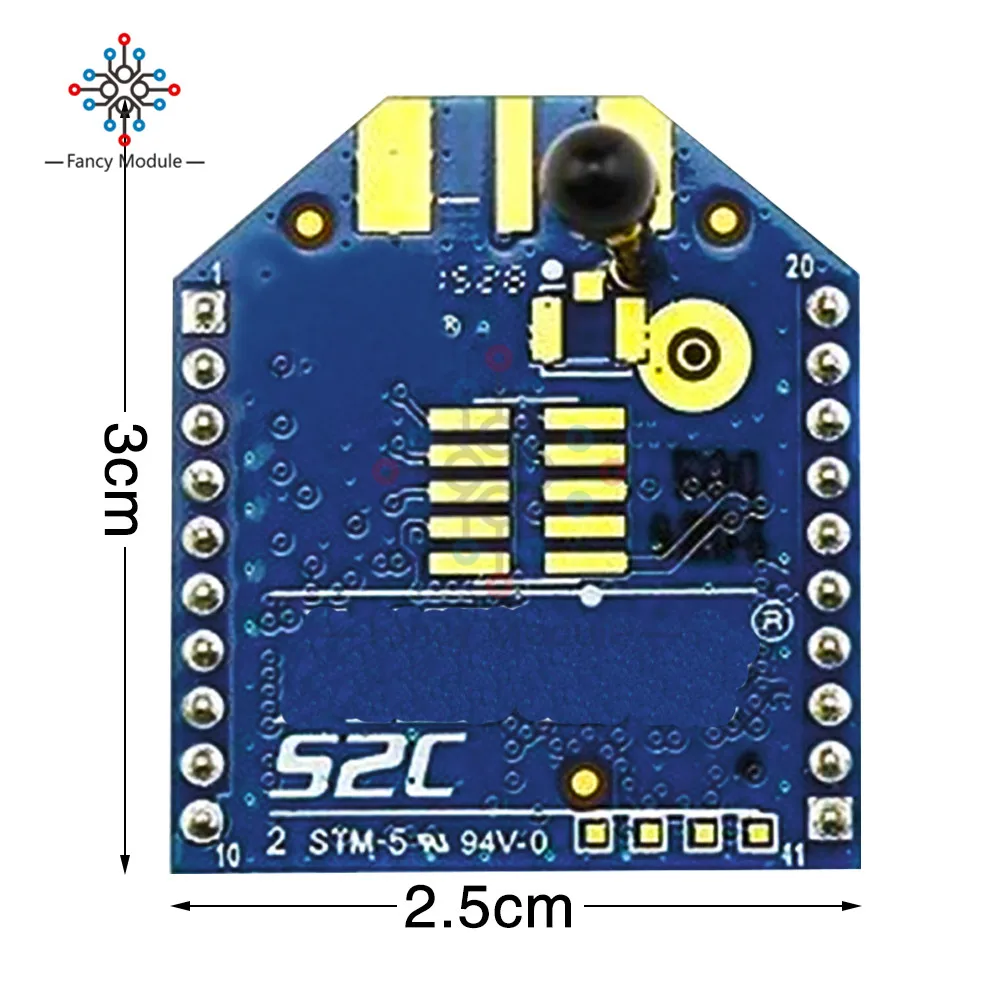

This is the XBee XB24-Z7WIT-004 module from Digi. Series 2 improves on the power output and data protocol. Series 2 modules allow you to create complex mesh networks based on the XBee ZB ZigBee mesh firmware. These modules allow a very reliable and simple communication between microcontrollers, computers, systems, really anything with a serial port! Point to point and multi-point networks are supported.These are essentially the same hardware as the older Series 2.5, but have updated firmware. They will work with Series 2.5 modules if you update the firmware through X-CTU.
Note: Series 1 and Series 2 XBee modules have the same pin-out. However, Series 1 modules cannot communicate with Series 2 modules.
Specification:
3.3V @ 40mA
250kbps Max data rate
2mW output (+3dBm)
400ft (120m) range
Built-in antenna
Fully FCC certified
6 10-bit ADC input pins
8 digital IO pins
128-bit encryption
Local or over-air configuration
AT or API command set
Datasheet and document: please visit digi website
Package Included:
1 X XBee 2mW Wire Antenna
