WW CW LED Dimmer Controller 12V 24V 2CH 10A RF 2.4G Wireless Remote Smart Wifi Dimmer Switch for Dual White CT LED Strip Light

US$ 16.58 US$ 29.00

: In stock

: ai202668rs

Dual Color WW CW LED Dimmer Controller 2 Channel/Step-less dimming/Wireless remote control/Auto-transmitting/Synchronize Features: ● 4096 levels 0-100% dimming smoothly without any flash. ● Match with Skydance’s 2.4G single zone or...
color
V2 and R7-1 Set
V2 and RT2 Set
V2 and R12 Set
V2 and R2 Set
V2 and R7 Set-4Zone
V2 and RT7 Set-4Zone
V2 and RS2 Set-4Zone
V2 and Wifi Set
V2 Only
Wifi Only
R7-1 Remote Only
RT2 Remote Only
RT7 Remote Only
R12 Remote Only
R7 Remote Only

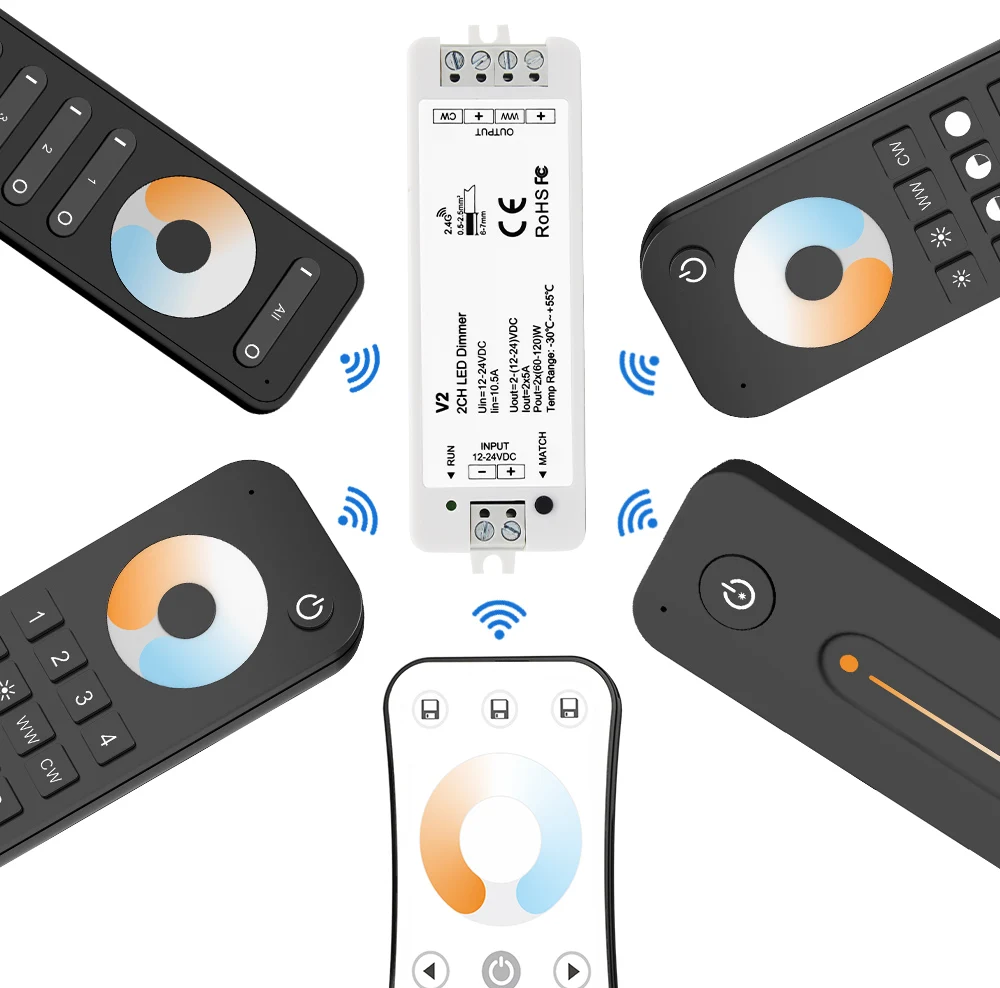

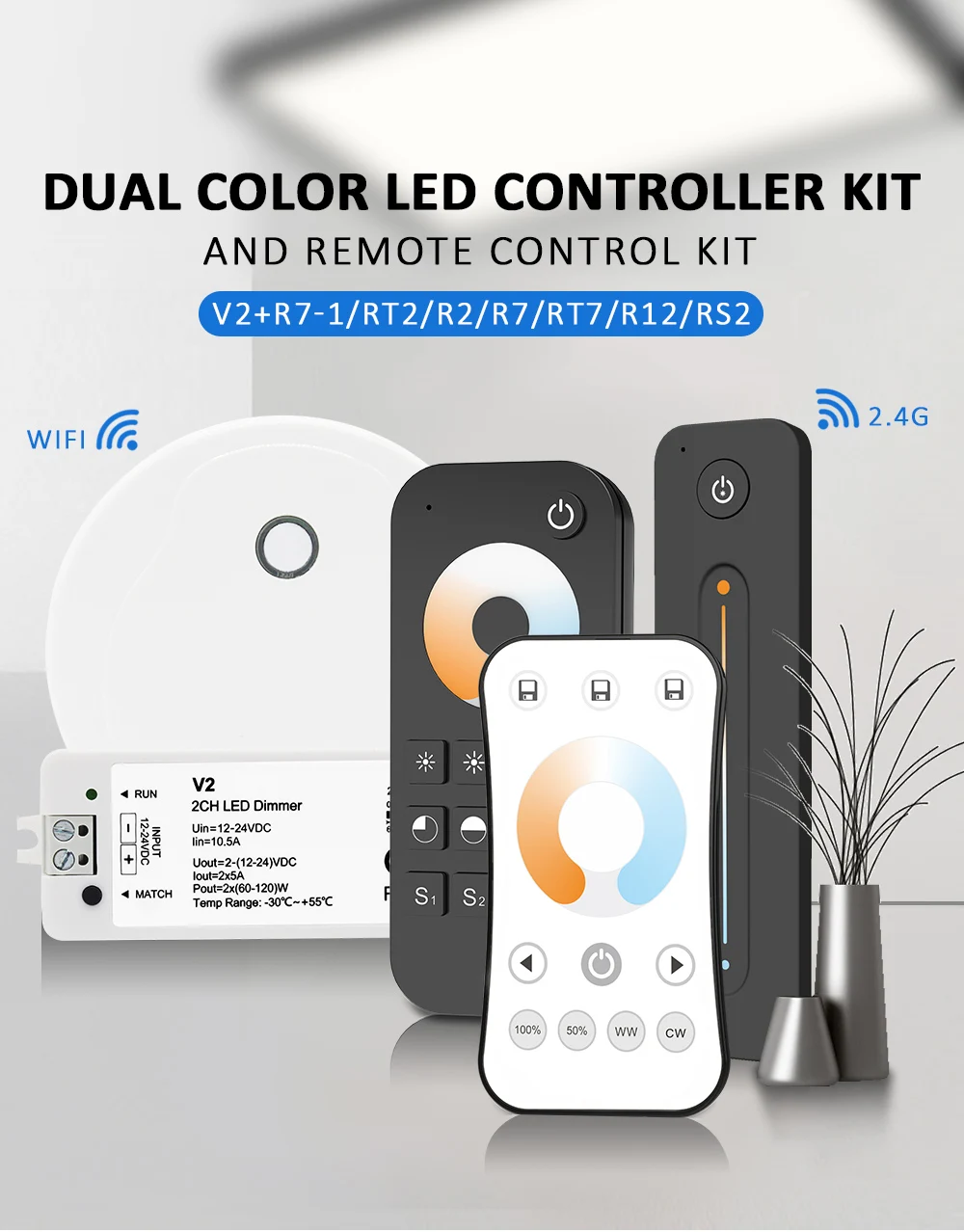

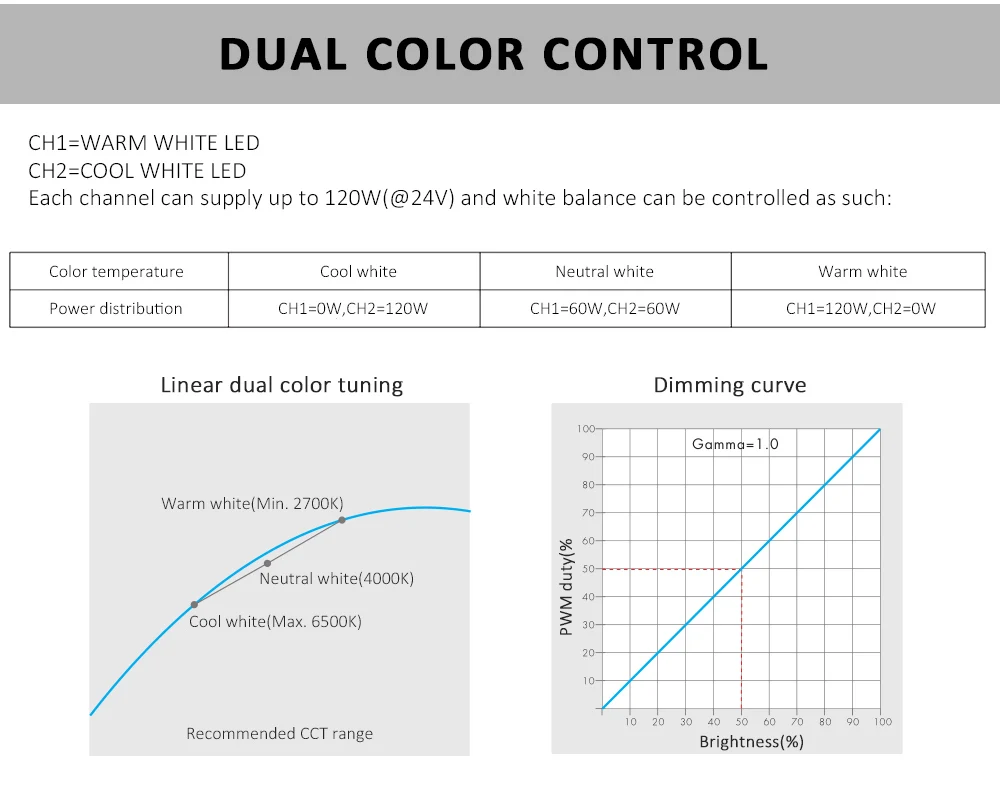

Dual Color WW CW LED Dimmer Controller

2 Channel/Step-less dimming/Wireless remote control/Auto-transmitting/Synchronize

Features:

● 4096 levels 0-100% dimming smoothly without any flash. ● Match with Skydance’s 2.4G single zone or multiple zone dual color or single color remote control. ● One RF controller accept up to 10 remote control. ● Auto-transmitting function: Controller automatically transmit signal to another controller with 30m control distance. ● Synchronize on multiple number of controllers.

Specifications:

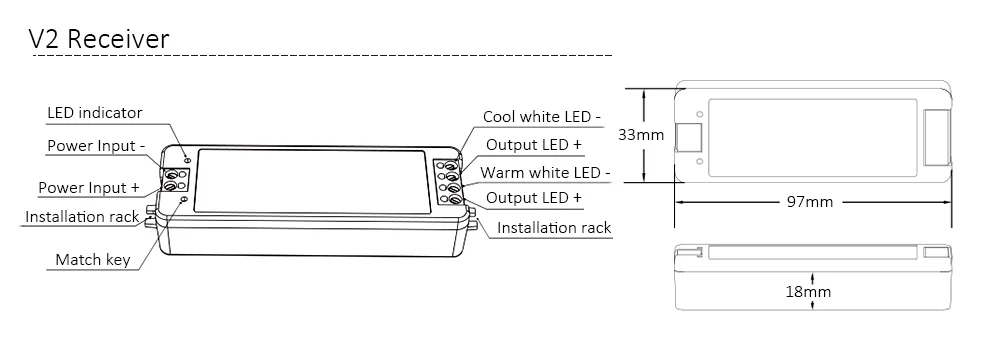

Model:MJJCLED-V2(constant voltage led dimmer ) Input Voltage: 12-24V DC Output Voltage: 12-24V DC Output Current: 10A (2 Channel * 5A/Channel) Output power: 2x(60-120)W Output type: Constant voltage Input signal:RF 2.4GHz Dimming leve:4096 levels Dimming range:0 -100% Product size: 97x33x18mm

How to Match Remote Control ?

End user must be pair the remote to the receiver before using,the steps as follows: *** Match: Short press match key, immediately press on/off key of the remote. *** Delete: Press and hold match key for 5s to delete all match, The light blinks 5 times means all matched remotes were deleted.

Main Functions:

One V2 receiver can be controlled by max 10 pieces remote within 30m distance

Auto-transmitting:

One receiver can transmit the signals from the remote to another receiver within 30m, as long as there is a receiver within 30m, the remote control distance can be limitless.

Auto-synchronization:

Multiple receivers within 30m distance can work synchronously when they are controlled by the same remote. Receiver placement may offer up to 30m communication distance. Metals and other metal materials will reduce the range. Strong signal sources such as WiFi routers and microwave ovens will affect the range. We recommend for indoor applications that receiver placements should be no further apart than15m.

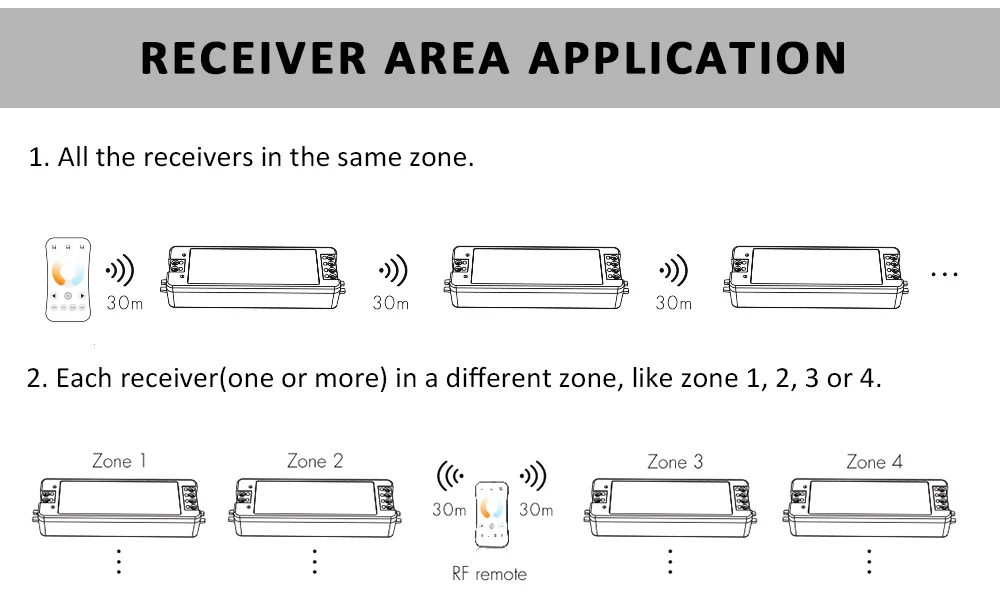

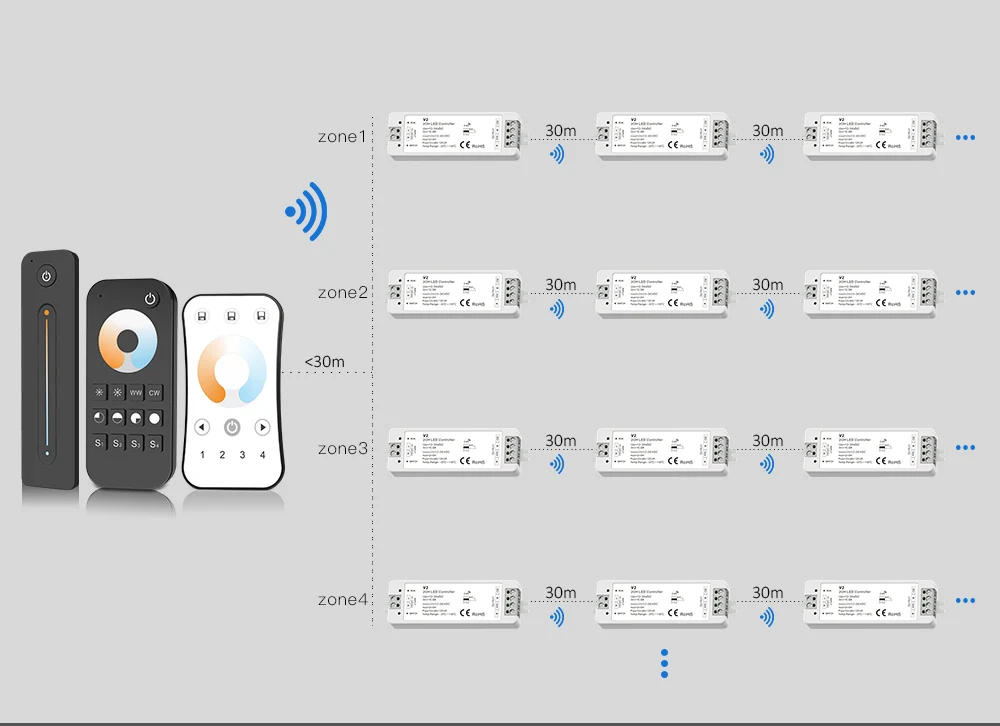

Multi Zone Functions:

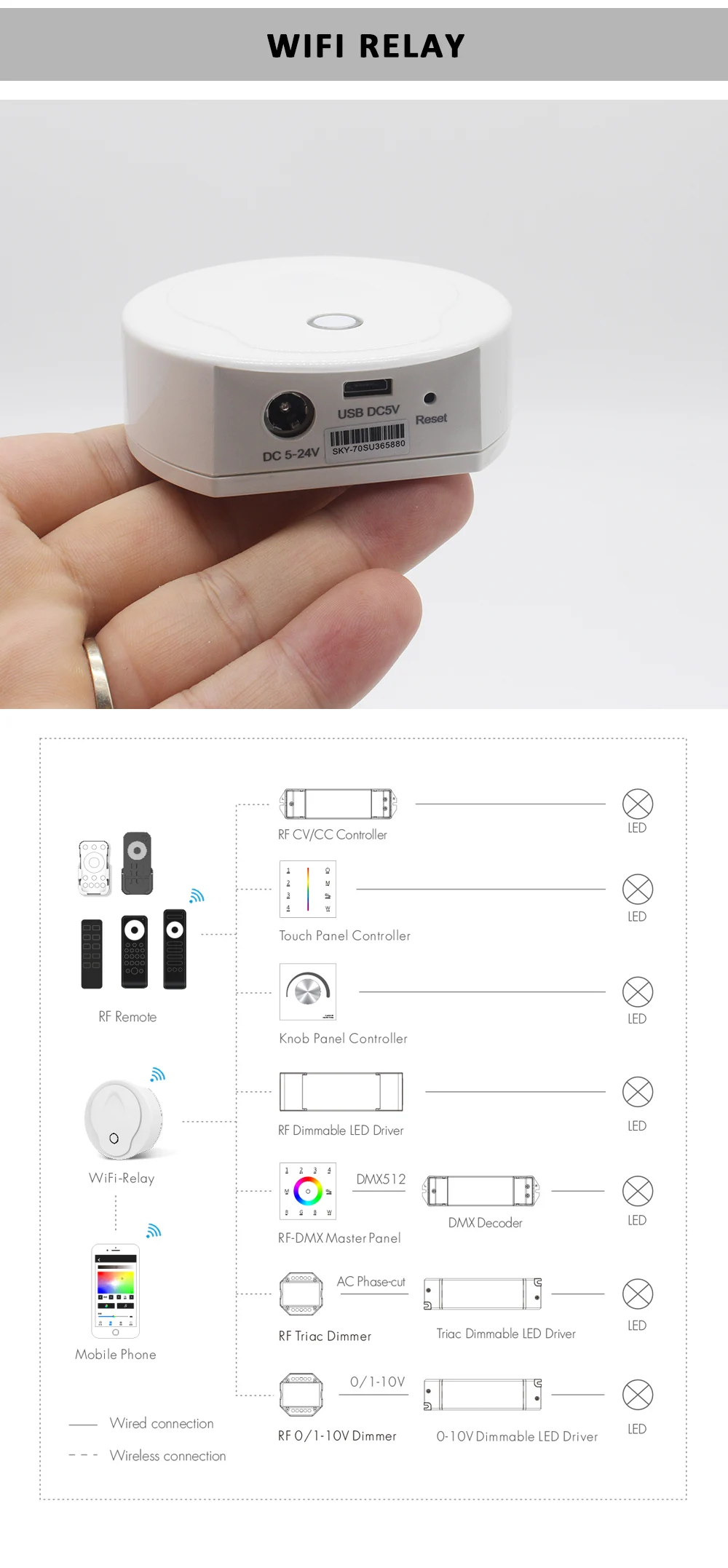

Each receiver(one or more) in a different zone, like zone 1, 2, 3 or 4. They can be working synchronously and independently. Max up to 16 zone if add our Wifi Relay,play it on Mobile.

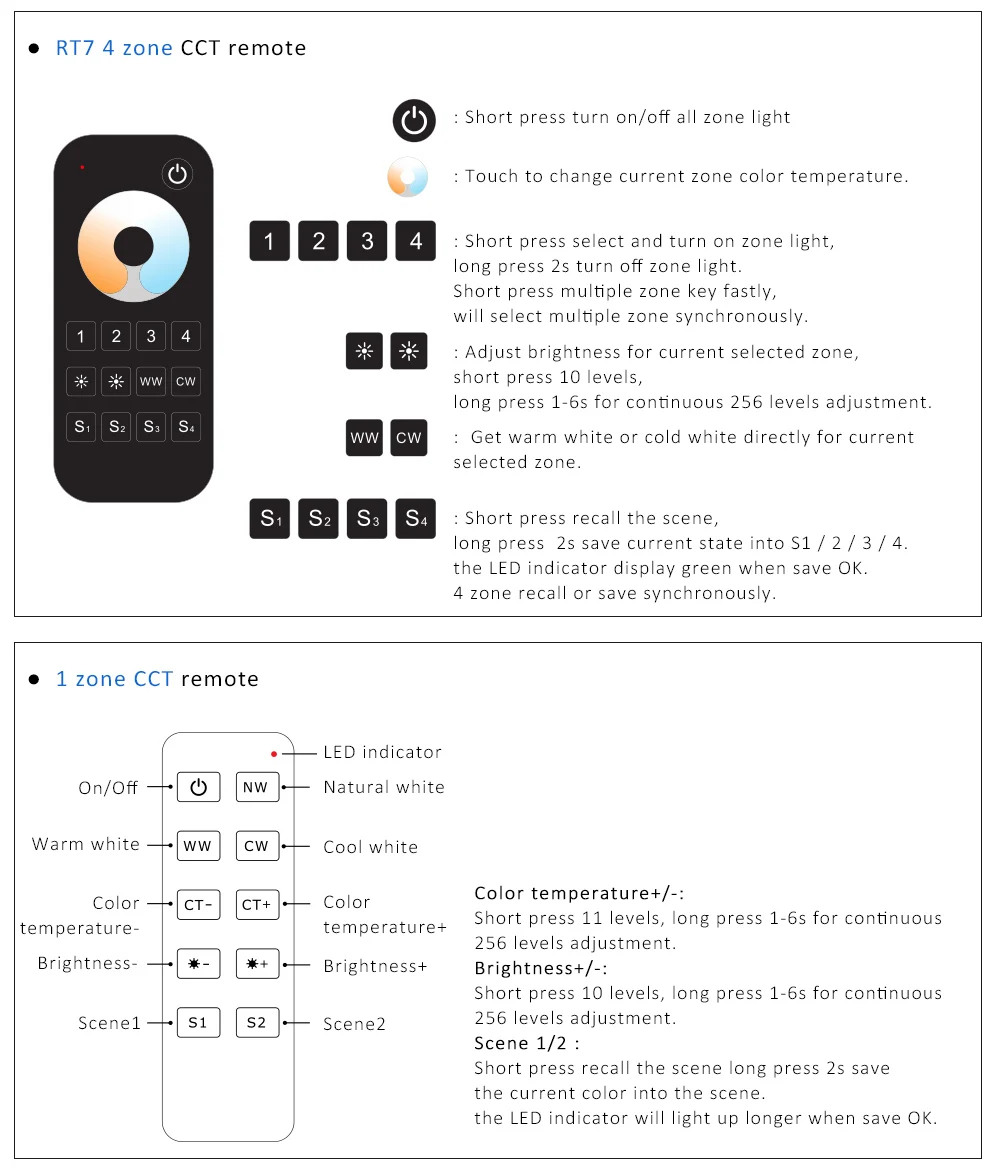

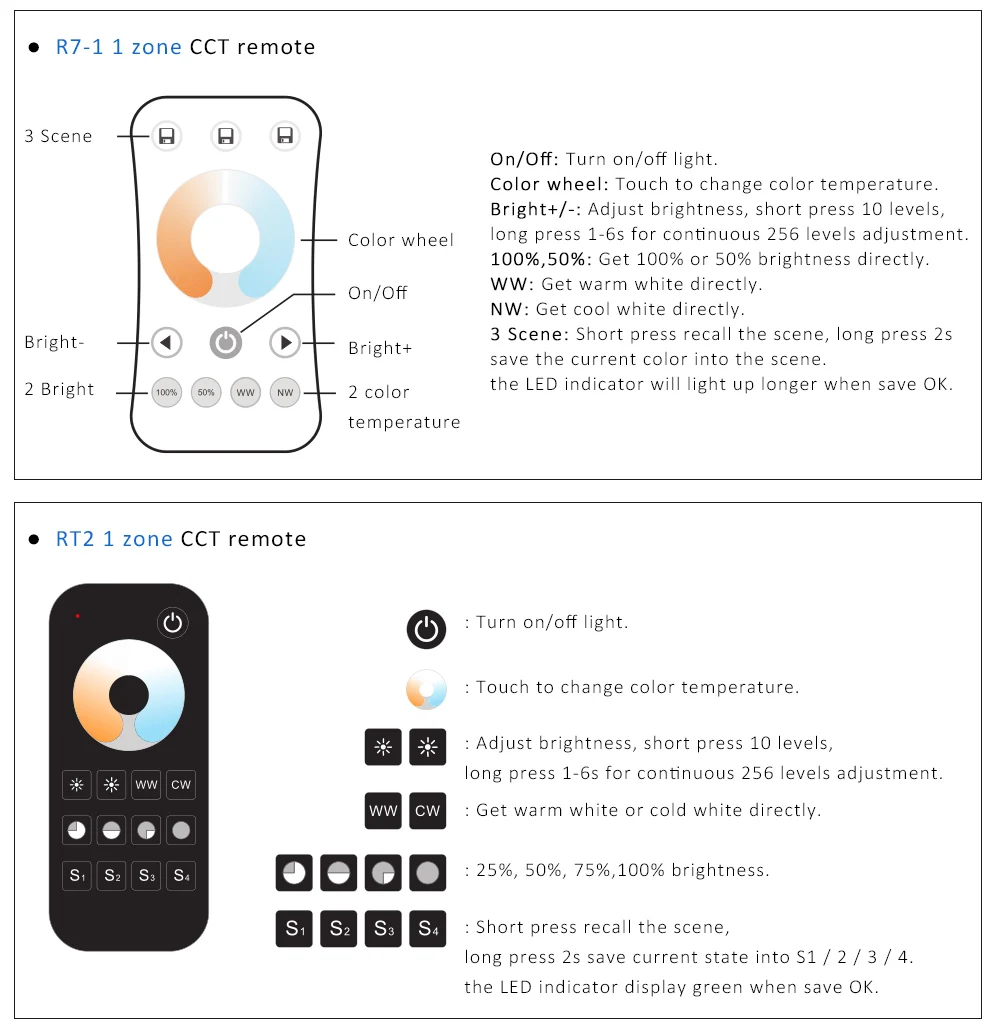

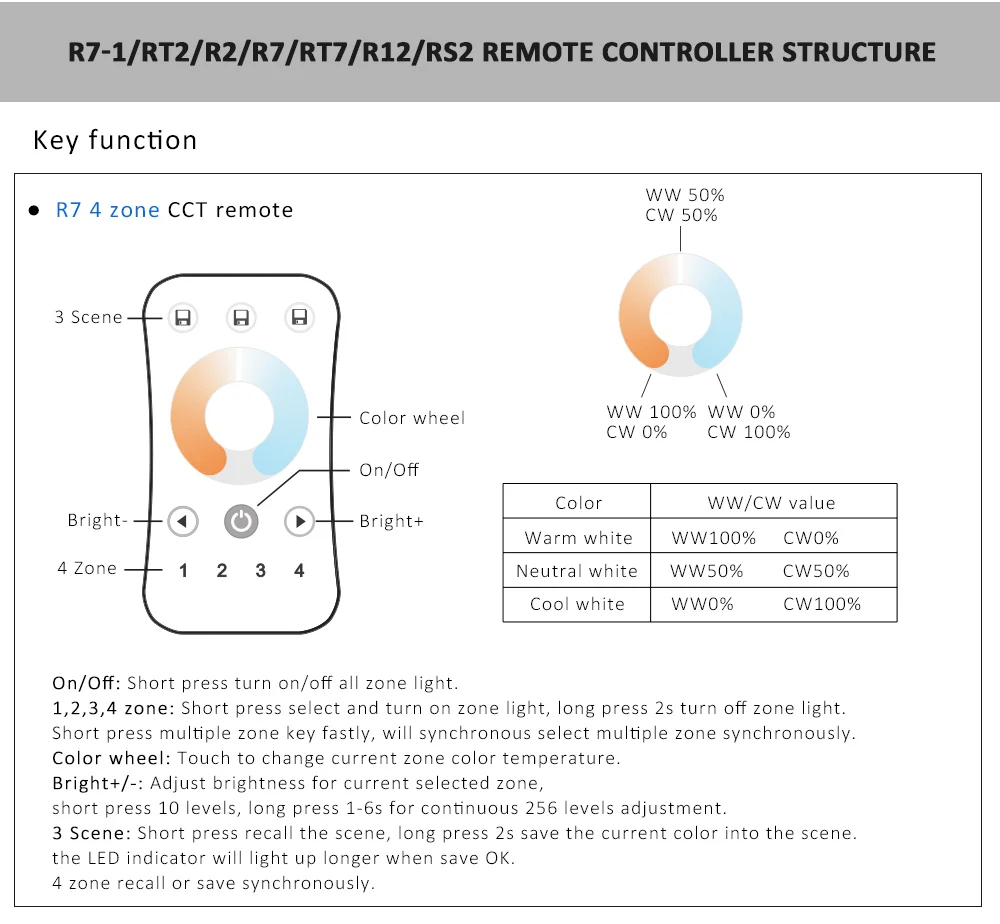

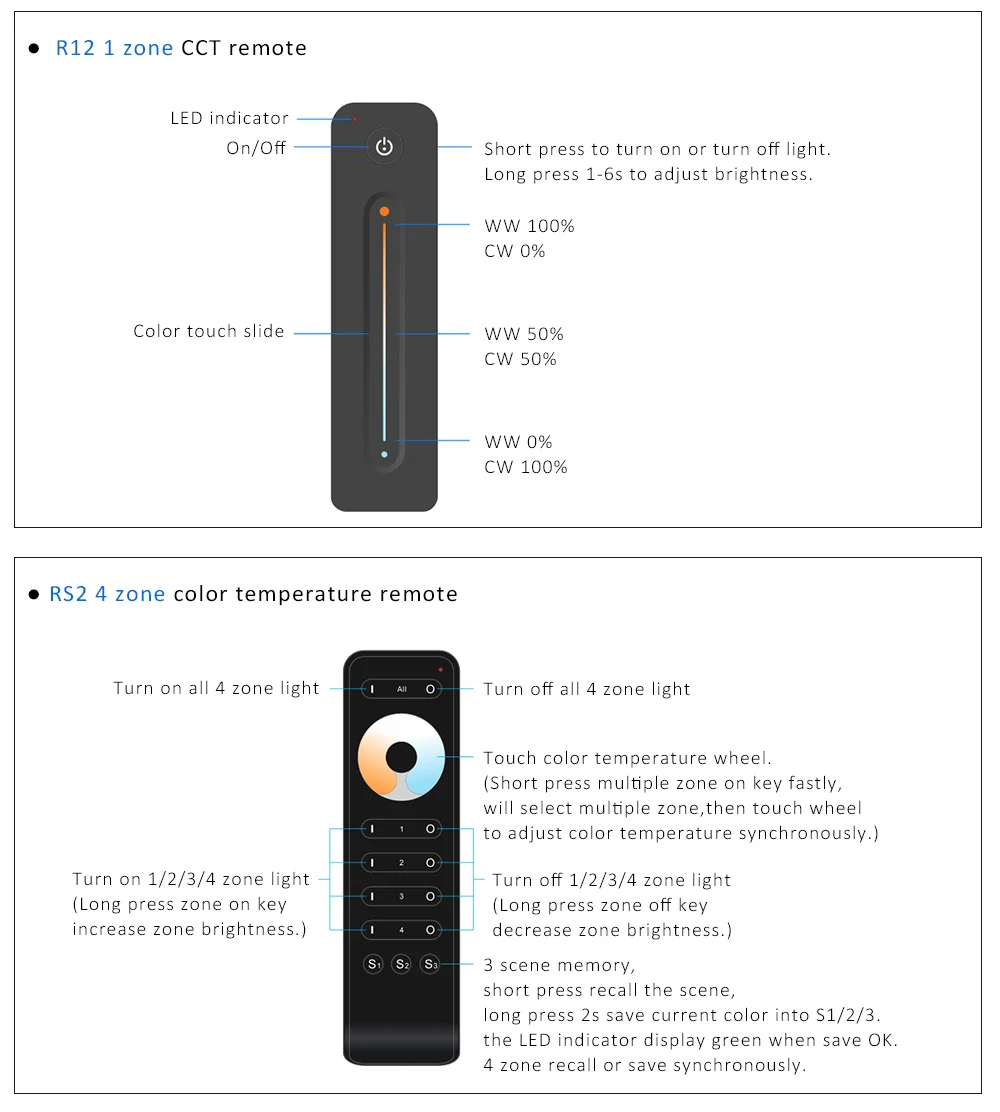

Remote Control Optional:

Max control 1-16 zone through Wifi Dimmers,realize to control by mobile
