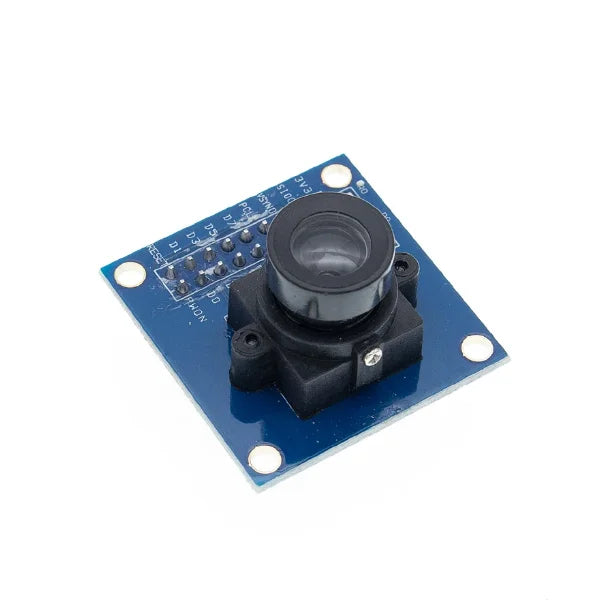

With FIFO ov7670 camera module module stm32 driver microcontroller development board
: In stock
:
Link: https://pan.baidu.com/s/1JNWMGAn1yuP3-micKahzqQ?pwd=cj6c Extract Code: cj6c After copying this content to open the Baidu.com disk mobile app, the operation is more convenient Oh!
The OV7670 image sensor, with its small size and low operating voltage, provides all the functions of a single-chip VGA camera and image processor. Controlled by the SCCB bus, it can output 8-bit impact data of various resolutions in whole frame, sub-sampling, and window taking. The product's VGA image is up to 30 frames per second. The user has full control over the image quality, data format and transmission method. All image processing function processes including gamma curve, white balance, saturation, chroma, etc. can be programmed through the SCCB interface.The OmmiVision image sensor applies unique sensor technology to improve image quality by reducing or eliminating optical or electronic defects such as fixed-pattern noise, bracketing, and fluttering scattering, to obtain clear and stable color images.
● High sensitivity for low-light applications
Low voltage for embedded applications
Standard SCCB interface, compatible with I2C interface.
● RawRGB, RGB (GRB4:2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) output formats.
Supports VGA, CIF, and various sizes from CIF to 40x30.
● VarioPixel sub-sampling method
● Auto Impact Control functions include: Auto Exposure Control, Auto Gain Control, Auto White Balance, Auto Light Streak Removal, and Auto Black Level Calibration. Image quality control including color saturation, hue, gamma, sharpness ANTI_BLOOM
● ISP with noise elimination and bad dot compensation function
● Support for image scaling
● Lens Loss Compensation
● 50/60Hz auto-detection
● Saturation auto adjustment (UV adjustment)
● Edge enhancement auto adjustment
● Noise reduction auto adjustment
Key parameters
Sensor array 640X480
IO voltage 2.5V to 3.0V (internal LDO supplies 1.8V to the core)
Power consumption operation 60mW/15fpsVGAYUV
Sleep <20μA
Temperature operation -30°C to 70°C
Stable operation 0°C to 50°C
Output Format (8-bit)? YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data
Optical size 1/6"
Field of view 25°
Maximum rate 30fps VGA
Sensitivity 1.3V/(Lux-sec)
Signal-to-noise ratio 46 dB
Dynamic Range 52 dB
Viewing Mode Line-by-Line
Electronic exposure 1 line to 510 lines
Pixel area 3.6μm x 3.6μm
Dark current 12 mV/s at 60°C
