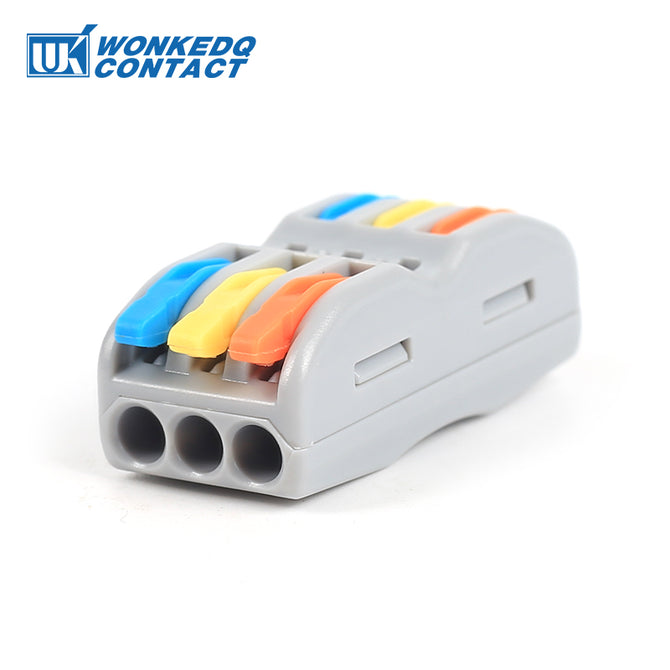

Wire Cable Connector Terminal Blocks 222 6pole colorful Quick Push In Spring Plastic Material PA66 Mini Fast Connectors 10PCS
US$ 7.02
US$ 8.64
: In stock
: 60394
Wire Connector Terminals 222 Replace 6Pole colorful Quick Push In Plastic Material PA66 Fast Connectors 10PCS 1. DESCRIPTION Built-in test point. Quick and easy installation Protection against electrical shock,...
Share:
Wire Connector Terminals 222 Replace 6Pole colorful Quick Push In Plastic Material PA66 Fast Connectors 10PCS
1. DESCRIPTION
- Built-in test point.
- Quick and easy installation
- Protection against electrical shock, touch safe.
- Low installed cost and safe operation.
2.TECHNICAL PARAMETERS
|
Model No. |
VSE-423-A (222-423) |
|
Color |
Grey/Orange, other color can be customized |
|

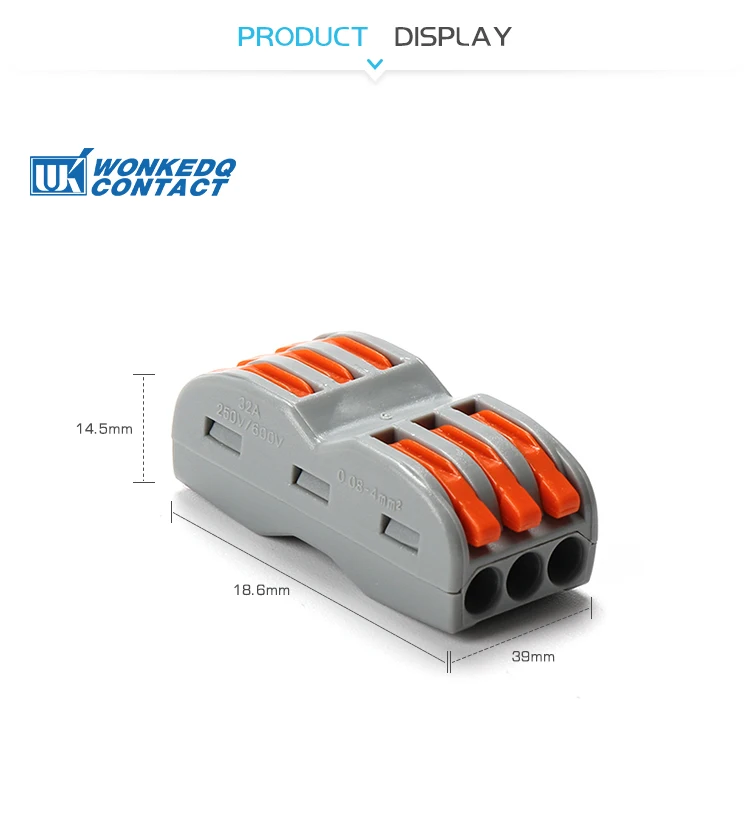

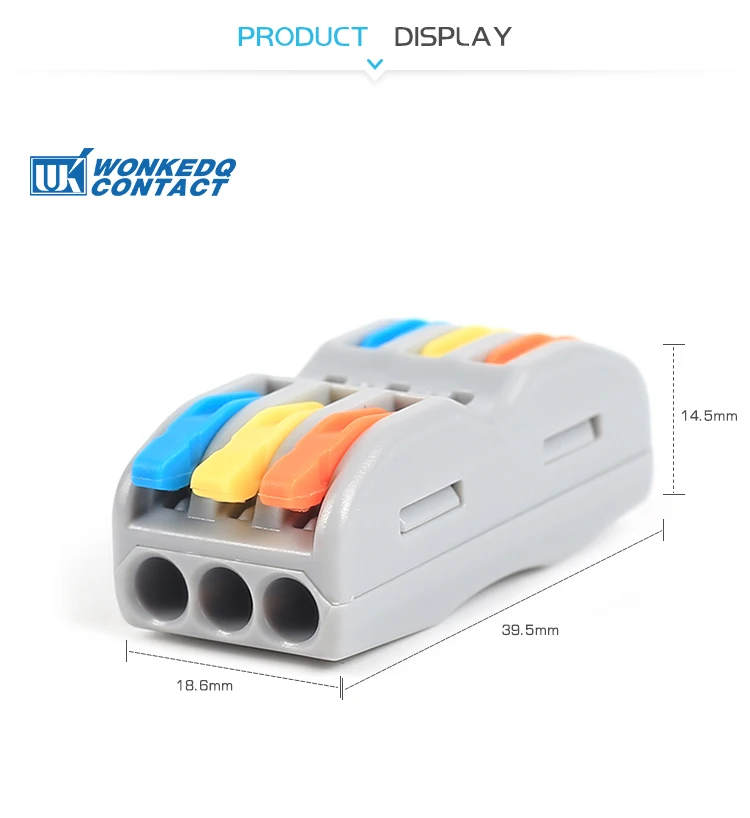

Length/Height/Wide (mm) |
39/18.6/14.5 |
|
Connection method |
Cage Clamp |
|
Material |
Flame resistant Nylon PA66, also available in PC material |
|
Rated Voltage/Current |
400V/32A |
|
Cross section, solid Cable/Conductor Size |
0.08-2.5 mm² /28-12 AWG |
|
Cross section, soft Cable/Conductor Size |
0.08-4 mm² /28-12 AWG |
|
Strip length |
9 -10 mm / 0.35 -0.39 in |
|
Mounting Carrier |
222-500, 222-505 |
|
Standard |
IEC 60947-7-1 |
|
Packing Detail |
6.32g/pc, 150PCS/BOX,4800PCS/CTN |
|
Certification |
CE/RoHS/CQC/ISO 9001 |
