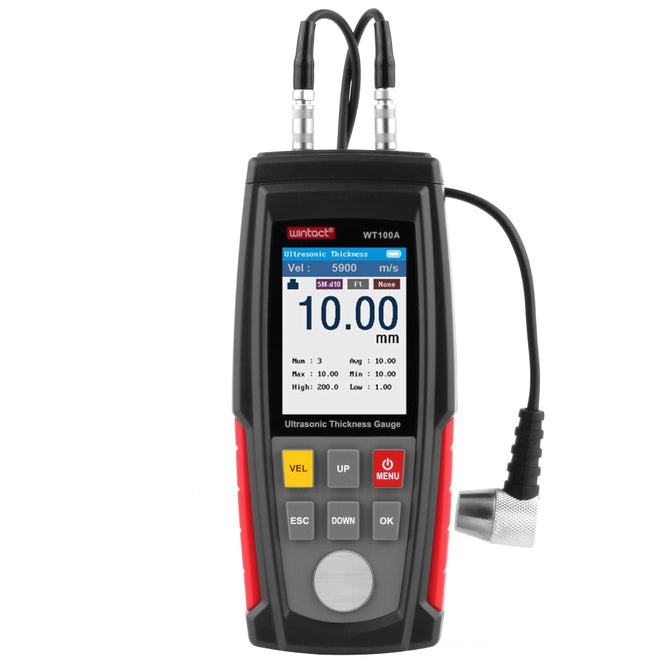

WINTACT Ultrasonic Thickness Gauge Meter Tester Battery Digital Width Measuing instruments Ultrasonic Thickness Gauge

WINTACT Ultrasonic Thickness Gauge Meter Tester Battery Digital Width Measuing instruments Ultrasonic Thickness Gauge

US$ 67.86 US$ 86.74

Availability: In stock

SKU: ai204911rs

10807099789657367 WINTACT Ultrasonic Thickness Gauge Meter Tester Recharageble battery Digital Width Measuing instruments Ultrasonic Thickness Gauge WT100A: 1.2~225.0mm (steel); WT130A: 1.0~300.0mm (steel) It is transmitted at a constant speed...

Quantity

Add to wishlist

10807099789657367

WINTACT Ultrasonic Thickness Gauge Meter Tester Recharageble battery Digital Width Measuing instruments Ultrasonic Thickness Gauge
WT100A: 1.2~225.0mm (steel); WT130A: 1.0~300.0mm (steel)

It is transmitted at a constant speed and can distinguish waves reflected from the back side for this instrument.

It can also be widely used in manufacturing, metal processing, commodity inspection and other materials that allow ultrasonic waves.

Wide application: The ultrasonic thickness gauge is suitable for the material that conduct and reflect constant sonic , such as metal, plastic, ceramic, glass, etc.

The Intelligent Handheld Ultrasonic Thickness Gauge is microprocessor controlled and can measure thickness quickly and accurately and with sound of various materials without ultrasonic measurement damage.

This tool is capable of accurately measuring parts in different materials or industrial production, as well as monitoring pressure vessels for pipes and production equipment, as well as the extent to which various parts are corroded

Model	WT100A	WT130A
Measuring range	1.00 -225.0mm	1.00 -300.0mm
Data storage	500	1500
Probe selection	X	V
Operation	5MHz	5MHz/2.5MHz
frequency	5MHz	5MHz/2.5MHz
Measurement error	±(0.5%H+0.05)mm
Lower limit of pipe measurement	20x3mm (steel)
Adjustment range of sound speed	1000-9999m/s
Temperature range of operation	0 -40C
Battery	3 Ni-MH rechargeable batteries of 1.2V
USB charging	5V 1A
Dimensions	6514630mm/2.65.71.2in
Weight	130g/4.6oz
Probe	Measurement parameters	Measurement parameters
5Md10	1.0-225.0mm	1.0-300.0mm
5Md6	X	1.0-50.0mm
2. 5M	X	1.2-300.0mm
High temperature	X	1.2-300.0mm

1x Digital Ultrasonic Thickness Gauge

2x Probe (WT100A: 1 probe)

1x Retail Case

1x Charger

1x Use's Manual
