Waveshare Universal e-Paper Raw Panel Driver Shield for Arduino/NUCLEO
US$ 11.03
US$ 12.08
: In stock
: 570174
OverviewThis is a universal driver board for connecting Arduino/NUCLEO and e-Paper raw panels, can be used to drive various SPI interface e-Paper from Waveshare.FeaturesStandard Arduino connectivity, compatible with host boards...
Share:
Overview

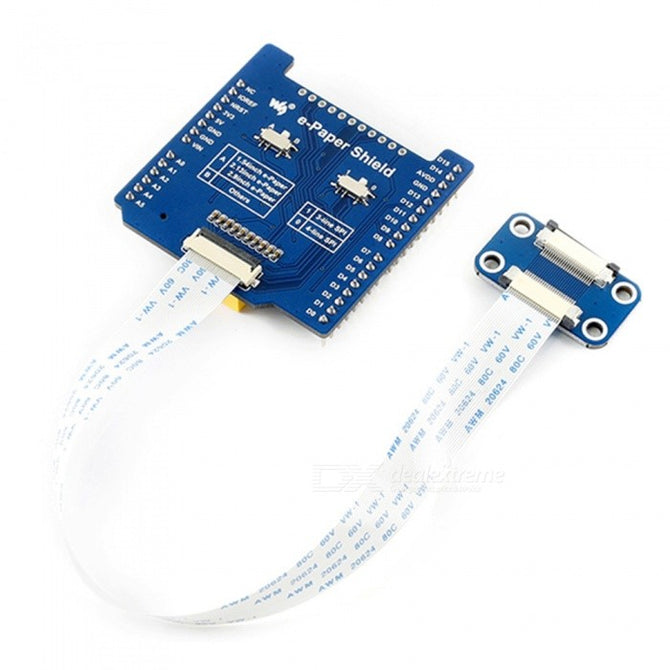

This is a universal driver board for connecting Arduino/NUCLEO and e-Paper raw panels, can be used to drive various SPI interface e-Paper from Waveshare.
Features
Standard Arduino connectivity, compatible with host boards like UNO, Leonardo, NUCLEO, XNUCLEO
Onboard voltage translator, compatible with 3.3V/5V MCUs
Onboard external RAM, more available spaceMicro SD slot, images can be stored on TF card for displayingReserved control interface, for connecting with other control boards/li>
Comes with development resources and manual (examples for Arduino/STM32)
Specifications
Operating voltage: 3.3V/5V
Interface: 3-wire SPI, 4-wire SPI (default)
Outline dimension: 53.34mm ¡Á 53.34mm
This is a universal driver board for connecting Arduino/NUCLEO and e-Paper raw panels, can be used to drive various SPI interface e-Paper from Waveshare.
Features
Standard Arduino connectivity, compatible with host boards like UNO, Leonardo, NUCLEO, XNUCLEO
Onboard voltage translator, compatible with 3.3V/5V MCUs
Onboard external RAM, more available spaceMicro SD slot, images can be stored on TF card for displayingReserved control interface, for connecting with other control boards/li>
Comes with development resources and manual (examples for Arduino/STM32)
Specifications
Operating voltage: 3.3V/5V
Interface: 3-wire SPI, 4-wire SPI (default)
Outline dimension: 53.34mm ¡Á 53.34mm
General | |
---|---|
Brand | Waveshare |
Model | e-Paper Shield |
Quantity | 1 set |
Material | RF4 |
Specification | |
English Manual / Spec | No |
Download Link | www.waveshare.com/wiki/e-Paper_Shield |
Dimensions & Weight | |
---|---|
Dimensions | 2.09 in x 2.09 in x 0.12 in (5.3 cm x 5.3 cm x 0.3 cm) |
Weight | 0.6 oz (17 g) |
Packing List |
---|
1 x e-Paper Shield 1 x e-Paper Adapter 1 x 24PIN FFC |
