Waveshare Raspberry Pi 8-ch Relay Expansion Board, Supports Raspberry Pi A+/B+/2B/3B/3B+

US$ 29.88 US$ 30.18

Availability: In stock

SKU: 622280

OverviewThe RPi Relay Board (B) is an expansion board with 8-ch relays for Raspberry Pi. It gives your Pi the ability to control high voltage products such as home appliances.FeaturesSupports...

Add to wishlist

Overview

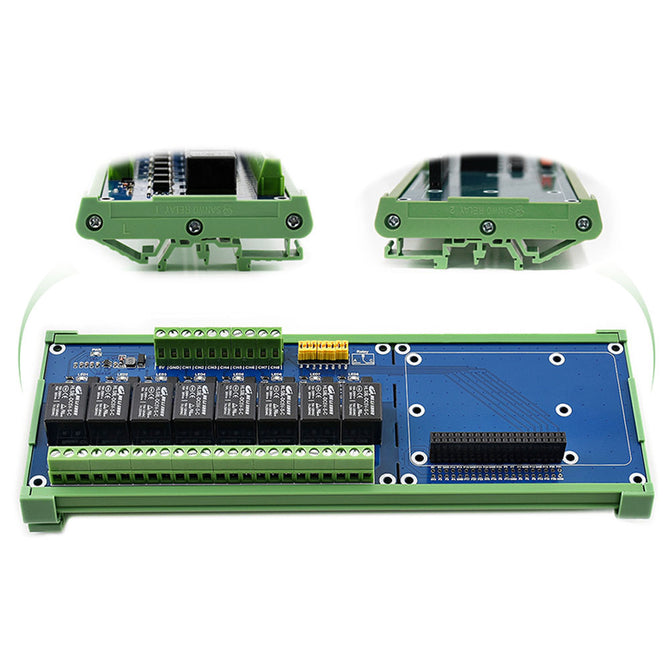

The RPi Relay Board (B) is an expansion board with 8-ch relays for Raspberry Pi. It gives your Pi the ability to control high voltage products such as home appliances.

Features
Supports Raspberry Pi A+/B+/2B/3B/3B+High quality relays, loads up to 5A 250V AC or 5A 30V DC
Photo coupling isolation, prevent interference from high voltage circuitStandard rail mount bottom case
Onboard LEDs for indicating relays status
Relay control pin selection jumper, allows to control the relays by custom pins other than the default pins
Reserved control Interface, allows to work with controllers like PLC
Comes with development resources, including examples in wiring
Pi, bcm2835, python, python-bottle (webpage control), and crontab (cron job)

Specifications
Power supply voltage: 5V
Trigger signal: 3.3V/5V
Relay channels: 8-ch
Contact form: SPDT-NO,NC
Closed current: 6mA (per channel)
Connector: screw terminal block

Form Color	RPi Relay Board (B)
Model	RPi Relay Board (B)
Quantity	1 set
Material	FR4, PCB
English Manual / Spec	No
Download Link	www.waveshare.com/wiki/RPi_Relay_Board_(B)
Packing List	1 x RPi Relay Board (B) 1 x Rail mount bottom case 1 x Screws pack
