Waveshare 212x104 2.13 Inches Flexible E-Ink Raw Display Panel

Waveshare 212x104 2.13 Inches Flexible E-Ink Raw Display Panel

US$ 11.38 US$ 12.47

: In stock

: 570169

OverviewThis is a flexible E-Ink raw display, 2.13inch, 212x104 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.Compared with normal e-Paper panels, this flexible panel allows bending without...
Overview
This is a flexible E-Ink raw display, 2.13inch, 212x104 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.

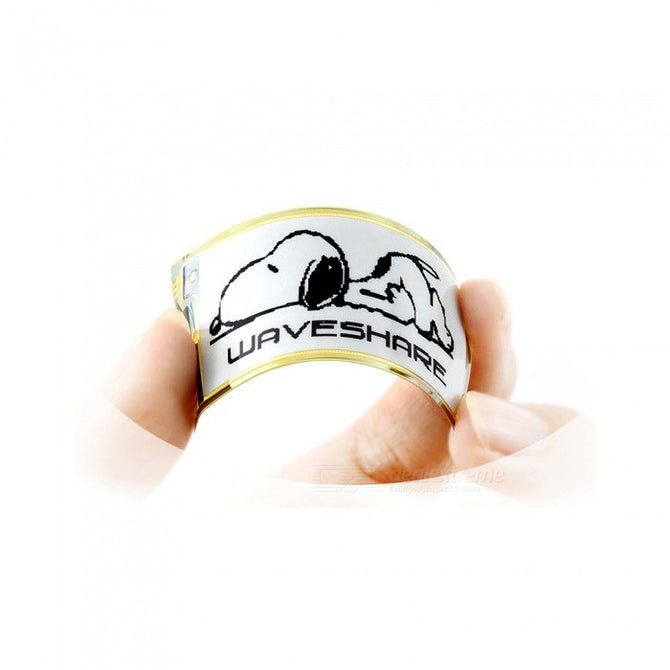

Compared with normal e-Paper panels, this flexible panel allows bending without being damaged, and it's thinner and lighter.
Combined with the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications where curved surface display is required, such as industrial instruments, smart wearable-devices, and so on.

Features
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Arduino/STM32)

Specifications
Operating voltage: 3.3V
Interface: 3-wire SPI, 4-wire SPI
Outline dimension: 59.2mm ¡Á 29.2mm ¡Á 0.3mm
Display size: 23.71mm ¡Á 48.55mm
Dot pitch: 0.229 ¡Á 0.228
Resolution: 212 ¡Á 104
Display color: black, white
Grey level: 2
Full refresh time: 2s
Refresh power: 26.4mW(typ.)
Standby power: <0.017m
WViewing angle: >170¡ã
General
Brand Waveshare
Model 2.13inch e-Paper (D)
Quantity 1 set
Material LCD,RF4
Specification
English Manual / Spec No
Download Link www.waveshare.com/wiki/2.13inch_e-Paper_HAT_(D)
Dimensions & Weight
Dimensions 2.32 in x 1.14 in x 0.12 in (5.9 cm x 2.9 cm x 0.3 cm)
Weight 0.04 oz (1 g)
Packing List
1 x 2.13inch e-Paper (D)
