Waveshare 212x104 2.13" Flexible E-Paper Display HAT for Raspberry Pi
US$ 22.73
US$ 24.90
: In stock
: 570170
OverviewThis is a flexible E-Ink raw display, 2.13inch, 212x104 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.Compared with normal e-Paper panels, this flexible panel allows bending without...
Share:
Overview
This is a flexible E-Ink raw display, 2.13inch, 212x104 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.

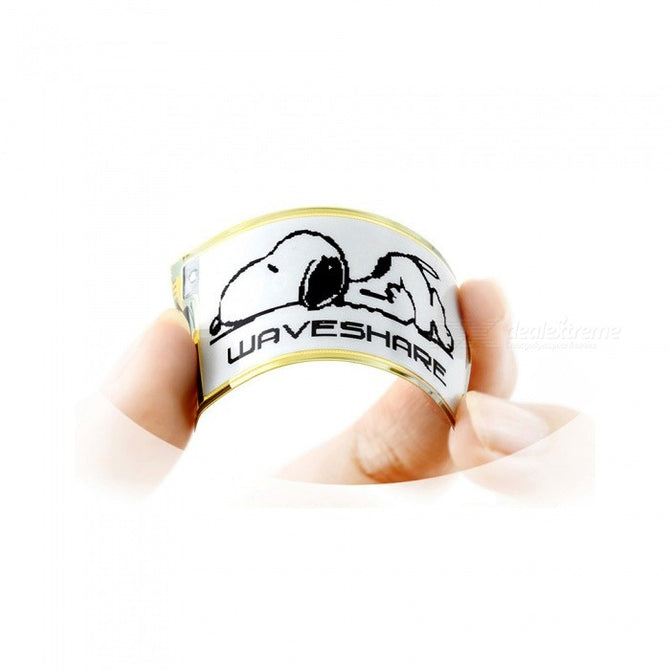

Compared with normal e-Paper panels, this flexible panel allows bending without being damaged, and it's thinner and lighter.
Combined with the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications where curved surface display is required, such as industrial instruments, smart wearable-devices, and so on.
Features
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Arduino/STM32)
Specifications
Operating voltage: 3.3V
Interface: 3-wire SPI, 4-wire SPI
Outline dimension: 59.2mm ¡Á 29.2mm ¡Á 0.3mm
Display size: 23.71mm ¡Á 48.55mm
Dot pitch: 0.229 ¡Á 0.228
Resolution: 212 ¡Á 104
Display color: black, white
Grey level: 2
Full refresh time: 2s
Refresh power: 26.4mW(typ.)
Standby power: <0.017mW
Viewing angle: >170¡ã
This is a flexible E-Ink raw display, 2.13inch, 212x104 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.
Compared with normal e-Paper panels, this flexible panel allows bending without being damaged, and it's thinner and lighter.
Combined with the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications where curved surface display is required, such as industrial instruments, smart wearable-devices, and so on.
Features
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Arduino/STM32)
Specifications
Operating voltage: 3.3V
Interface: 3-wire SPI, 4-wire SPI
Outline dimension: 59.2mm ¡Á 29.2mm ¡Á 0.3mm
Display size: 23.71mm ¡Á 48.55mm
Dot pitch: 0.229 ¡Á 0.228
Resolution: 212 ¡Á 104
Display color: black, white
Grey level: 2
Full refresh time: 2s
Refresh power: 26.4mW(typ.)
Standby power: <0.017mW
Viewing angle: >170¡ã
General | |
---|---|
Brand | Waveshare |
Model | 2.13inch e-Paper HAT (D) |
Quantity | 1 set |
Material | LCD,RF4 |
Specification | |
English Manual / Spec | No |
Download Link | www.waveshare.com/wiki/2.13inch_e-Paper_HAT_(D) |
Dimensions & Weight | |
---|---|
Dimensions | 1.89 in x 0.91 in x 0.08 in (4.8 cm x 2.3 cm x 0.2 cm) |
Weight | 0.78 oz (22 g) |
Packing List |
---|
1 x 2.13inch e-Paper (D) 1 x e-Paper Driver HAT 1 x RPi screws pack (2pcs) 1 x PH2.0 20cm 8Pin |
