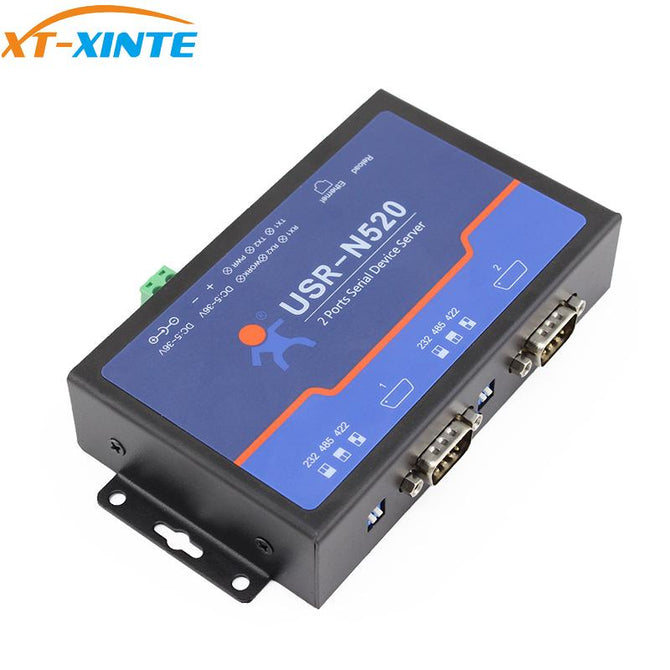

USRIOT USR-N520 Serial to Ethernet Server TCP IP Converter Double Serial Device RS232 RS485 RS422 DHCP/Modbus Multi-host Polling

USR-N520 is a double serial device server,which can realize transparent transmission between TCP/UDP data package and RS232/RS485/RS422 interface.

package include ：1pc  USR-N520

Introduction of Serial Device Server

USR-N520 is a double serial device server,which can realize transparent transmission between TCP/UDP data package and RS232/RS485/RS422 interface.The device has unique functions such as network printing,Modbus multi-host polling and watchdog mechanism. USR-N520 is based on ARM processor and it is internally integrated with TCP/IP protocol.User can easily realize embedded device networking.

Features of Serial Device Server

• Cortex-M4 kernel,industrial working temperature range and TCPIP protocol stack.
• Auto-MDI/MDIX,RJ45 port with 10/100Mbps
• TCP Server,TCP Client,UDP Client,UDP Server and HTTPD Client work mode
• Support network printing
• Support Modbus multi-host polling
• Two ports can work independently at the same time
• Support Modbus RTU to Modbus TCP
• Can distinguish which serial port connects to the device via port number
• Support virtual serial port and provide corresponding software USR-VCOM
• Serial baud rate from 600bps to 230.4K bps;Check bit of None,Odd,Even,Mark and Space
• DNS and DHCP supported
• Provide PC TCP/IP socket programming example such as VB,C++,Delphi,Android and IOS
• Built-in webpage;also can customize webpage for users
• Reload button,one key to restore default settings
• RJ45 with Link/Data indicator light,built-in isolation transformer and 2 KV electromagnetic isolation
• The global unique MAC address bought from IEEE (begin with D8-B0-4C);user can define MAC address
• Support upgrade firmware via network
• Support keepalive,rapidly detect dead links
• Support account and password,can be used to page login and network settings
• Support one channel Websocket,realize bidirectional transparent transmission between webpage and serial 0
• Two serial ports;each serial can work as rs232,rs485 or rs422;DB9 female;provide rs485/rs422 converter
• Two channel serial communication indicator: TX/RX
• Support DC adapter and 5.08-2 terminal power supply
• Support UDP broadcast function

Application Field of Serial Device Server

• Industrial data transmission, industrial automation
• security and protection monitoring, public security
• Smart home, power control, environmental monitoring, intelligent agriculture
• Door check on work attendance system, POS system, rice selling system
• Building automation system, power monitoring, self-service banking system, telecom machine room monitoring

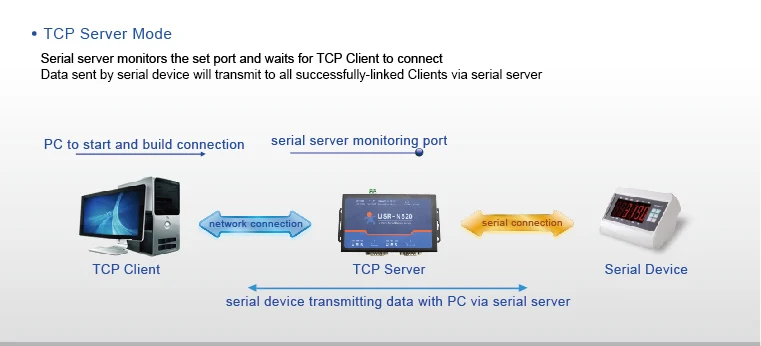

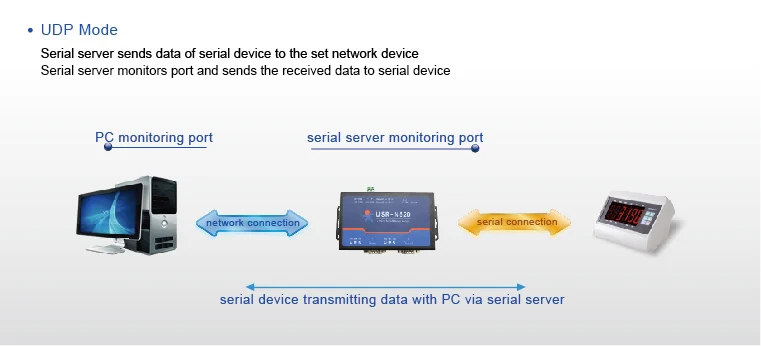

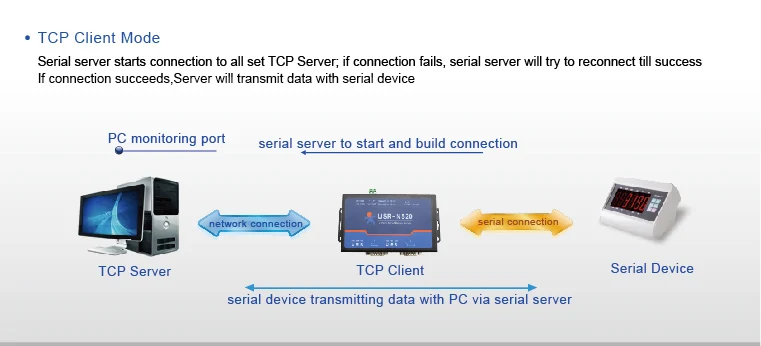

Work Mode of Serial Device Server

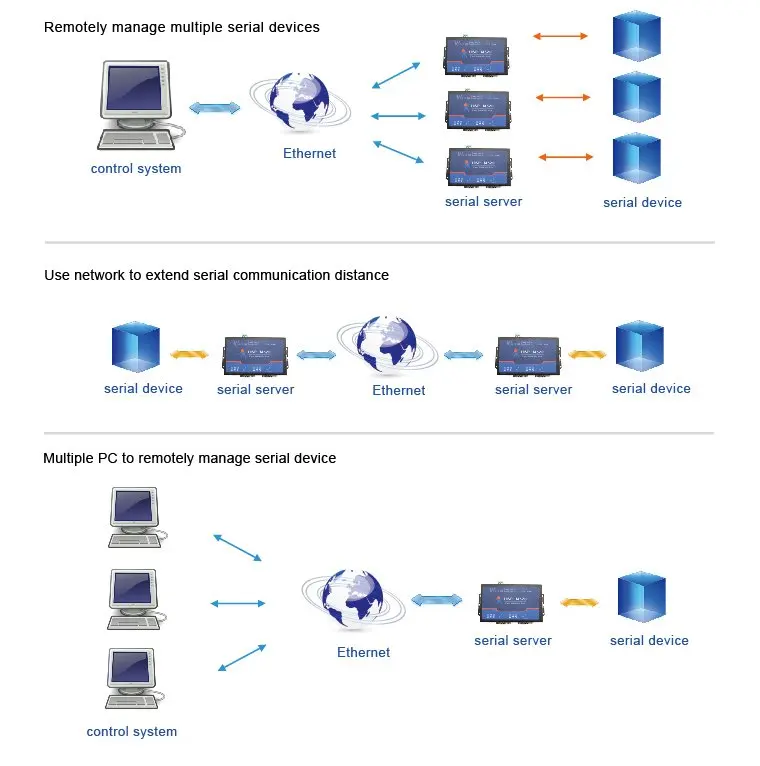

Application of Serial Device Server

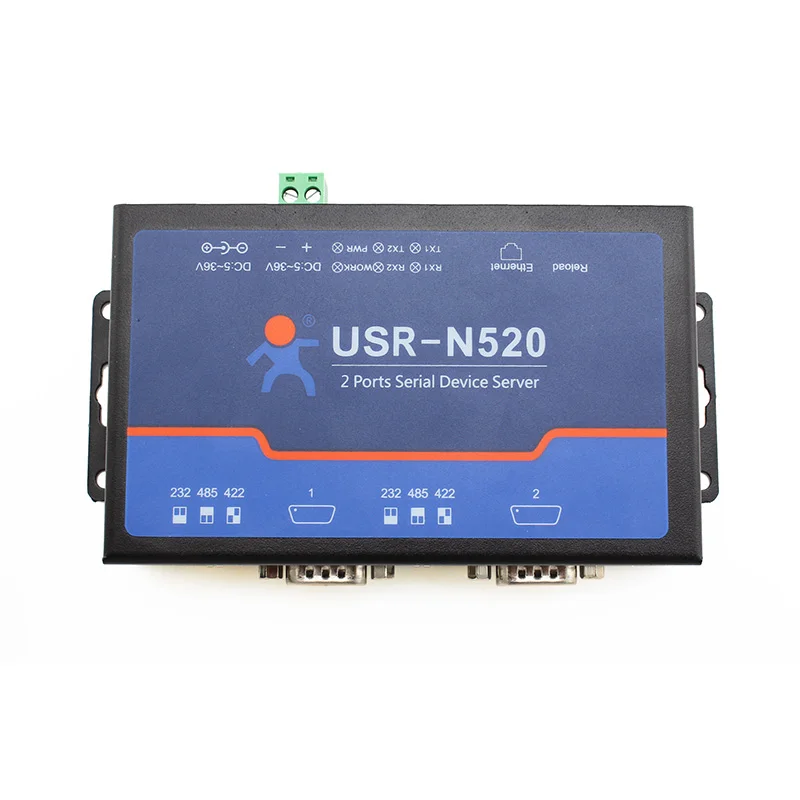

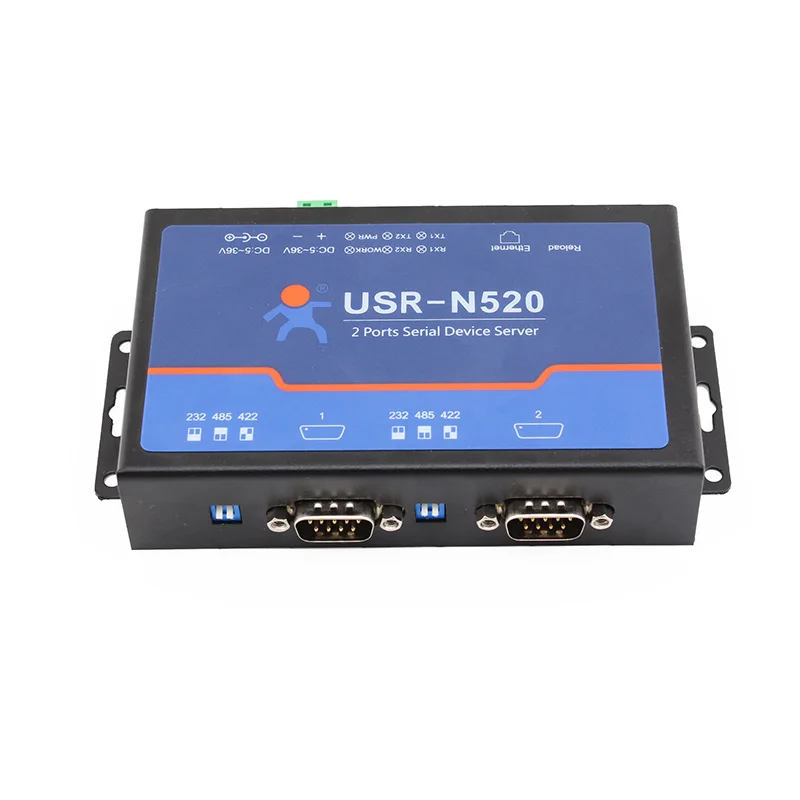

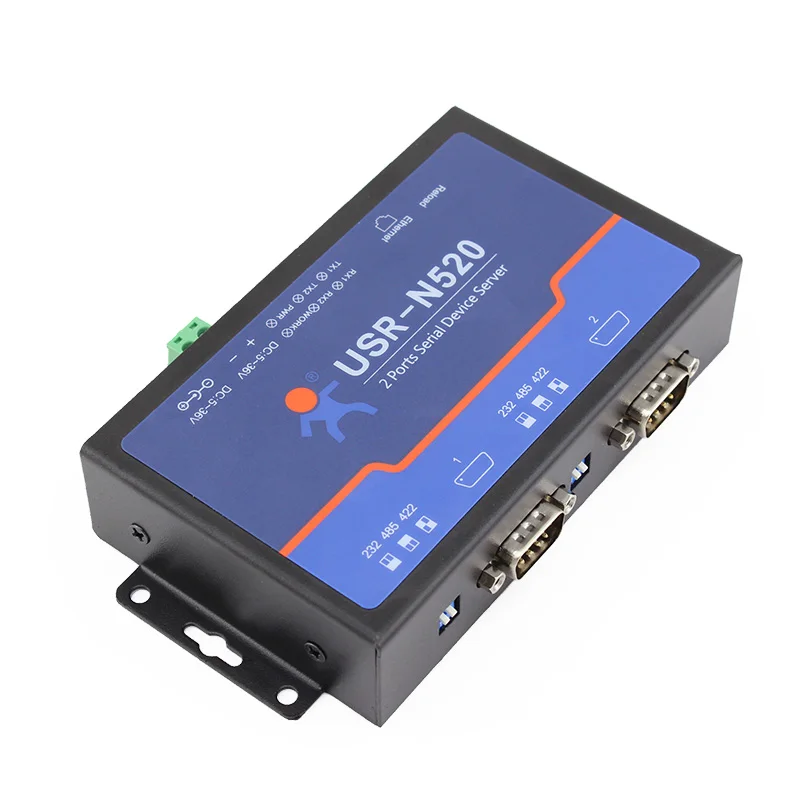

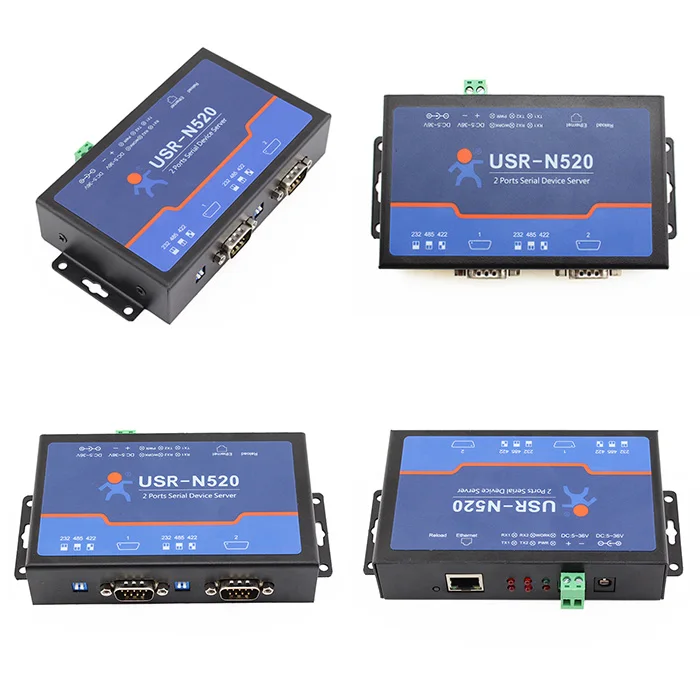

Images of Serial Device Server
