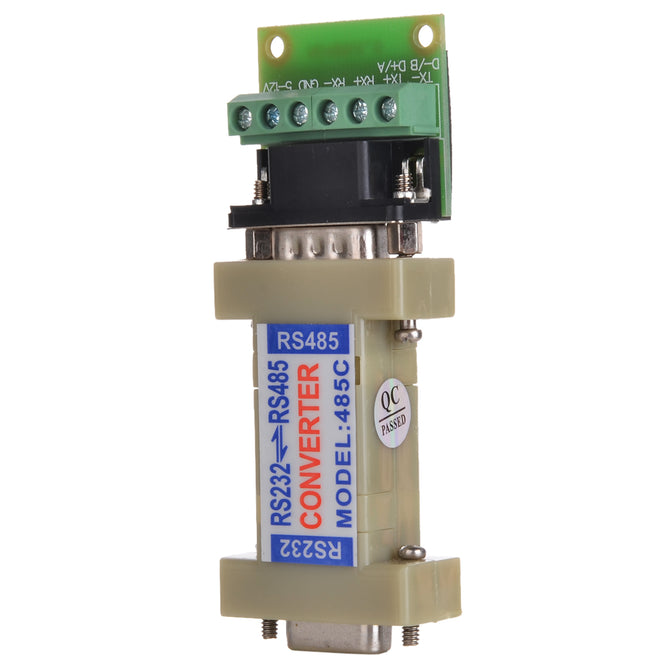

Universal RS232 to RS485 Passive Converter w/ Adapter for CCTV
US$ 4.99
US$ 6.99
: In stock
: 2000351
- Interface: RS-232 and RS-485 standards that compatible with EIA/TIA- Electrical Interface: At the side of RS-232 is DB9 pin female connector; the other side of RS-485 is with DB9...
Share:
- Interface: RS-232 and RS-485 standards that compatible with EIA/TIA
- Electrical Interface: At the side of RS-232 is DB9 pin female connector; the other side of RS-485 is with DB9 pin male connector, with connection board.
- Work mode: Asynchronous, half-duplex, different transmission.
- Transmission media: Twisted pair or shielded twisted cable
- Communication rate: 300BPS¡«115.2KBPS
- Communication distance: 5m (RS-232 port),0~1200m(RS485 port)
- Working circumstance:-20¡«85 degree, relative humidity: 5%¡«95%
Application: industrial automatically control system, traffic control automatic system, CCTV, surveillance security system, parking system, employee management system, access control system
- Electrical Interface: At the side of RS-232 is DB9 pin female connector; the other side of RS-485 is with DB9 pin male connector, with connection board.
- Work mode: Asynchronous, half-duplex, different transmission.
- Transmission media: Twisted pair or shielded twisted cable
- Communication rate: 300BPS¡«115.2KBPS
- Communication distance: 5m (RS-232 port),0~1200m(RS485 port)
- Working circumstance:-20¡«85 degree, relative humidity: 5%¡«95%
Application: industrial automatically control system, traffic control automatic system, CCTV, surveillance security system, parking system, employee management system, access control system
| General | |
|---|---|
| Model | 485C |
| Quantity | 1 set |
| Form Color | Army Green + Fluorescent Green |
| Material | Plastic |
| Specification | |
| Interface | RS-232 |
| Transmission Rate | 300~115200bps |
| Dimensions & Weight | |
|---|---|
| Dimensions | 3.66 in x 1.3 in x 0.71 in (9.3 cm x 3.3 cm x 1.8 cm) |
| Weight | 1.27 oz (36 g) |
| Packing List |
|---|
|
1 * Converter w/ cable board 1 * English user manual |
