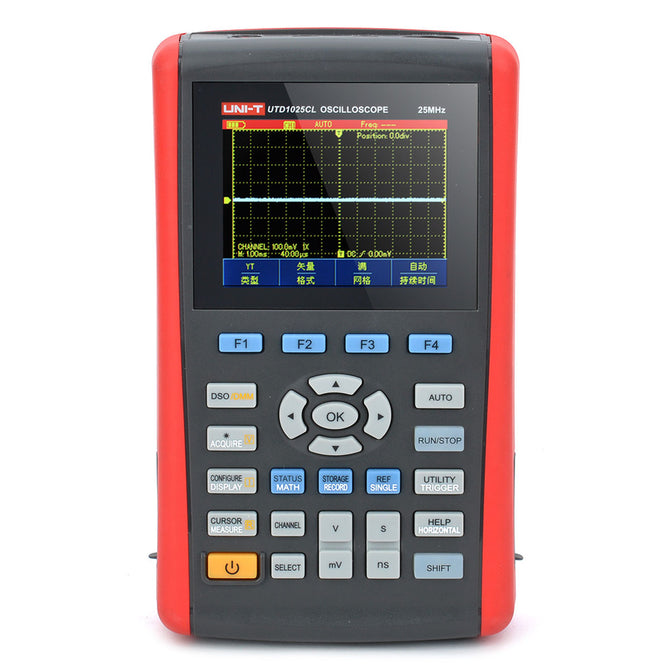

UNI-T UTD1025CL 3.5" LCD Handheld Digital Oscilloscope

US$ 227.55 US$ 309.66

Availability: In stock

SKU: 2000231

- Model: UNI-T UTD1025CL- Color: Red + Grey - 3.5" 64K color TFT LCD- Channel number: 1 - Bandwidth: 25MHz- Rise Time: 14ns - Sample Rate: 200MS/s - Vertical Sensitivity:...

Add to wishlist

- Model: UNI-T UTD1025CL- Color: Red + Grey
- 3.5" 64K color TFT LCD- Channel number: 1
- Bandwidth: 25MHz- Rise Time: 14ns
- Sample Rate: 200MS/s
- Vertical Sensitivity: 5mV/div-20V/div
- Memory Depth: 12kpts
- Scanning Speed: 10ns/div-50s/div
- Trigger Type: Edge,Pulse,Video,Alternate
- Storage: Bitmap,Waveform,Set
- Interface: Mini USB

- Multimeter:
- DC Voltage: 400mV/4V/40V/400V ¡À(1%+5)
- AC Voltage: 400mV/4V/40V/400V ¡À(1.2%+5)
- DC Current: 400uA/4000uA ¡À(1.2%+5), 40mA/4000mA ¡À(1%+5), 10A ¡À(1.5%+5)
- AC Current: 400uA/4000uA ¡À(2%+5), 40mA/4000mA ¡À(1.5%+5), 10A ¡À(5%+5)
- Resistance: 400 ohm/4K ohm/40K ohm/400K ohm/4M ohm ¡À(1.2%+5), 40.00M ohm ¡À(1.5%+5)
- Capacitance: 51.2nF/512nF/5.12uF/51.2uF/100uF ¡À(3%+5)
- Built-in rechargeable 7.4V 3600mAh lithium battery
- Working time: not less than 8 hours

- Accessories:
- 1 x 100~240V 50/60HZ 1.5A power adapter (325cm cable)
- 2 x Test Leads (111cm)
- 2 x Sensors (1:1 / 10:1)- 1 x 10A splitter
- 1 x Carrying pouch
- 1 x USB connecting cable (150cm)
- 1 x Software CD- 1 x English Manual
