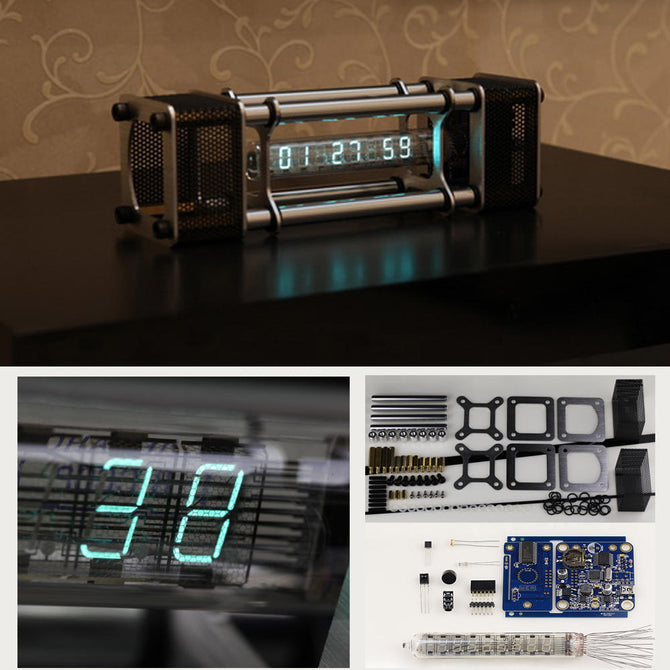

Unassembled IV-18 Fluorescent Tube Clock Kit DIY 6 Digital Display Energy Pillar With Remote Control wholesale bulk price
US$ 155.99
: In stock
:
Compatibility To confirm that this part fits your vehicle, please enter your vehicle's details below. Year: Select Make: Select Model: Select Submodel: Select Trim: Select Engine: Select Clear All This...
Share:
Compatibility
To confirm that this part fits your vehicle, please enter your vehicle's details below.- Year:
Select
- Make:
Select
- Model:
Select
- Submodel:
Select
- Trim:
Select
- Engine:
Select
- Clear All
This part is compatible with 0 vehicle(s).
Show all compatible vehicles
This part is compatible with
1 vehicle(s) matching
This part is not compatible with
Recent searches
- Year
- Make
- Model
- Submodel
- Trim
- Engine
User manual: http://img.banggood.com/file/products/20180621033457IV-18-VFD-tube-Clock-Manual-EN-v1.2.0.pdf
Assembly Instruction: http://www.nixieclock.org/?p=449
BOM list: http://img.banggood.com/file/products/20180621211231IV-18-VFD-tube-Clock-kit-BOM-EN-v1.2.0.pdf
Feature:
Input voltage: DC 5V
Operating current: 220mA maximum
Fluorescent tube model: IV-18 (ИB-18 1984-1992 manufactured by the former Soviet Union)
Dimensions: 200mm x 52mm x 64mm (L x W x H) fluorescent tube length 115mm diameter 18mm
Working temp: 0°C - 60°C
Net Weight: 350g
Shell material: Aluminum alloy
Functional features:
1. Eight digits in IV-18 (ИВ-18) VFD tube display. (~1980-1992 made in USSR).
2. Display hour, minute and second (12 or 24 hour format optional).
3. Display year, month and day and Chinese lunar date (YY-MM-DD or MM-DD-YY.DD-MM-YY.YY-DD-MM format optional).
4. Leading zero ON/OFF function.
5. GPS real-time adjustment. Automatically adjusts date and time; GPS status display (package does not includes GPS).
6. GMT time zone functions, the clock will calculate the local time based on satellite.
7. Temperature display (°C or °F) (with optional temperature sensor).
8. Two alarm clock (set ON/OFF independent alarms).
9. Alternating, date and temperature display. Adjustable display intervals.
10. Timer function. Can be set up to 99 hours, 59 minutes and 59 seconds.
11. Display ON/OFF timer. Easily check time and date after when powered off.
12. 8 manual brightness levels; auto brightness for ambient conditions.
13. Sound ON/OFF button.
14. Display information auto-rotates 180° based on clock orientation.
15. IR remote controller operation. (included)
16. Extremely precise RTC module provides accuracy less than 1 minute/year.
17. Built-in backup lithium battery will maintain clock time more than 3 years.
Package includes:
1 x Set of metal housing accessories (including all metal fittings and screws used in the assembly of the housing)
1 x Set of semi-finished PCB boards (all patch components have been soldered using a mounter)
1 x Set of electronic components (need to own DIY soldering)
1 x IV-18 fluorescent tube
1 x Infrared remote control
1 x MiniUSB cable (1.2M long)
Note: GPS receiver is not included. Instructions please download the electronic version which is at the top
