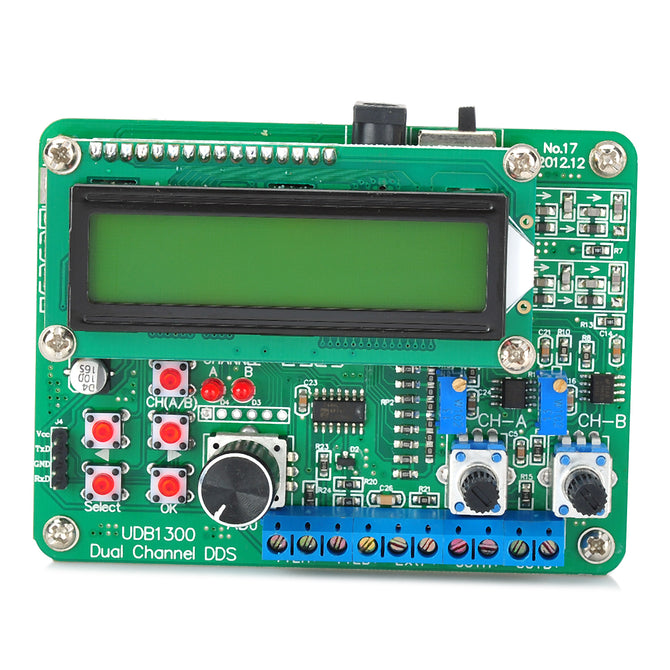

UDB1302S 2.6" LCD 2-Channel DDS Function Signal Generator Source - Green

- Model: UDB1302S
- Quantity: 1
- Color: Green
- Material: CCL (copper-clad plate)
- DB1300 series direct digital synthesis signal generator use DDS technology and FPGA design with the characters of high stability and low distortion etc., A, B two-channel output, two channel TTL output; It is the ideal equipment of electronic engineer, laboratory, production lines, the teaching and scientific research
- A / B output waveform: Sine wave / square wave / triangular wave / sawtooth wave etc.
- A / B: Output amplitude: 10Vpp (no load)
- Output impedance: 50ohm +/- 10%
- Duty ratio range: 0.1%~99.9% (square wave)
- Display: 2.6 LCD1602
- Frequency range: Sine wave: 0.01Hz~2MHz (3MHz / 5MHz / 8MHz); Square wave: 0.01Hz~1MHz (effective range); Triangular wave: 0.01~1MHz (effective range); Sawtooth wave: 0.01Hz~1MHz (effective range)
- Resolution: 0.01Hz
- Frequency Stability: +/- 1 x 10-6
- Frequency accuracy: +/- 5 x 10-6
- Sine wave distortion: <=1% (reference frequency is 1KHz)
- Triangle linearity: >=98% (0.01Hz~100kHz); >=95%, 100KHz~1MHz
- Rise and fall time of square wave: <=30ns
- 2-channel TTL output: TTL electrical level: >=3Vp-p; With load capacity: 20TTL
- A / B 2-channel output signal phase: 0~360 degree adjustable
- A / B 2-channel output signal can follow-up control, computer communication function, onboard output TTL serial port
- Packing List:
- 1 x Signal generator source
- 1 x AC charger
