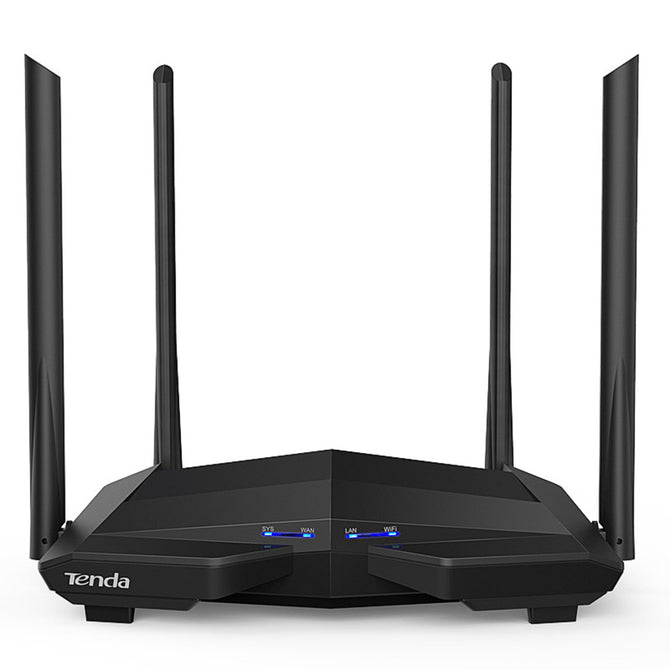

Tenda AC10 1200Mbps Wireless WiFi Router,1GHz CPU,1WAN+3LAN Gigabit Ports, 4*6dbi Wall-mounted Antennas, Smart APP Manage

The AC10 is an 11ac dual-band router designed for homes with 200M and  above. Equipped with Gigabit wired ports, supporting 200M and above  fiber access, two 5G WiFi designs, 867M of WiFi access intelligent terminals,  ensuring full utilization of 200 megabits and above. It adopts 4*6dbi
wall-mounted antennas, combined with Beamforming signal intelligent  tracking technology,wireless coverage of 90 square meters, and can  also access the Internet after wearing two walls. And support dual-band  integration, automatically optimize the good frequency band; support  broadband account automatic migration technology.


Main FeaturesBlack Line

4*6dbi wall-mounted antennas
Coverage of 90 square meters
Specially Designed for 200M+ Optical Fiber Users.
Broadband Account Password Migration Function
?Dual Band rate up to 1167Mbps




Equipped with Gigabit wired port to support 200M  and above fiber access,

two-way 5G WiFi design, 867M of WiFi access intelligent terminal,

ensuring full utilization of 200M and above.


Adopting 4*6dbi through-wall antenna design, combined with Beamforming signal

intelligent tracking technology, according to the user's location, the WiFi signal

is aggregated into a beam direct access to the user's Internet

access device, covering 90 square meters of two walls.


If you forgot broadband account password, AC10 is equipped with the latest account

migration function, just connect the WAN port of the old router to the LAN port of

AC10, and automatically copy  the broadband account password when

power is on, eliminating the trouble of installation settings.


Using high-performance 1GHz CPU and 28nm manufacturing process,

it adapts to full Gigabit routing,  greatly improves network

data processing speed.


Equipped with the latest MU-MIMO technology, the router can simultaneously

transmit data with multiple network devices, shortening the buffer time of

network devices, thereby improving the router's capacity

and terminal access speed.


AC10 supports APP cloud management, which can remotely control the duration of

children's Internet access through mobile phones, and remove

the functions of the Internet.


English Firmware



Product Specification
 Standard&Protocol:
 IEEE802.3, IEEE802.3u
Interface:
 1 Gigabit WAN ports+ 3 Gigabit LAN ports
 Button:
 Reset / WPS button
Power Supply:
 Power Input: 200-240V—50/60Hz
 Power Output: DC 9V 0.85A
  Frequency:
 5GHz: Up to 867Mbps
 2.4GHz: Up to 300Mbps
                             Basic Features:

 Support SSID broadcast and hide
 Support MU-MIMO
 Support Beamforming

  Wireless Security:

  WPA-PSK, WPA2-PSK, WPA/WPA2 Wireless Security: Enable/Disable WPS Fast Encryption  Antenna:  4*6dBi External Dual Band Antennas
                                                    Working mode: Wireless routing model
 AP mode
 Wireless Repeater
 WISP mode
                 Dimension :
 220*141.5*49mm
                              LED :   1*WAN¡¢1*LAN¡¢1*Wi-Fi/WPS¡¢1*SYS  Characteristic function:
 WiFi timing switch
 Intelligent power saving
 Panel light switch
 Tenda App local and remote management

                                              Package Content:
  1* AC10 Wireless Router 1* Power adapter 1* Installation guide
