Ugreen

Navceker HDMI Displayport KVM Switch 8K 60Hz Dual Monitor Display 4X2 4 port USB DP KVM Switch 2K 165Hz 2 Monitors 4 PC Computers Keyboard Mouse Share

Description:

ZY-ASW245,Navceker 8K 60Hz 4x2 HDMI + Displayport USB 3.0 KVM Switch allows you to share one USB keyboard, USB mouse, and One DP monitor & One HDMI monitor to control 4 computers, laptops, game consoles.

It is designed for multitask with four computers at your necessary, increasing productivity in the office or at home ; You can switch between 4 computers using a manual switch located on the top of the KVM unit.

There are 2 models optional, different model has different interface and appearance, please choose suitable model before purchase:

Features:

1080P@240Hz HDMI DP KVM Switch 4 Port Dual Monitor Extended Display, UHD 8K@60Hz RGB 4:4:4, IR control, Button Switching, PC Monitor Keyboard Mouse Switcher for 4 Computers 2 Monitors

• 【USB 3.0 KVM Switch Dual Monitor HDMI + DisplayPort 4 Port 】This dual monitor 4 IN 2 OUT DP HDMI KVM Switch is for you to control them using one set of keyboard, mouse and single or dual monitors to make your work space tidy and efficient, also a premium choice for working from home. Only when your computer supports dual display or multi display, you can use this KVM to achieve 4 PC to share 2 monitors. (Extended or mirrored modes depend on your computer's graphics card).

• 【HDMI DP KVM Switches with 3 USB 3.0 Ports】Dual monitor 8K HDMI Displayport KVM switch with 4 USB 3.0 ports which can recognize keyboard,mouse,printer,scaner and other USB devices. USB 3.0 offers data transfer speeds of up to 5Gbps, while USB 2.0 offers data transfer speeds of only 480Mbps.

• 【HDMI Displayport KVM Switch up to 8K@60HZ】 This DP kvm dual monitor 4 port supporting high resolution max up to 8K@60Hz,4K@144Hz,2K@165Hz and also supports 3D and 1080P@120/240Hz or other lower resolution (Downward Compatible). Complies with the HDMI 2.1& HDCP2.3, DP 1.4 standard. Note: Only when both your computer Graphics card , monitor and HDMI/DP cable support 4K@144Hz then you can get 4K@144Hz effect, so if you want the max resolution you have to check your devices first.

• 【2 Switching Mode & LED Indicator】1. Toggle selection on front panel; 2. IR remote control. Compatible with a variety of computer systems,such as Windows, Linux, Mac, Unix, Ubuntu, Raspberry and most other major OS; also supports HDMI or DP devices without USB signal input like DVR, NVR etc. LED indicate the active computer.

• 【Important】After connecting the computers and the monitors through KVM, you need to set the screen output mode on the computer (press Windows+P) and select the output mode in the pop-up window on the screen. hotkey switching is not supported.

USB3.0 HDMI Displayport KVM Switch 4 ports dual monitor

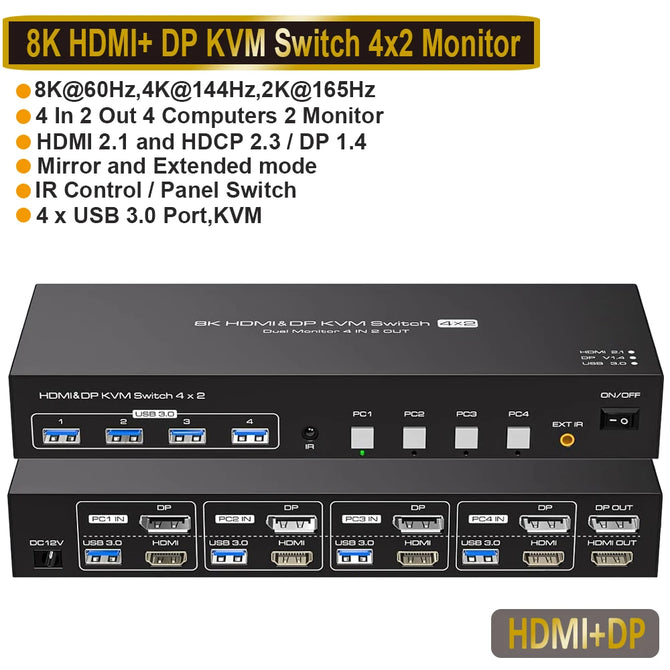

Product Features:

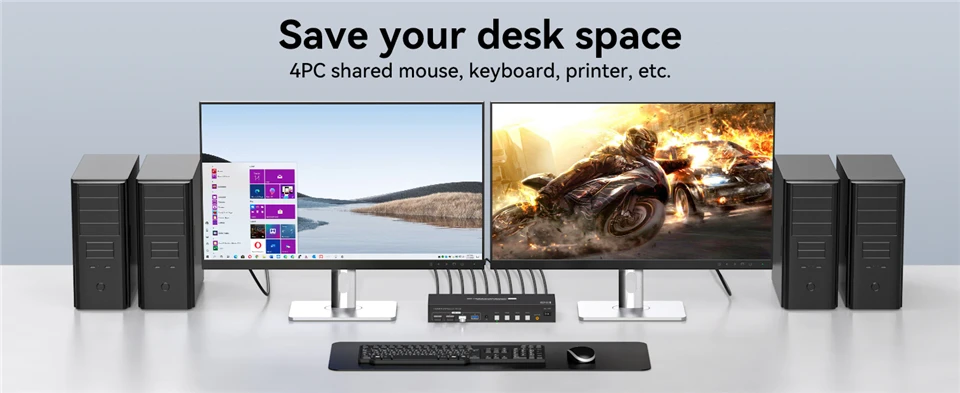

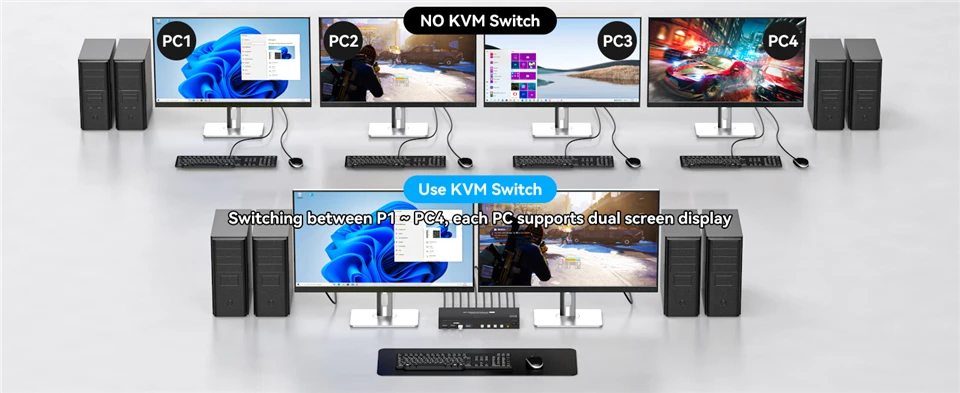

• 4 computers/laptops share one set of keyboard, mouse and dual monitors, and more USB 3.0 peripherals;

• Support maximum resolution up to 4K 144Hz Dual monitors output

• support up to 8K@60Hz/4K@144Hz,2K@165Hz/1080P@240Hz for extended and mirrored display;

• Compatible with Windows 11/10/7/2000/XP/Vista, Linux, UNIX, Ubuntu, Fedora, and other systems;

• Advanced switching modes: push button and IR remote control;No complicated installation is required, and non-professionals can easily operate it;

• The ports that need to plug in HDMI/DP/USB cables are all hidden behind the KVM, so the desktop doesn't get cluttered;

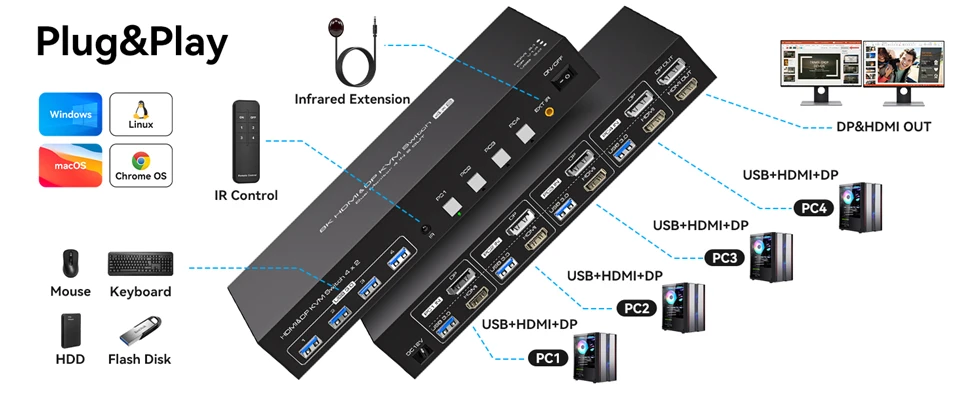

Connection steps:

1. Insert the DC/12V adapter into the KVM ;

2. Plug the HDMI and DP cable into the KVM and monitor;(Output)

3. Plug the HDMI cable,DP cable and USB cable into the KVM and your computer/laptop (HDMI/DP cables are not included)(Input)

DP IN1 A + HDMI IN1 B + USB IN1=PC1

DP IN2 A + HDMI IN2 B + USB IN2=PC2

DP IN3 A + HDMI IN3 B + USB IN2=PC3

DP IN4 A + HDMI IN4 B + USB IN2=PC4

4. Insert the mouse and keyboard into the KVM switch

Note：

1. Most of the reasons why only one video output works is because of incorrect connection. Please make sure each PC has(1 HDMI cable+ 1 DP cable+1 USB cable) connect to the KVM.

2. If the KVM switch does not work, you can turn off the switch on the panel and turn it on again after 2-3 seconds, and it will return to normal.

3.Before purchasing this HDMI DP dual monitor KVM switch, please make sure that connecting your computer directly to the monitor can work normally,Otherwise, the KVM will not be available.

4. Note: HDMI cables and DP cables are not included

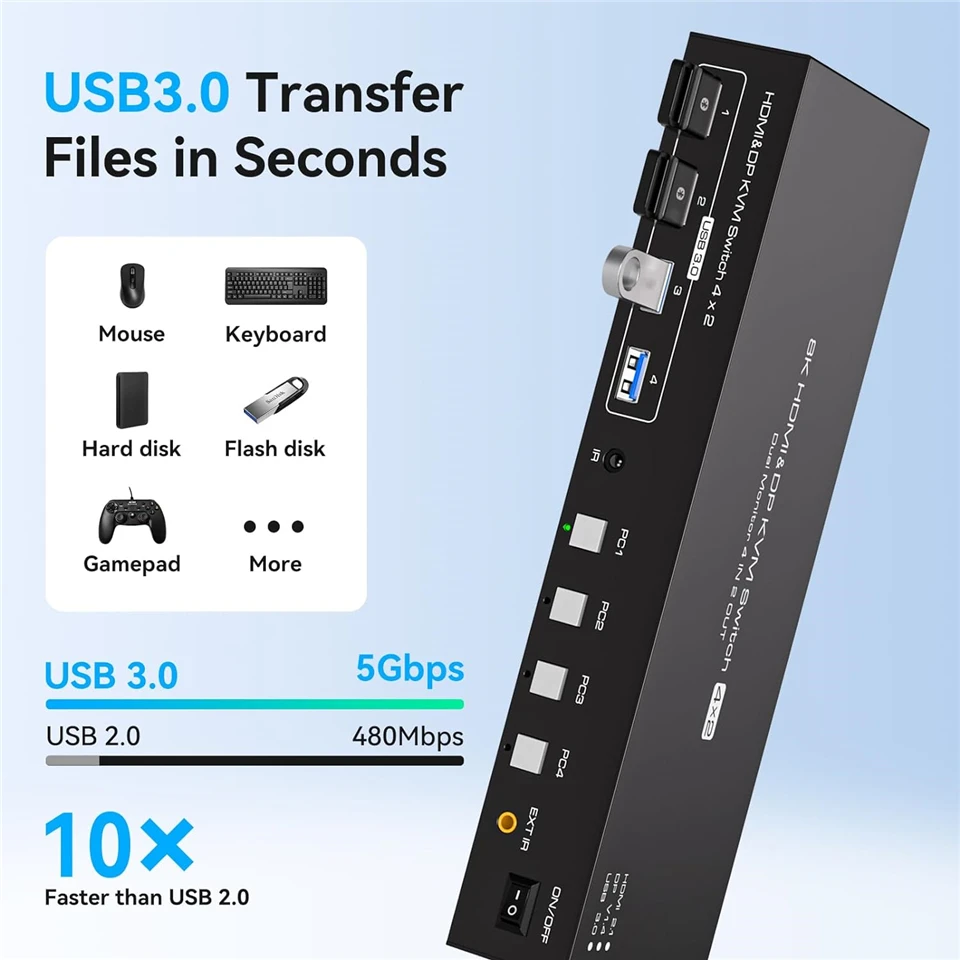

USB 3.0 interface 4 Computers 2 Monitors with 5Gbps

Supports 5Gbps data transfer speed , can transfer files in Seconds, Much faster than USB 2.0.

3 x USB 3.0 ports, backward compatible with USB 2.0 and USB 1.1, share USB devices such as keyboard mouse scanner, printer, flash drive, etc.

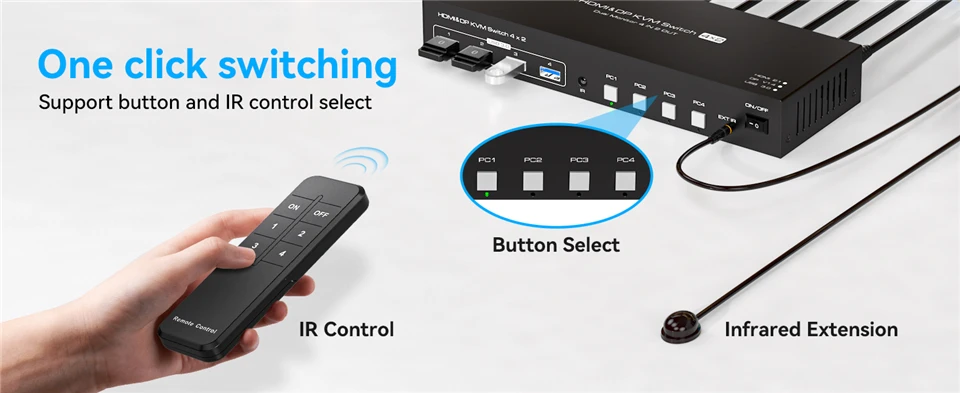

Support 2 Switching Modes

Quickly switch between the 4 computers with just one click of the switch button on the panel or use the IR remote controller (included in the package).

Please note: This KVM does not support hotkey switching.

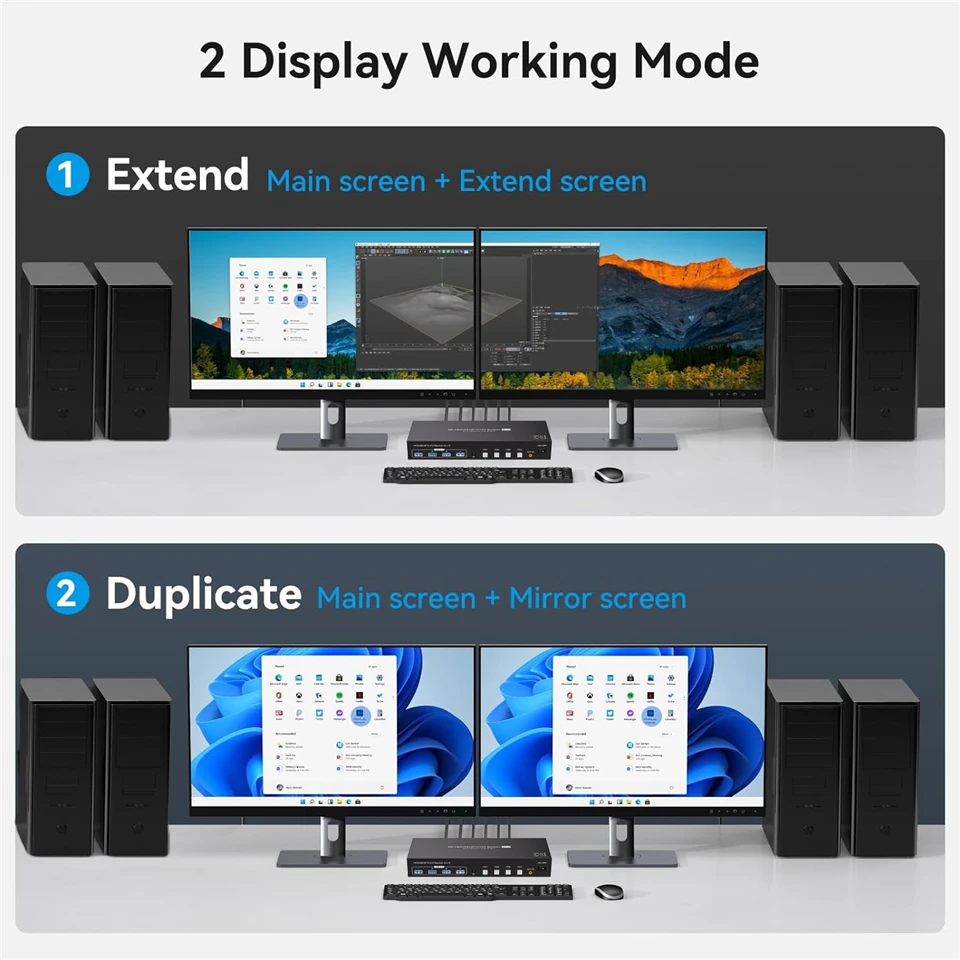

2 Display Modes

• Extended Display

• Mirrored Display

If you are a designer or illustrator, you can use this mode to see the effect while working.

• 1)Extended mode can output two different screens and mirror mode can output two identical screens.Note：If your graphics card has a splicing screen function, you can use the splicing screen mode.

• 2) The requirement for this KVM to achieve a dual-screen display is that each PC you connect to has the capability to support a dual or multi-screen display. This has nothing to do with KVM.
