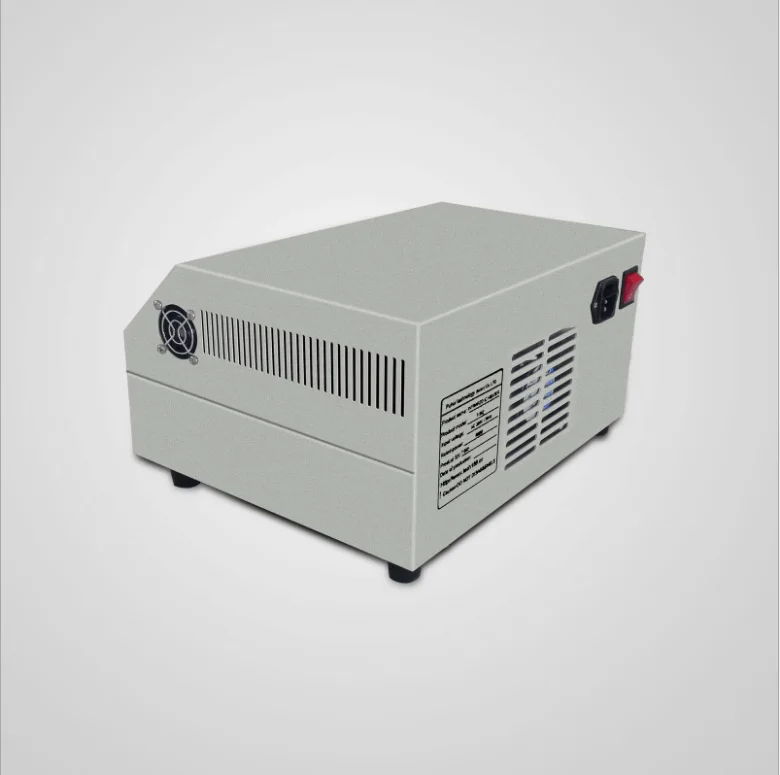

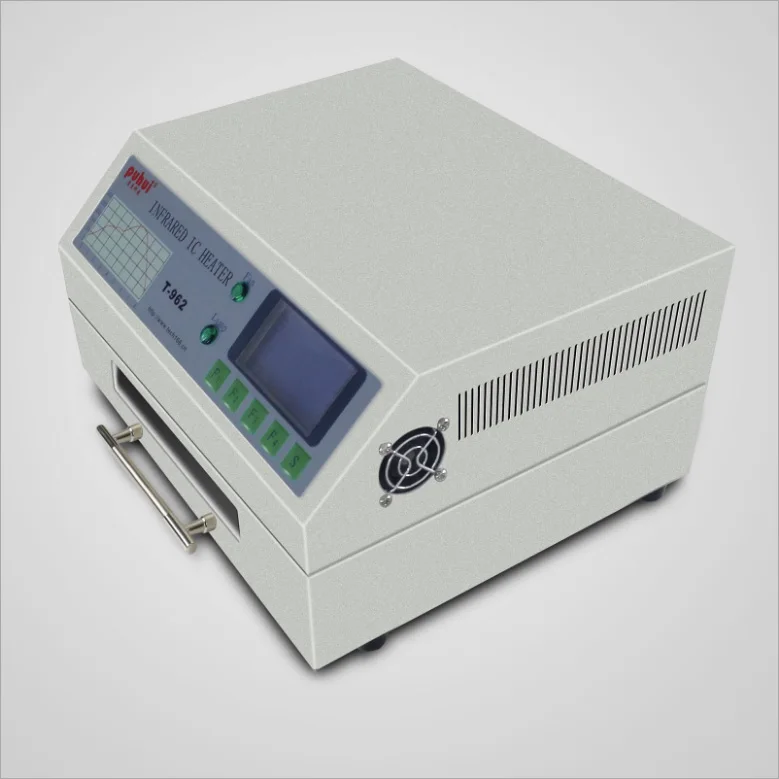

T-962 220V Desktop Reflow Oven Infrared IC Heater Soldering Machine 180 x 235mm

 Here for sale is T692 Infrared SMD BGA IC Heater Automatic Reflow Oven 180×235mm


  ECO T962 is a micro-processor controlled reflow oven. The device is powered by standard 110V~240VAC 50/60HZ.

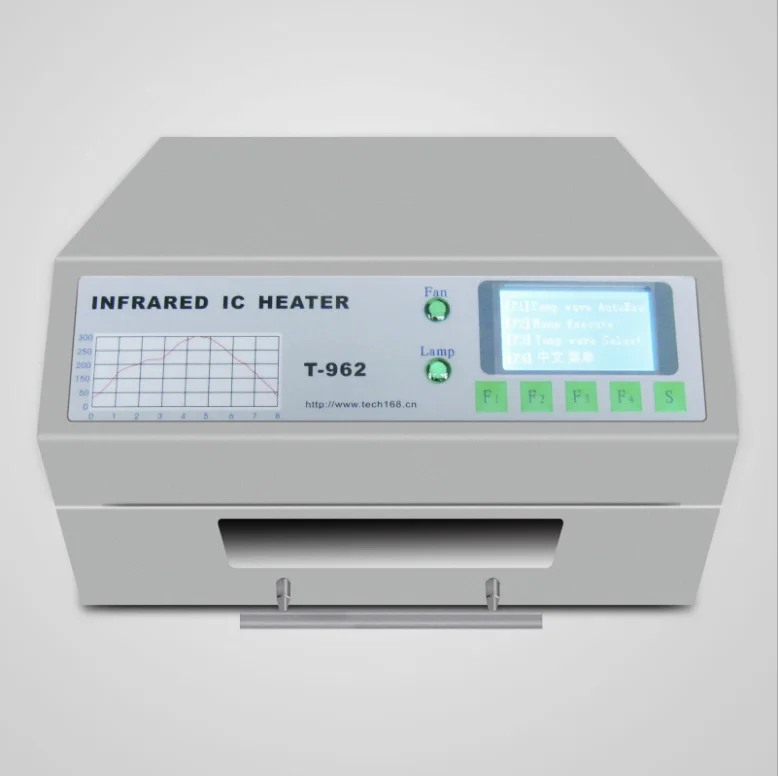

  User interface is implemented by way of T962 input keys and an LCD display.

  Pre-Set heating Modes are selected by user interaction with thermal cycle progress observed on LCD display.

  This self-contained reflow station allows safe soldering techniques and the manipulation of SMD.BAG and

  other small electronic parts mounted on a PCB assembly. The T962 may be used to automatically "re-flow" solder to correct bad solder joints,

  remove/replace bad components and complete small engineering models or prototypes.

  A windowed drawer is designed to hold the work-piece. Thermal cycle accuracy is maintained by closed loop

  micro-computer control with infrared heaters, thermocouple and circulating air.

  The T962 is simple to use, the soldering process is completely automatic defined by pre-defined thermal cycles.

  The faintness controls a technique and can see the drawer type workbench , Make whole soldering process at you of the under

  surveillance automatic completed; Can soldering the most smart small part. Adopted a high and dependable design,make what you see gratifying and rest assured.

  1. The T962 is a self-contained Micro-Processor controlled IC Heater and solder rework station.

  2. Uses up to 800 watts of energy efficient Infrared heating and air circulation to re-flow solder in a large 180×235mm area.

  3. Parameters of Eight (8) Soldering cycles are Pre-Defined

  4. Soldering cycles are keypad selected and progress displayed on the T962 LCD.

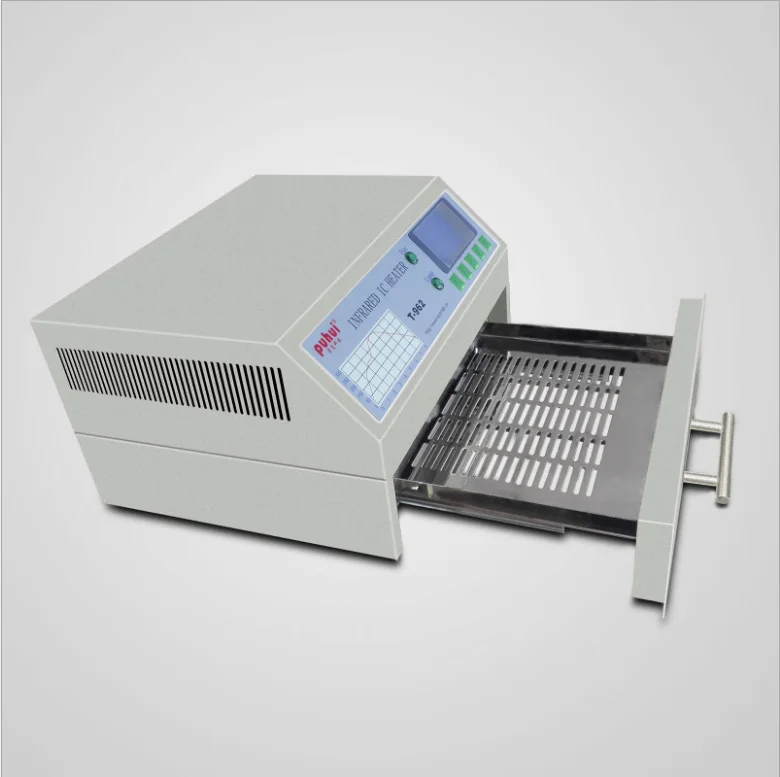

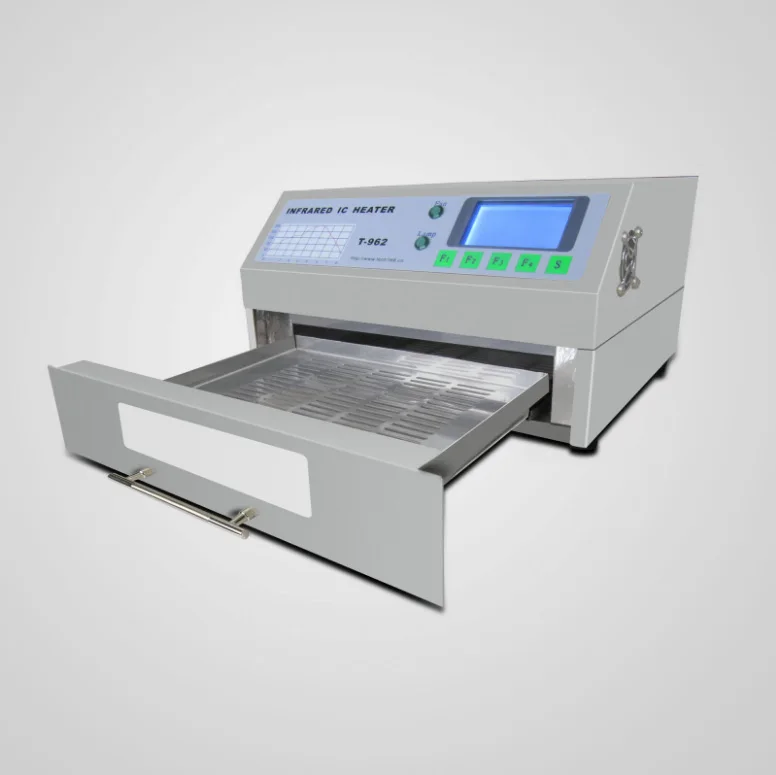

  5. A single windowed drawer holds assemblies within the heating chamber,

  6. The T962 design is ergonomic, practical and easily operated.

  7. The entire soldering process is completes automatically from Preheat, Soak and Reflow through cool- down.

  8. The T962 design is ergonomic, practical and easily operated.

  9. The T962 is an economical rework solution from single runs to on-demand small batch production.

  10. Light weight and a small footprint allows the T962 to be easily bench positioned transported or stored.


​
