SVPRO 16MP Autofocus USB Camera with Microphone UVC Lightburn Mini Camera Module USB Security Webcam with No Distortion Lens

Wholesale electronics best price, bulk price,wholesale accessories

16MP Autofocus USB Camera with Microphone UVC Lightburn Mini Camera Module USB Security Webcam with No Distortion Lens

1) 1PC 16mp usb camera module

2) 1PC 1m usb cable

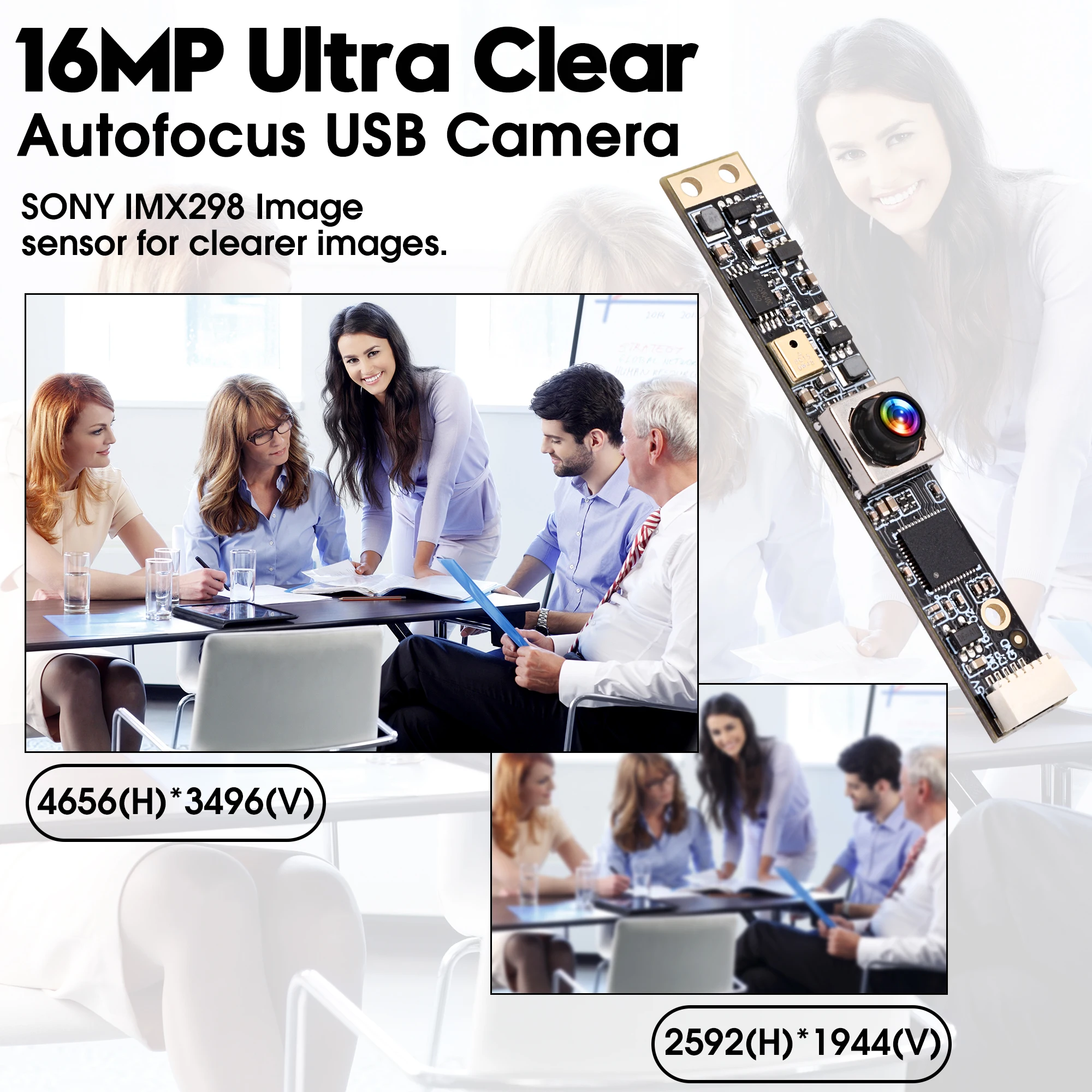

1) More than HD: This camera adopts an 16MP IMX298 sensor for sharp image and
accurate color reproduction, Max. still resolution 4656 x 3496 .

2) 1/2.8” CMOS IMX298 Image sensor Webcams: High quality and low color reproduction deviation produce sharp images and more details. Picture format MJPEG or YUY2 optional, cameras with high resolution can be used in any video system for personal or industrial

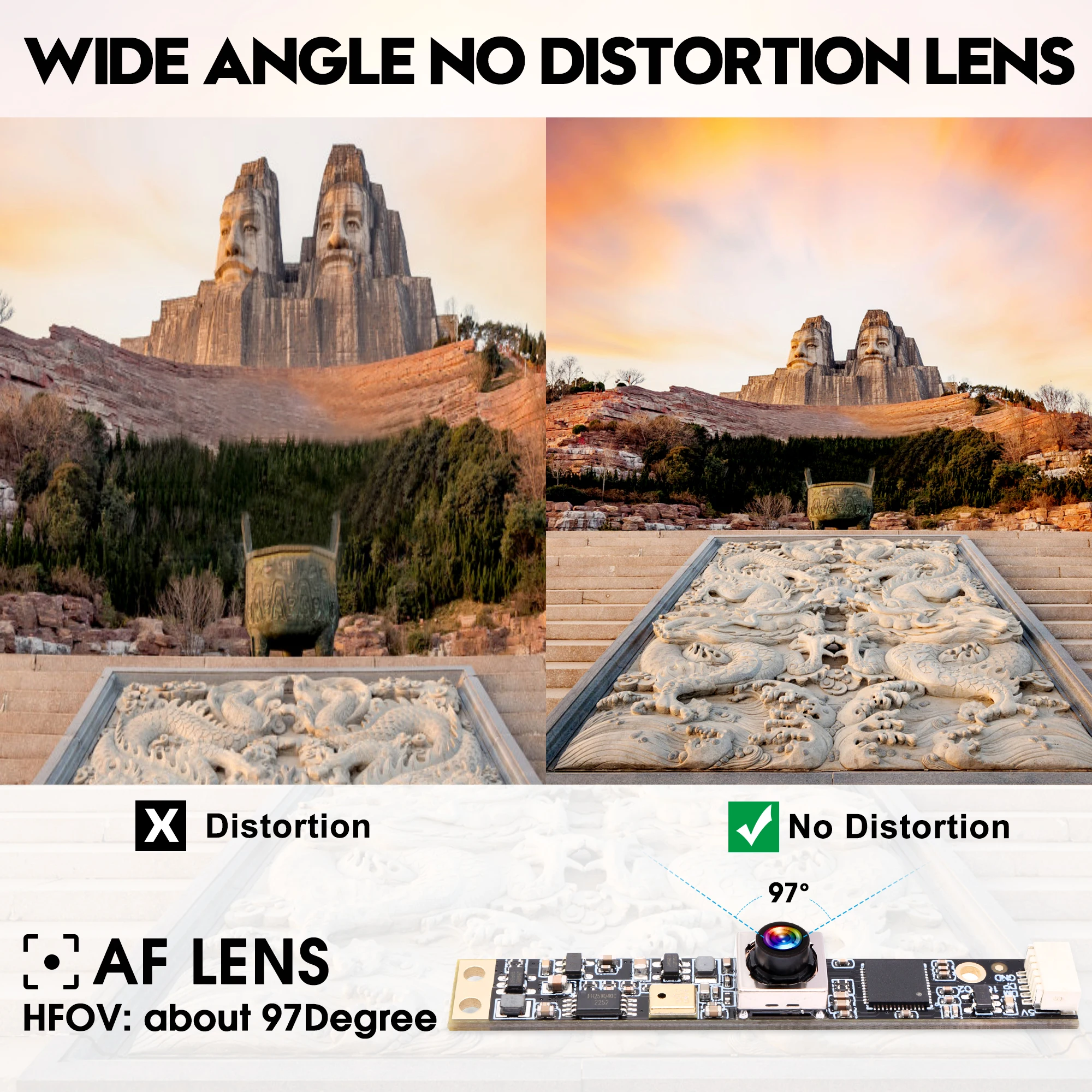

3) No Distortio: This camera module has a 100 degree autofocus Lens, transmitting the most realistic image effect.

4) Autofocus: Shoot objects in millimeter level and in the distance on the same camera, automatically controlled without lens adjustment tool, closer and easier than the fixed focus camera

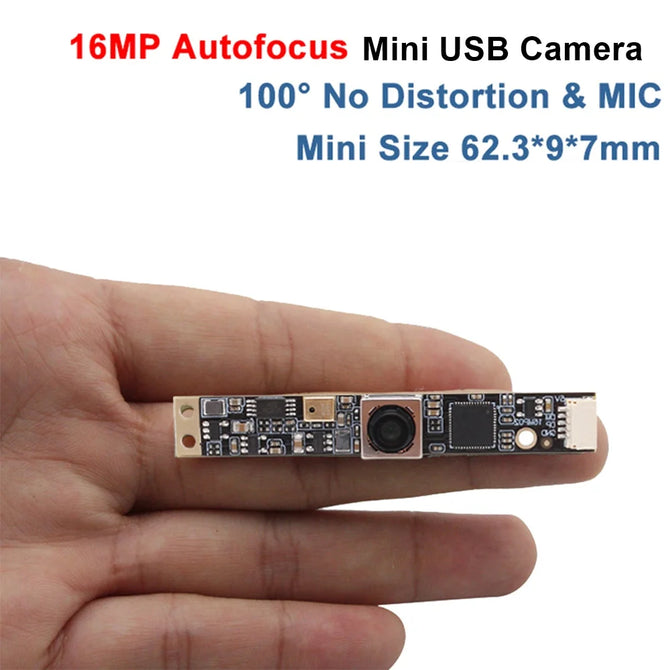

5)Mini Size: Small outline 62.3*9mm for embedded application

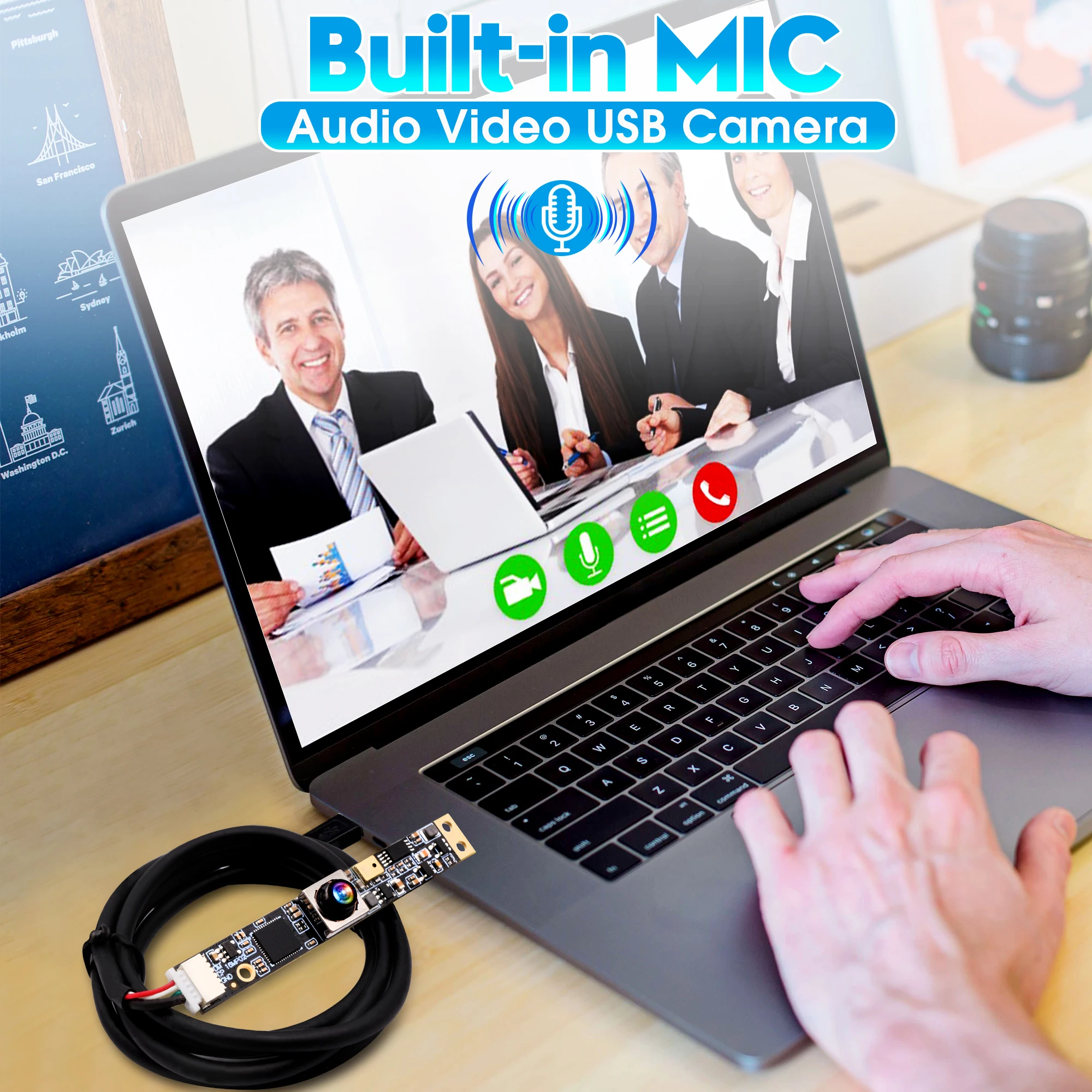

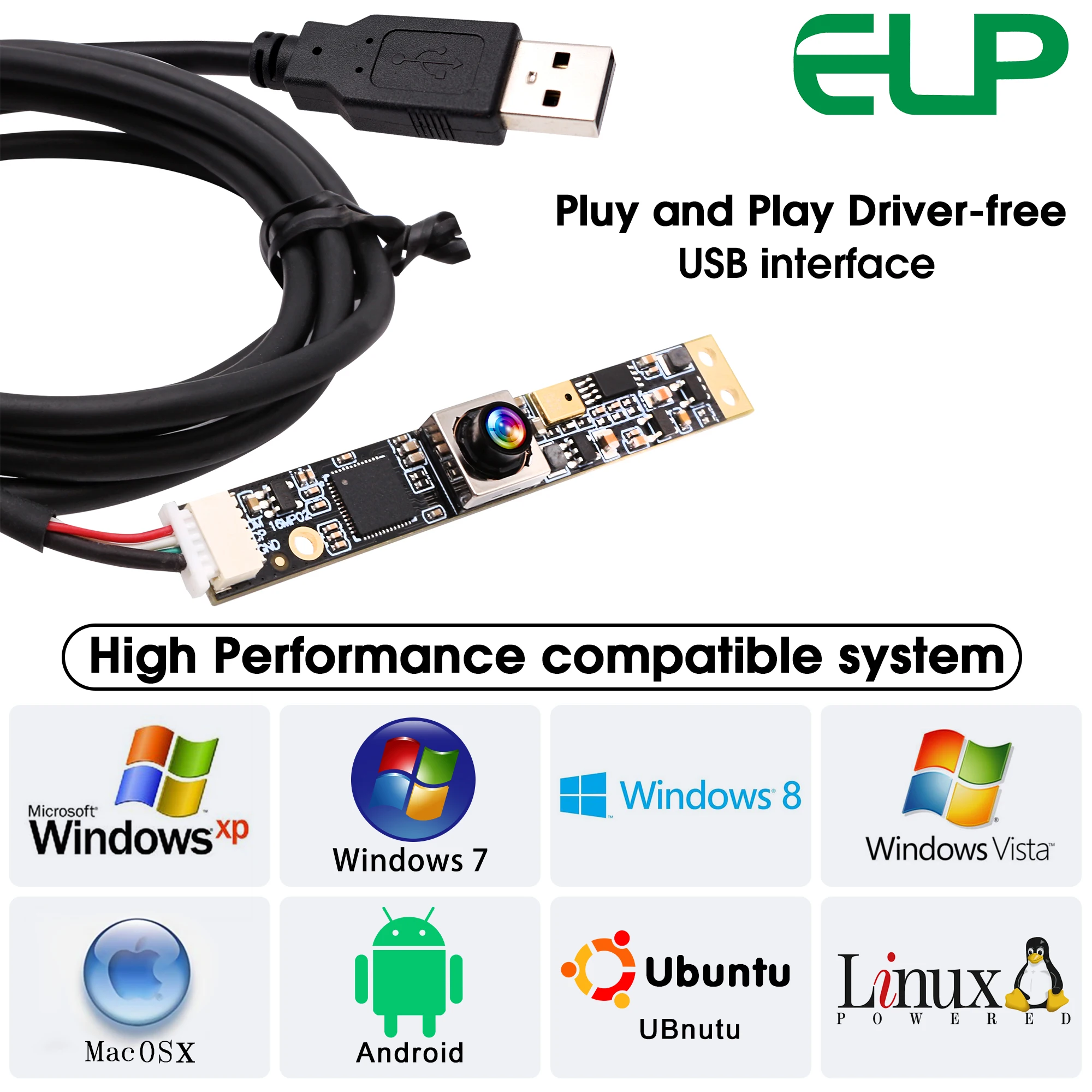

6) Plug & Play: UVC-compliant, just connect the camera to PC, laptop, Android device, or Raspberry Pi with the included USB cable without extra drivers to be installed. Compatible with Windows/Linux /Mac OS/Android, support OTG protocol and Raspberry Pi.

7) Applications: This tiny camera is highly recommended for the video surveillance system, live streaming, videoconference, dashcam, and other vision.

Model	ELP-USB16MP02-AF100 (100 degree lens)
Name	16 Megapixel High Resolution HD Autofocus USB Camera Module
Sensor	IMX298
Sensor Size	1/2.8inch
Pixel Size	1.12um x 1.12um
Image Area	6.4mm x 5.3mm
Max. Resolution	4656(H) X 3496(V) 16 Megapixel
Compression Format	MJPEG / YUY2 (YUYV)
Resolution & Frame Rate	4656 x 3496 MJPEG@10fps YUY2@1fps       4208 x 3120MJPEG @10fps   4160 x 3120 MJPEG@10fps                           4000 x 3000MJPEG @10fps   3264 x 2448MJPEG @10fps YUY2@1fps       2592 x 1944 MJPEG@10fps YUY2@1fps   2320 x 1744MJPEG @30fps YUY2@1fps       2048 x 1536 MJPEG@30fps YUY2@1fps      1920 x 1080MJPEG @30fps YUY2@5fps       1600 x 1200 MJPEG@30fps YUY2@5fps      1280 x 960MJPEG @30fps YUY2@10fps      1280 x 720 MJPEG@30fps YUY2@10fps      1024 x 768MJPEG @30fps YUY2@10fps      800 x 600 MJPEG@30fps YUY2@15fps        640 x 480MJPEG @30fps
Min Illumination	0.5 Lux
Shutter Type	Electronic Rolling Shutter / Frame Exposure
Connecting Port Type	USB2.0 High Speed
Free Drive Protocol	USB Video Class (UVC)
AEC	Support
AWB	Support
AGC	Support
Adjustable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure
Lens Parameter	AF LENS HFOV: about 100 Degree
Power Supply	USB BUS POWER 4P-2.0mm Socket
Operating Voltage	DC5V
Working Current	150mA~280mA
Working Temperature	-10~70℃
Storage Temperature	-20~85℃
Board Size /Weight	62.3x9x7mm / about 20g
Cable	Standard 1m
Operating System Request	WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC (above Linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
