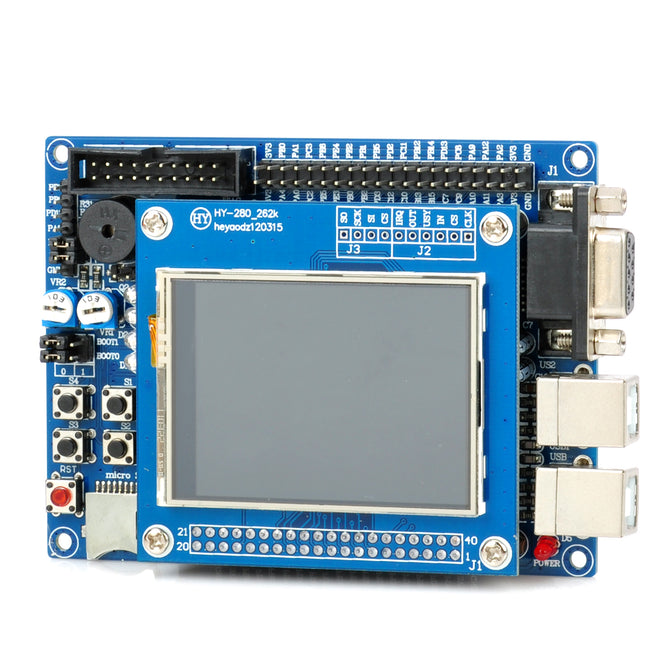

STM32 ARM 2.4" TFT 512K Flash 64K SRAM Development Board - Black + Blue

- Quantity: 1
- Color: Blue + Black
- Material: Plastic + Metal + PCB
- CPU: STMicroelectronics (ST) is based on the ARM Cortex-M3 32-bit processors chip STM32F103VET6 the LQFP100 foot, on-chip 512KB FLASH, 64KB of RAM ( on-chip integrated 12Bit A/D and D/A , the PWM , the CAN , USB, SDIO, the FSMC and other resources)
- 32 bit RISC performance processor
- 32 bit ARM Cortex-M3 structural optimization
- 72MHz working frequency, 1.25 DMIPS/MHz
- Hardware division and single-cycle multiply
- Fast nested interrupts, 6 to 12 clock cycles
- MPU protection set access rules
- 1 x JTAG debug interface (20-pin standard)
- 1 x Power LED (red), 4 x State LEDs (High blue light)
- 1 x RS232, support 3-wire ISP
- 1 x USB 2.0 slave mode interface
- 1 x Micro SD / TF slot, uses SDIO method
- 2.4", 260K bit color TFT (240 x 320 with touch screen) interface, use FSMC of the MCU16-bit interface mode control, touch screen uses ADS7843 chip, with SPI interface.
- M25P16, the SPI bus (16MB capacity) serial FLASH. Use for data storage / code / font and maps. Using the SOP8 the package can be replaced with a larger capacity FLASH
- With 4 functional keys
- Great for DIY project
- Packing list:
- 1 x Development board
- 1 x USB cable (149cm)
- 4 x Screws
- 1 x CD

?
