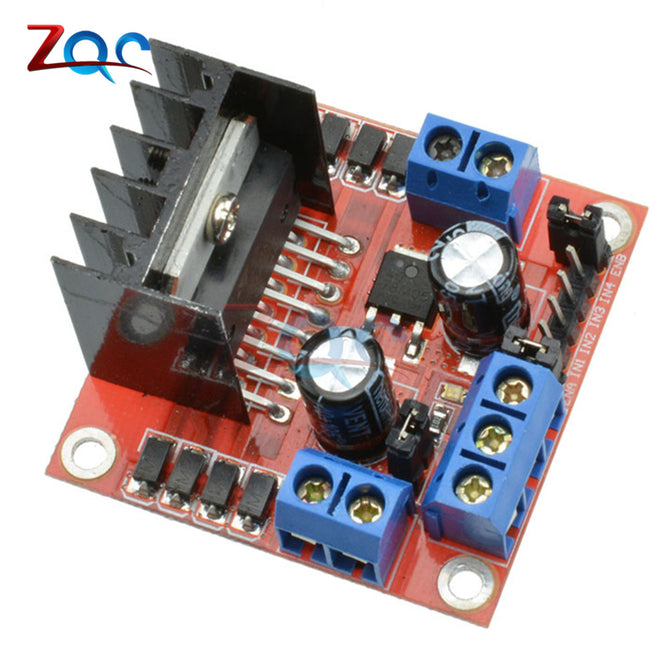

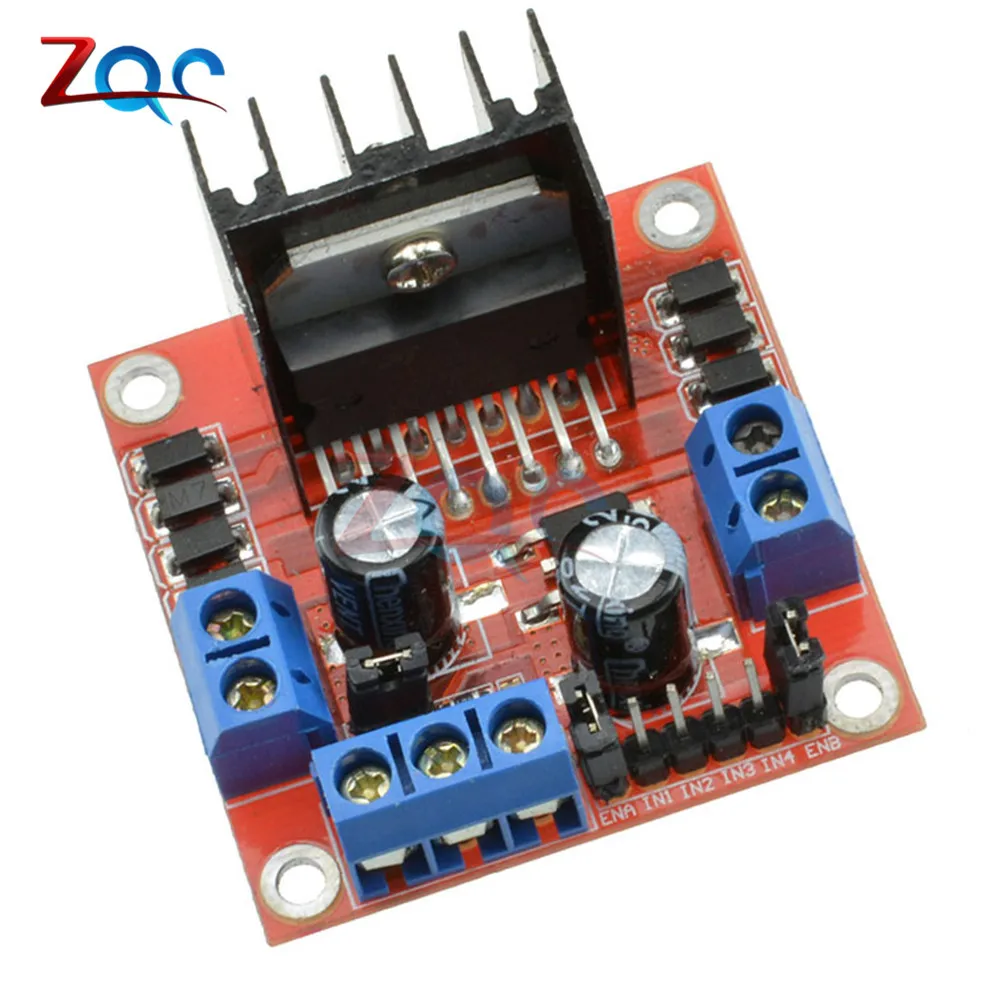

Stepper Motor Drive Controller Board Module L298N Dual H Bridge DC Motor Driver Module for Arduino Dual Channel
US$ 2.46
US$ 4.08
: In stock
: 59411
Feature: L298N as main chip, ST corporation production. Low heat,outstanding anti-interference performance. High working power to 46v,large current can reach 3A MAX and continue current is 2A, power to 25w. ...
Share:
Feature:
L298N as main chip, ST corporation production.
Low heat,outstanding anti-interference performance.
High working power to 46v,large current can reach 3A MAX and continue current is 2A, power to 25w.
Can drive one 2-phase stepper motor, one 4-phase stepper motor or two DC motors.
Built-in 78M05,get power from drive power,however, when drive power over12V, please use the external 5v power as power supply.
Large capacity filter capacitance,afterflow protection diode, more stable and reliable.
Specification:
Double H bridge drive
Chip: L298N (ST NEW)
Logical voltage: 5V
Drive voltage: 5V-35V
Logical current: 0mA-36mA
Drive current: 2A(MAX single bridge)
Max power: 25W
Size:43 x 43 x 26mm
Note:
This module has a built-in 5v power supply, when the driving voltage is 7v-35v, this supply is suitable for power supply
DO NOT input voltage to +5v supply interface, however ledding out 5v for external use is available.
When ENA enable IN1 IN2 control OUT1 OUT2
When ENB enable IN3 IN4 control OUT3 OUT4
Package Included:
1 x Stepper Motor Drive Controller Board Module L298N Dual H Bridge DC for Arduino
