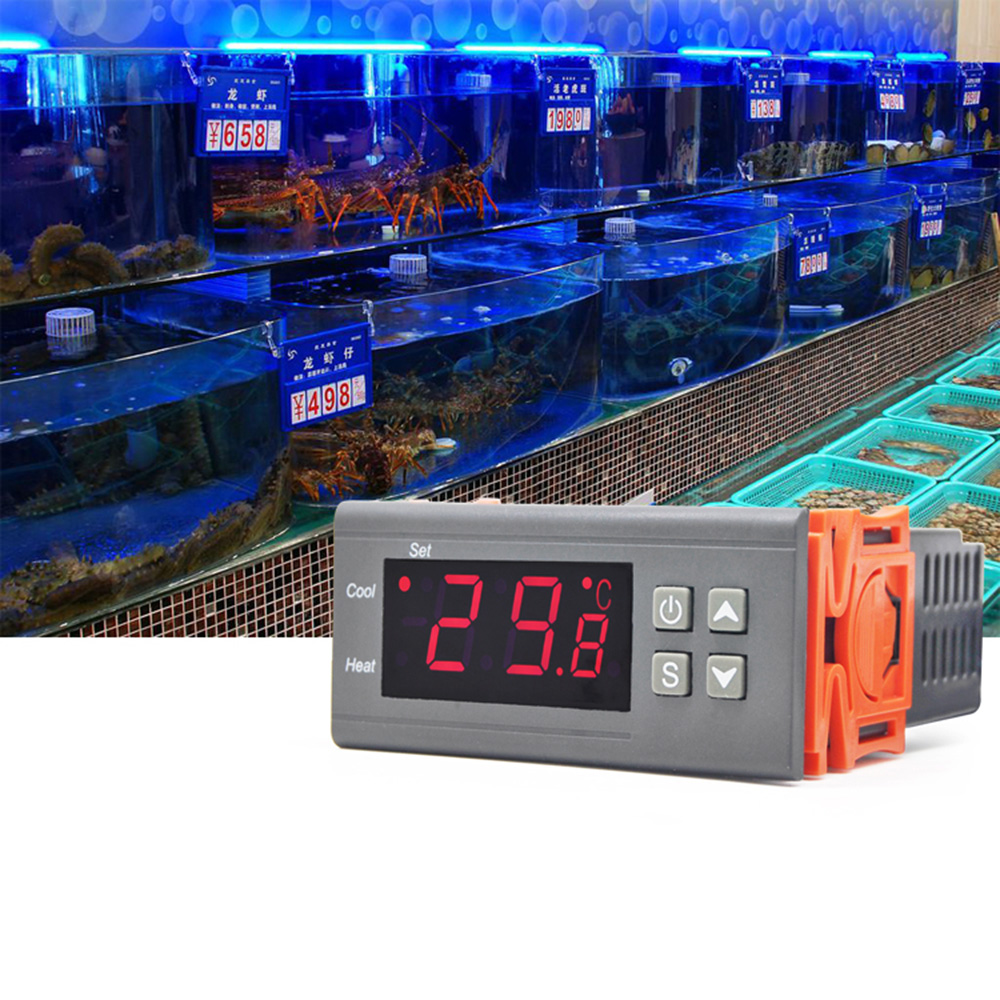

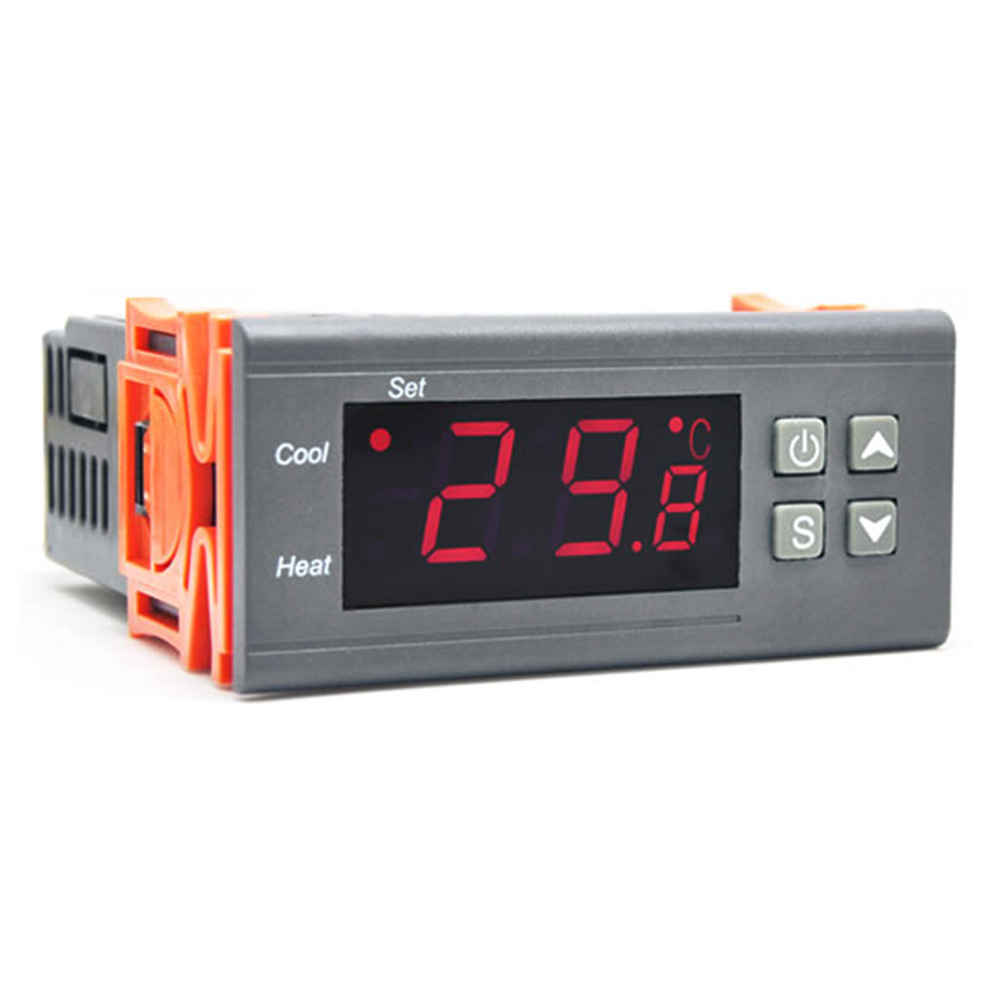

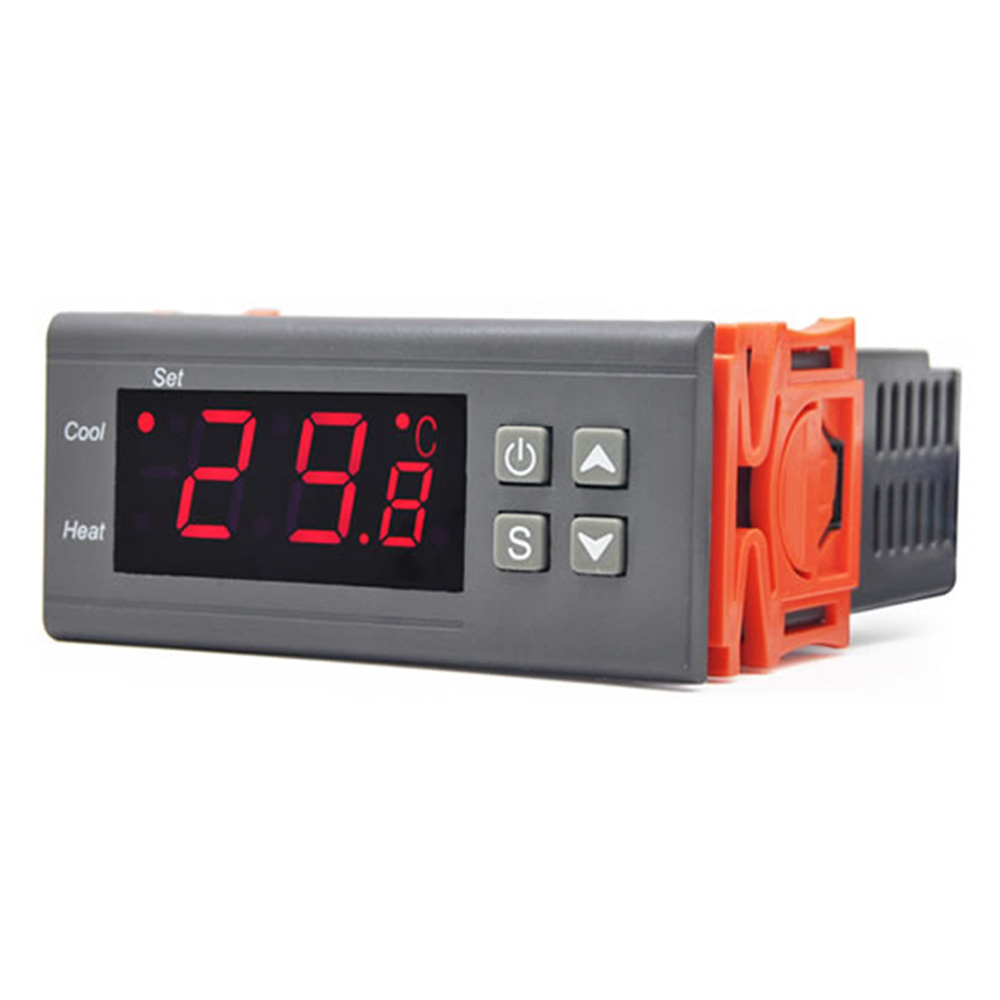

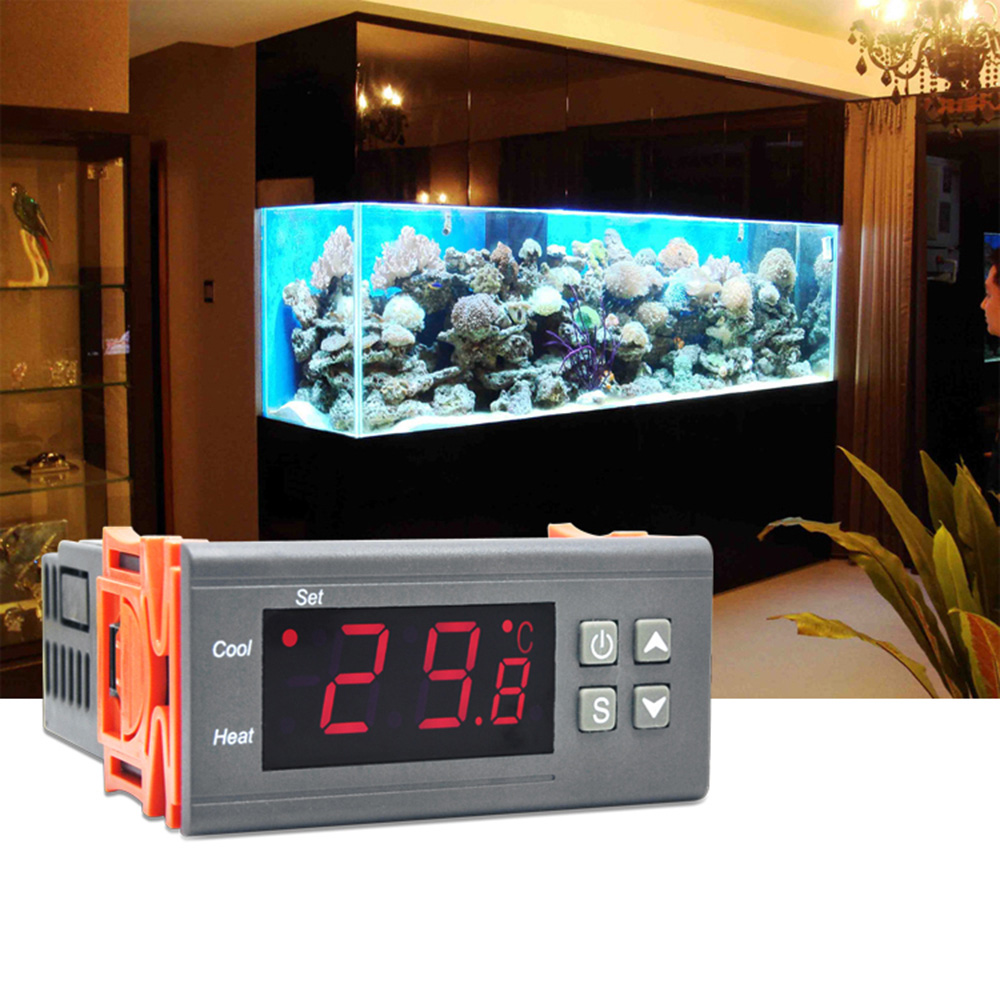

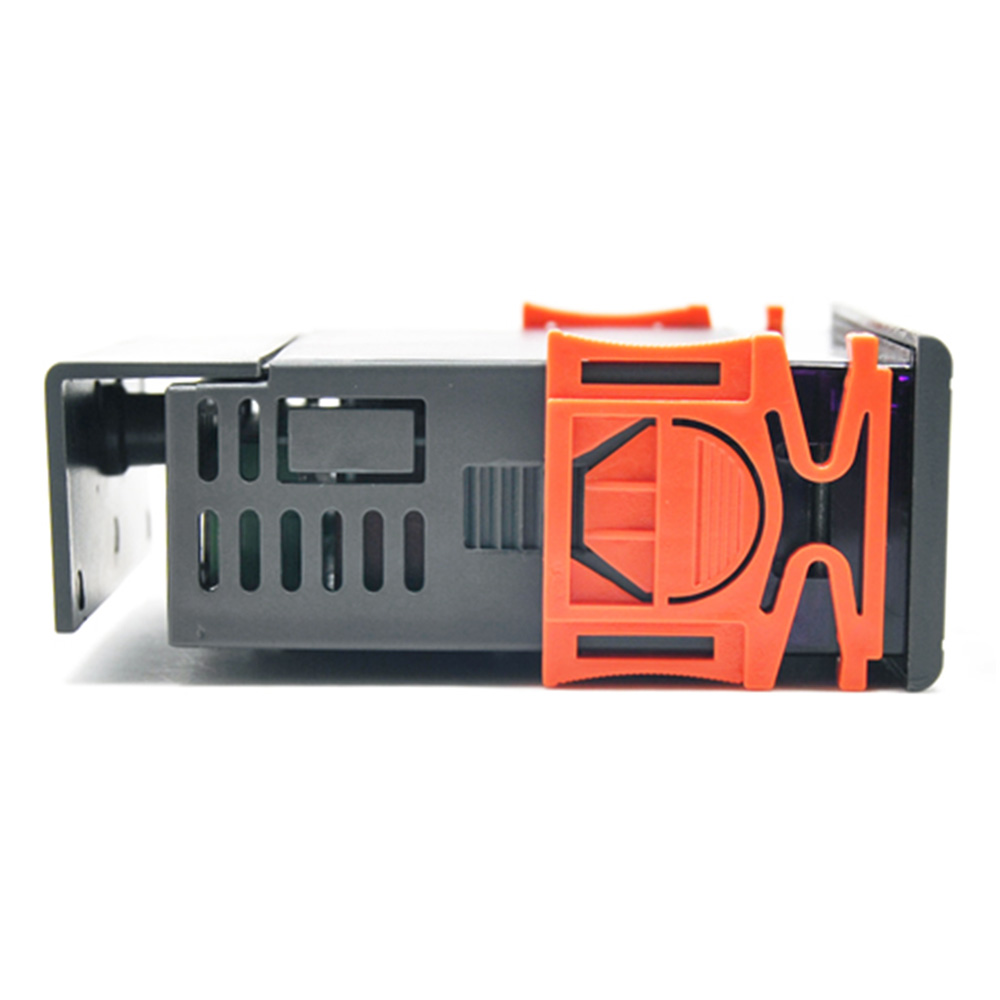

STC-1000+ Upgraded RC-316M 230V 10A Digital Temperature Controller Regulator Thermostat With Cool Heat Auto Switch Grey
US$ 14.35
US$ 15.72
: In stock
: 578670
Product Description Model Number: RC-316M With Backlight Or Not: Yes Display Type: Digital DIY Supplies: Electrical Features: LED display Best cost-effective Traditional design Parameters: Temperature measuring and controlling range: -50.0~99.9¡ãC...
Share:
| Product Description | |
|---|---|
| Model Number: RC-316M | With Backlight Or Not: Yes |
| Display Type: Digital | DIY Supplies: Electrical |
Features:

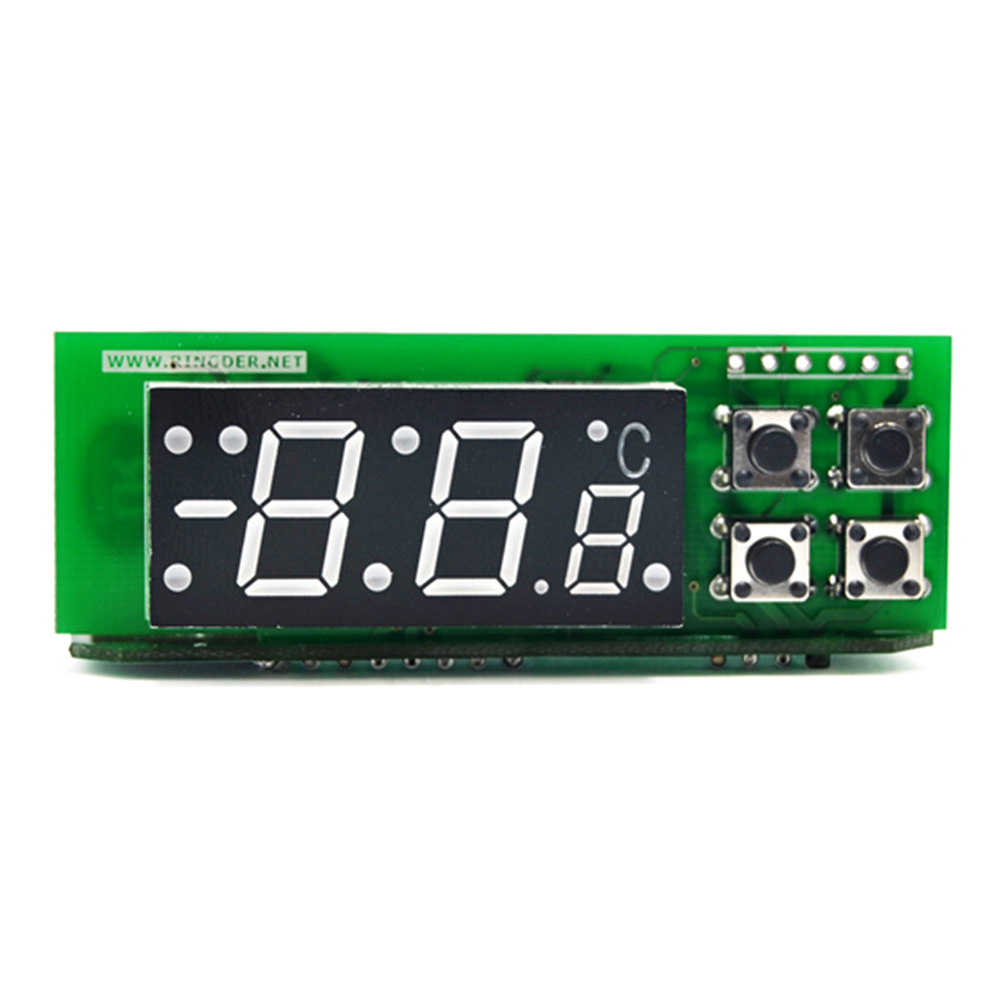

- LED display
- Best cost-effective
- Traditional design
Parameters:
- Temperature measuring and controlling range: -50.0~99.9¡ãC

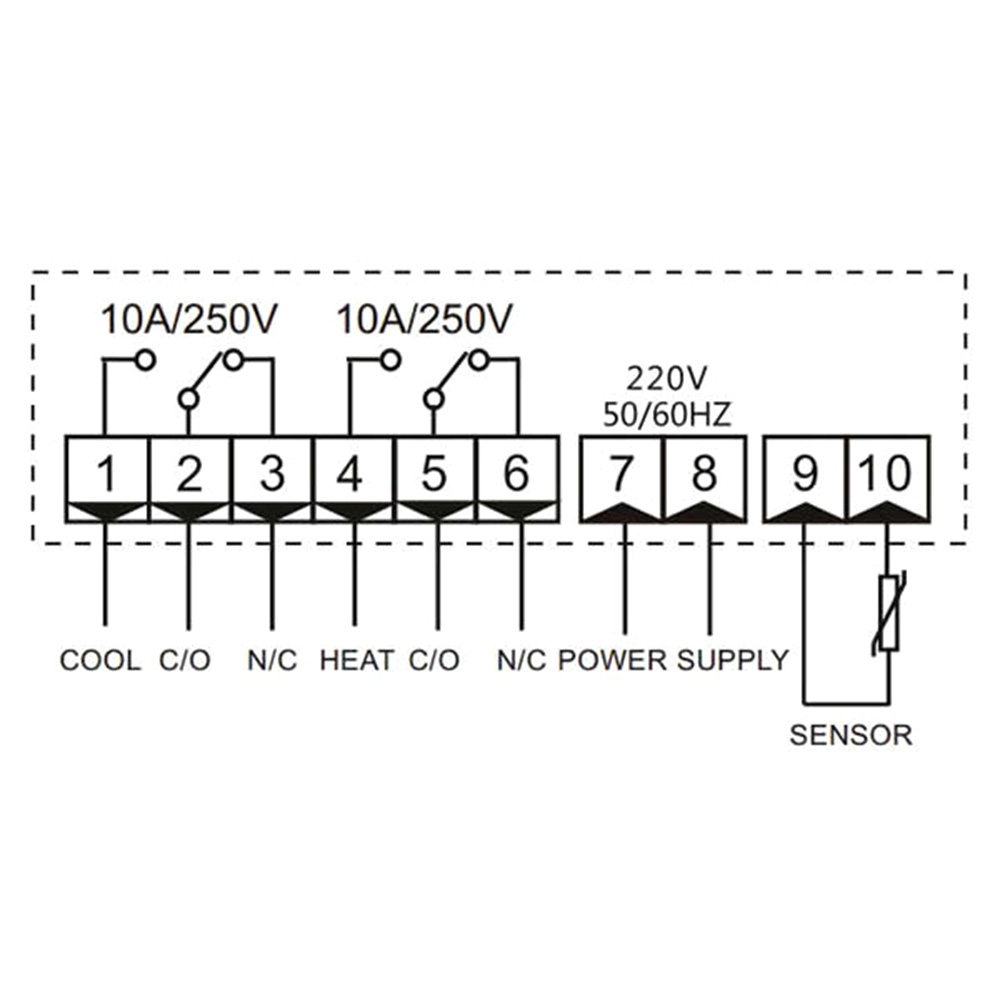

- Relay capacity:10A/250V
- Power supply: 220VAC¡À15%
- Input: 1 NTC sensor, sensor wire: 2m(standard)
- Accuracy: ¡À1¡ãC, Resolution: 0.1¡ãC
- Consumption: ¡Ü3W

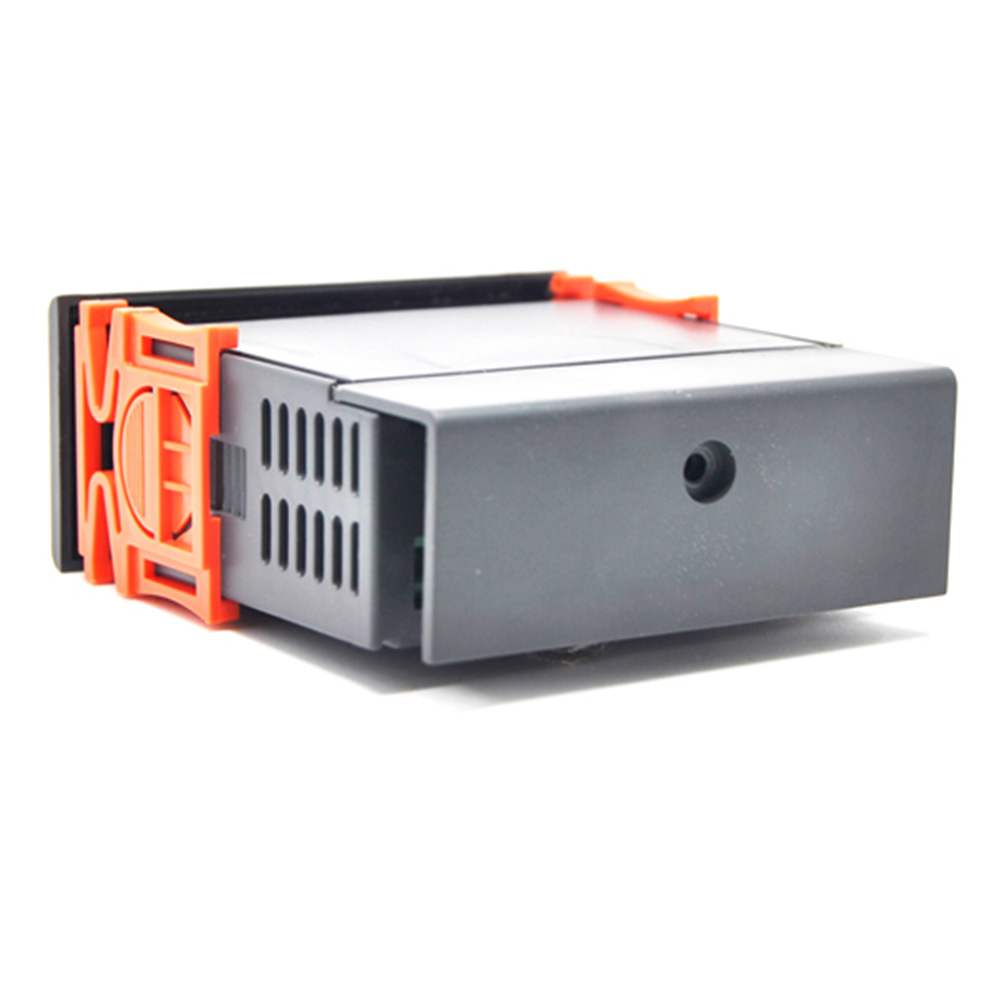

- Cut-out size: 71¡Á29(mm)
- Ambient requirements: temperature: -10~60¡ãC, humidity: 20~85% (No condensate)
- Output: resistive load¡Ü1100W/220V, inductive load¡Ü275W/220V, filament lamp¡Ü220W/220V
Function Menu:
| Function | Setting range | Default | Code |
| Temp set value | -50.0~99.9 | 10.0¡ãC | F1 |
| Differential set value | 0.1~10.0 | 0.5¡ãC | F2 |
| Compressor delay time | 1~10 | 3Min. | F3 |
| Temp calibration value | 10.0~10.0 | 0¡ãC | F4 |
Package Includes:
1 * Temperature Controller
1 * Temperature sensor
1 * Instruction Manual
