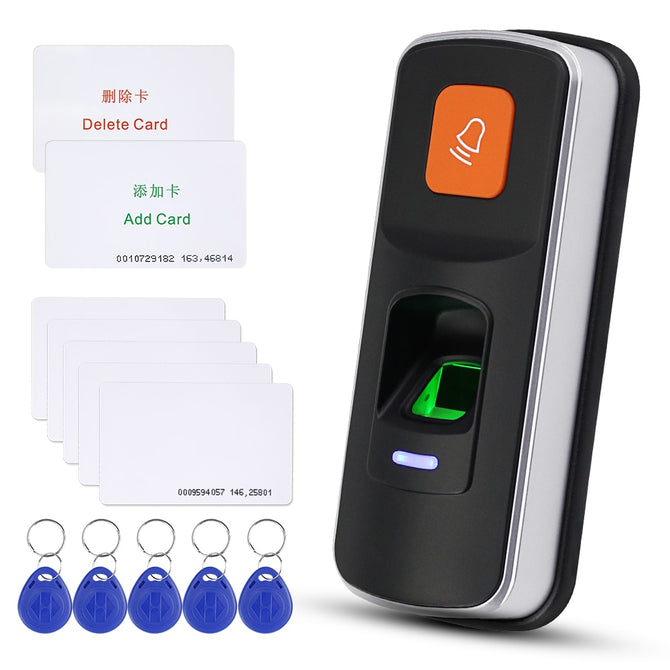

Standalone RFID Fingerprint Access Control System Biometric 125KHz Reader Door Opener Support SD Card WG26 + 10pcs Cards Keyfobs

RFID Standalone Fingerprint Lock Access Control Support SD Card

High quality / 1000 user capacity / 2 unlock method

• Material: ABS high quality material
• Fingerprint capacity: 1000
• RFID card capacity: 1000
• Working frequency: 125KHz
• Resolution: 450 DPI
• Identification time: <1S
• FAR: <0.0001%
• FRR: <0.01%
• Card reading distance: 0-10CM
• Built-in Card Reader: EM or EM Compatible
• Identification method: fingerprint, RFID card
• Doorbell button: support wired doorbell
• Wiegand signal: WG26 input/output
• Can set management card: yes
• Working voltage: DC 12V
• Working current: ≤ 100mA
• Working temperature: -0 ° C ~ 45 ° C
• Working Humidity: 20% ~ 80%
• Product size: 158*65*27mm

Can set Management fingerprint and Management card. Very easy to program!

The back (1+8 pinhole key) set fingerprint administrators, set method reference manual!

Don't need to connect to computer.

ABS fire retardant material shell

Very beautiful design. Has a door bell button, can install a wired door bell.

Available SD Card Upload / Download The Data

SD memory card can be used to upload, download, login data, you can edit and name the user directly.
Upload to the fingerprint machine again, but can’t delete user and add user directly (add/ delete user must use administrators' fingerprint or card to use)
Note: SD card need customer to purchase. This machine machine not equipped SD card.

RFID Cards and Keyfobs

Material: PVC / ABS
Working Frequency: 125Khz
Support: read only, not support write.
Reading distance: 0-10cm
Each one has a unique ID number printing on it
Keyfobs Color: we will send the blue by default, if you want other color, please lease a message to us.
Quantity: 5pcs Cards and 5pcsKeyfobs. If you want more RFID key cards, please contact us. Thank you!

Wiring Diagram

(Note: Both of the power supply, lock, exit button are Not included in the package, need to buy extra)
