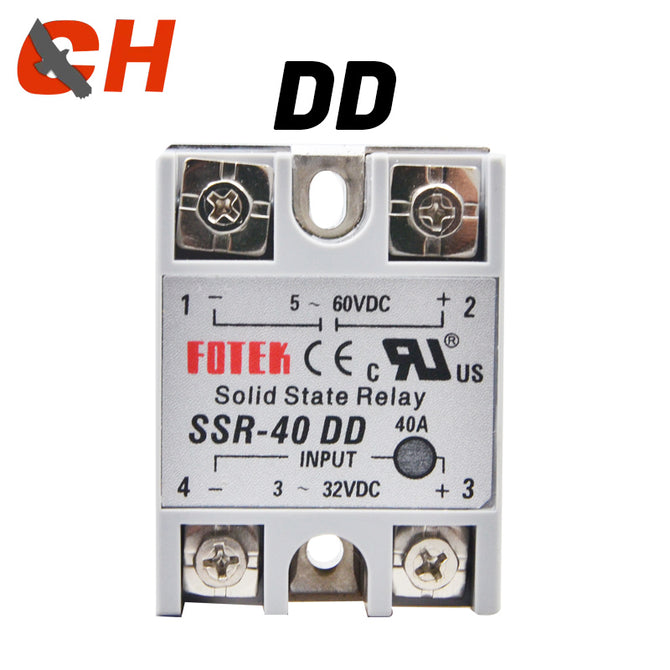

SSR- 25DD 40DD 60DD 80DD SSR Single Phase DC Control DC Heat Sink 3-32VDC To 5-220VDC25A 40A 60A 80ADD Solid State Relay
US$ 5.02
US$ 6.53
: In stock
: 61875
DC-DC Single Phase Solid State Relay DC DC SSR Module 10A 25A 40A DD Input Voltage 3-32V 12V DC TO 5-60V DC Output Load You need choose the correct type...
Share:
DC-DC Single Phase Solid State Relay DC DC SSR Module 10A 25A 40A DD Input Voltage 3-32V 12V DC TO 5-60V DC Output Load
You need choose the correct type (the current and the control Mode)
Also a suitable radiator(to dissipate heat of SSR) is improtant.
Notice:
As the generate heat of SSR is too high,SSR must be loaded on Radiator when the current of load is over 10A.And there are must put the thermal Grease Compound between SSR and Radiator.
In meanwhile, the cooling fan is necessary when the current is over 60A.
The Ratio depend on The kind of loading for your Equipment.
Resistive load: 60% Inductive load: 30%
Input Voltage |
3-32VDC 12mA &12V |
|||||
Output Control Load |
5-60VDC/5-200VAC(5-80Amp) |
|||||
Control type |
Isolated by photocouple |
|||||
Response time |
ON<10ms/OFF<20ms |
|||||
Voltage withstand |
Over 2.5Kvac/1Min |
|||||
Insulating strengh |
Over 50m/500DC |
|||||
Dimmension |
63*45*23.2mm |
|||||
