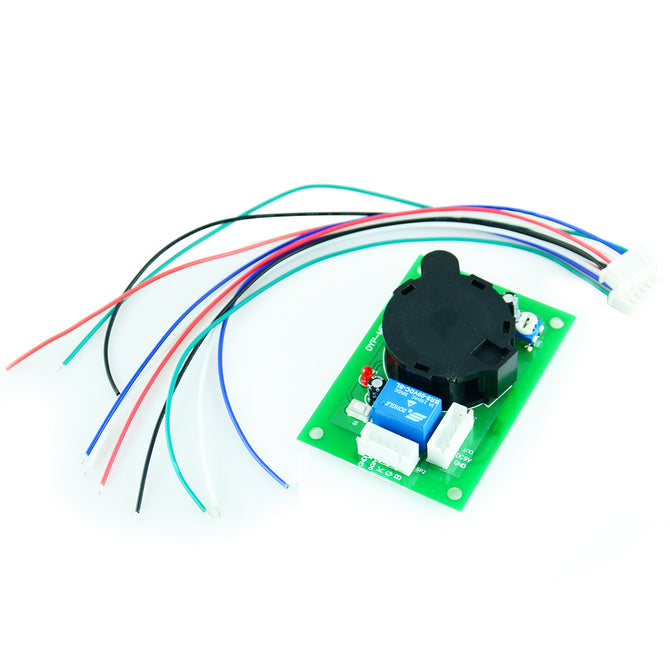

Smoke Sensor Module w/ Relay Output - Green + Black
US$ 9.54
US$ 13.67
: In stock
: 217737
Brand N/A Model N/A Quantity 1 Color Green + Black Material Plastic + iron Features Operating voltage: DC 9V; Standby current: 10uA; Induced current is less than 30mA; Output relay...
Share:
| Brand | N/A |
| Model | N/A |
| Quantity | 1 |
| Color | Green + Black |
| Material | Plastic + iron |
| Features | Operating voltage: DC 9V; Standby current: 10uA; Induced current is less than 30mA; Output relay normally open, normally closed, or the output high and low; Sensitivity adjustable; Operating temperature -5 -50'C; Smoke module wiring instructions |
| Specification | Black: Ground; Red: positive power supply DC9V; White: Relay normally open; Blue: relay common; Green: Relay normally closed terminal |
| Application | For your DIY project |
| English Manual/Spec | Have |
| Other | Hold down the test button 3S, light starts flashing, the relay normally open relay with common terminal connected. Can also be smoking cigarettes, the smoke blowing maze, 3S so light starts flashing, the relay, the relay normally open to the common terminal connected |
| Packing List | 1 x Smoke Sensor Module 2 x PH thread (pitch: 2.54mm, length 180mm) |
