Smart Electronics Soil Moisture Hygrometer Detection Humidity Sensor Module For arduino Development Board DIY Robot Smart Car wholesale bulk price

Description
1 This is a simple moisture sensor that can be used to detect soil moisture. When the soil is short of water, the module outputs a high level and vice versa. Use this sensor to create an automatic watering device that allows plants in your garden to be left unmanaged.
2 Sensitivity adjustable (blue digital potentiometer adjustment in the figure)
4 working voltage 3.3V-5V
5 module dual output mode, digital output is simple, analog output is more accurate.
6 Fixed bolt holes for easy installation
7 small board PCB size: 3cm * 1.6cm
8 power indicator (red) and digital switch output indicator (green)
9 comparator uses LM393 chip, stable operation

Small board interface description (4-wire system)
1 VCC external 3.3V-5V
2 GND external GND
3 DO small board digital output interface (0 and 1)
4 AO small board analog output interface

Instructions for use

1 Soil moisture module is most sensitive to environmental humidity and is generally used to detect soil moisture.

2 Module When the soil moisture does not reach the set threshold, the DO port outputs a high level, when the soil moisture exceeds the set threshold, the module D0 outputs a low level;

3 small-plate digital output D0 can be directly connected with the single-chip microcomputer, and the high-low level is detected by the single-chip microcomputer, thereby detecting the soil moisture;

4 small board digital output DO can directly drive the store's relay module, buzzer module, etc., which can form a soil moisture alarm device;

5 small plate analog output AO can be connected with AD module, through AD conversion, you can get more accurate values of soil moisture;

Delivery list

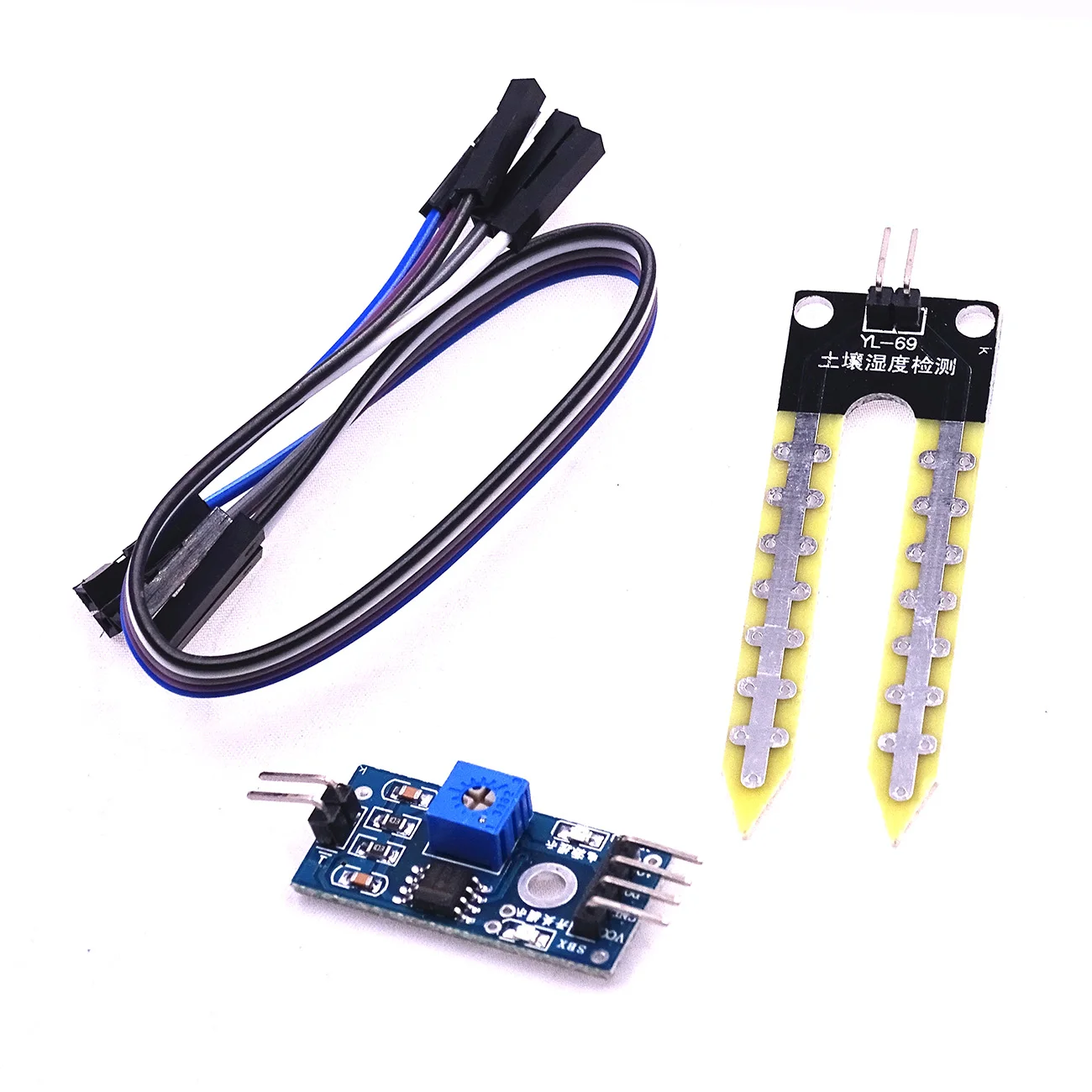

1 Set of soil moisture detection module finished board as shown in the figure (including test board and soil moisture probe)

2 20cm DuPont line, convenient for wiring;
