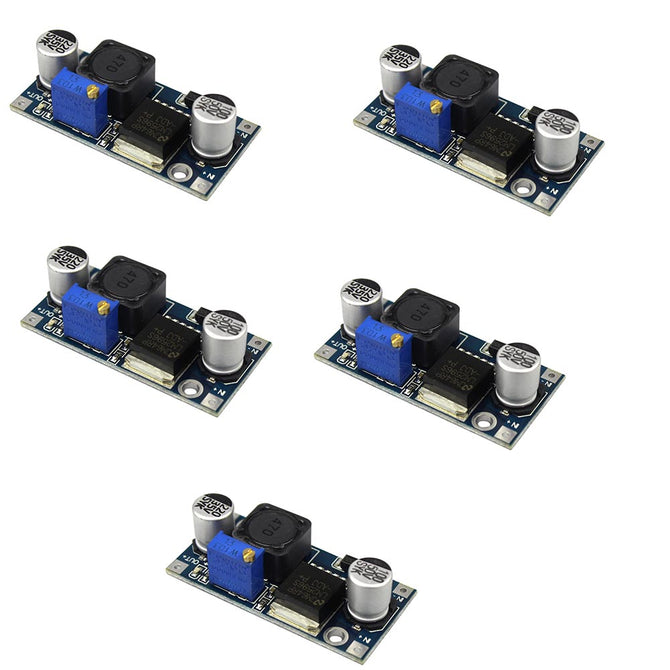

Smart Electronics lm2596 LM2596S DC-DC 3-40V Adjustable Step-down Power Supply Module Voltage Regulator 3A

Smart Electronics lm2596 LM2596S DC-DC 3-40V Adjustable Step-down Power Supply Module Voltage Regulator 3A

US$ 7.52 US$ 8.41

: In stock

: 622274

Module property:Non-isolation buckRectification mode:Non-synchronous rectifierInput voltage:3V-40VOutput voltage:1.3V-35VOutput current:Rated current is 2A,maximum 3A(Additional heatsink is required)Conversion efficiency:92%( highest )Switching frequency:65KHzOutput ripple:30mV( maximum )Load regulation:±0.5%Voltage regulation:± 2.5%Work temperature:-Minus 40 degrees - 85...
Module property:Non-isolation buckRectification mode:Non-synchronous rectifierInput voltage:3V-40VOutput voltage:1.3V-35VOutput current:Rated current is 2A,maximum 3A(Additional heatsink is required)Conversion efficiency:92%( highest )Switching frequency:65KHzOutput ripple:30mV( maximum )Load regulation:±0.5%Voltage regulation:± 2.5%Work temperature:-Minus 40 degrees - 85 degreesdimension:43mm*21mm*14mm(L*W*G)NOTE:This can't be used to step up Voltage
Color blue
Quantity 5 pieces
Material Metal, Plastic
English Manual / Spec No
Certification -
Packing List 5 X Step Down Module LM2596

Dimensions: 0.79 in x 0.79 in x 0.79 in (2.0 cm x 2.0 cm x 2.0 cm)
Weight: 1.59 oz (45 g)
